Use of Third-Party Drivers with Daisy-Chained
Luminaires
Source Four Mini LED luminaires can be controlled by third-party Class 2 or
Low Voltage Limited Energy (LVLE) drivers that provide a maximum of
48 VDC. To daisy-chain luminaires and still have independent channel func-
tionality, you must wire the first luminaire in the chain as described below.
(The RJ45 outputs on F-Drive natively support this wiring configuration.)
Configure the third-party drivers to a maximum of 350 mA.
Channel
1
(First luminaire)
2
(Second luminaire)
3
(Third luminaire)
4
(Fourth luminaire)

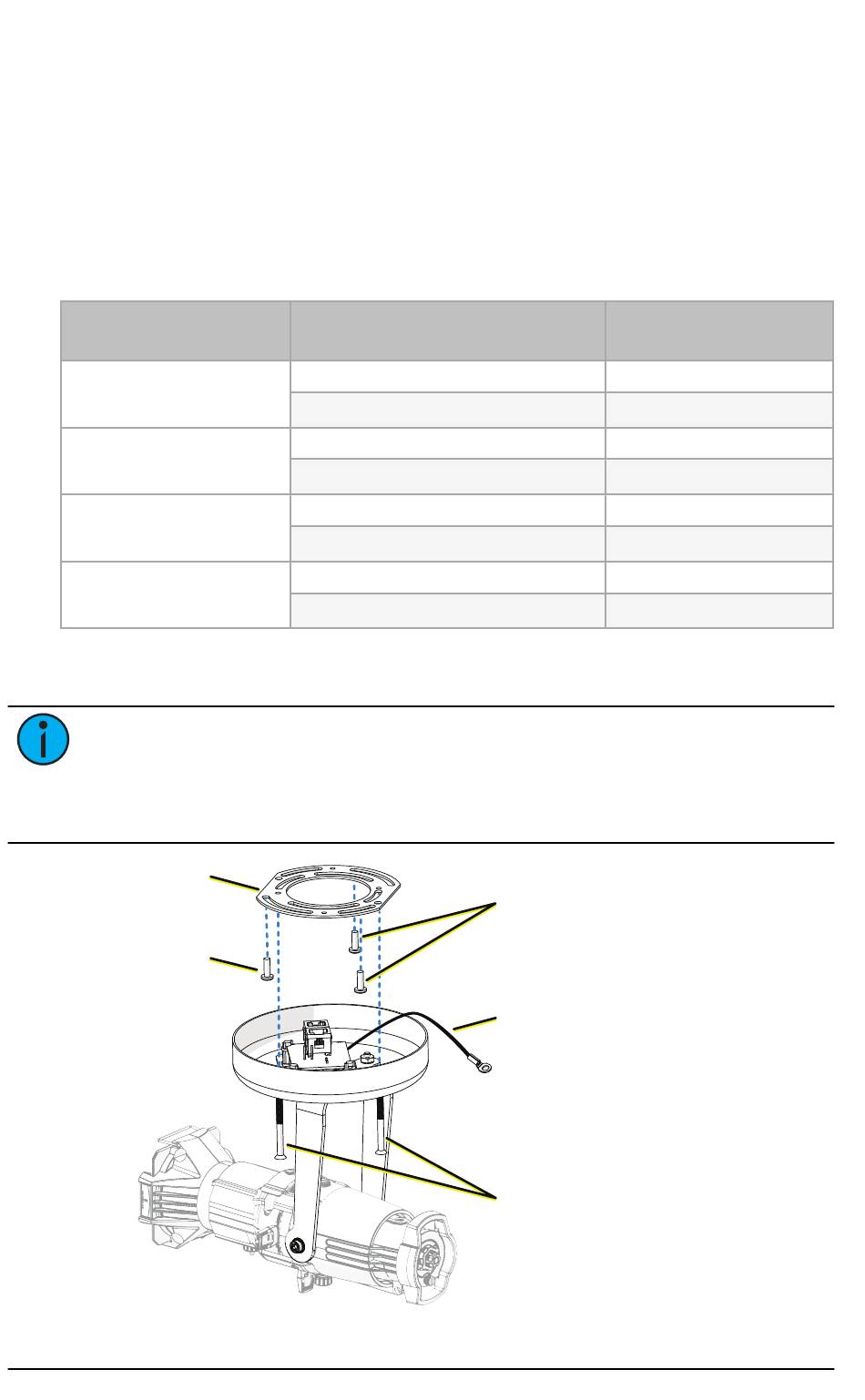

Install Canopy Luminaire

Note:
4-11/16 in back boxes, or on back boxes with round cover plates.
The canopy luminaire cannot be installed on 1-gang back boxes or
trim rings.
Mounting
plate
Mounting
plate bolt
6
Input Pins for First Luminaire in
Daisy-Chain
1
5
2
6
3
7
4
8
The canopy luminaire can be installed directly on 4 in and
Description
Channel 1 -
Channel 1 +
Channel 2 -
Channel 2 +
Channel 3 -
Channel 3 +
Channel 4 -
Channel 4 +
Mounting
plate bolts
Safety
braid
Canopy
bolts
