Eclipse EA500 Maintenance Manual page 288

TNG CONNECTION
BUILDING
FOR ACCEPTABLE PERFORMANCE
OTHER AIRCRAFT SHOULD BE >3X
DISTANCE FROM TEST SET. BUILDINGS
SHOULD BE AT OBLIQUE ANGLES
OCCUPYING <20° BEAMWIDTH.
EFFECTIVITY: ALL POST MB 500-31-016
EA500 Aircraft Maintenance Manual — 06-117751
HANDLE
CABLE TO
TEST SET
FLAT ANTENNA
IFR-6000 TEST
SET AND
ANTENNA.

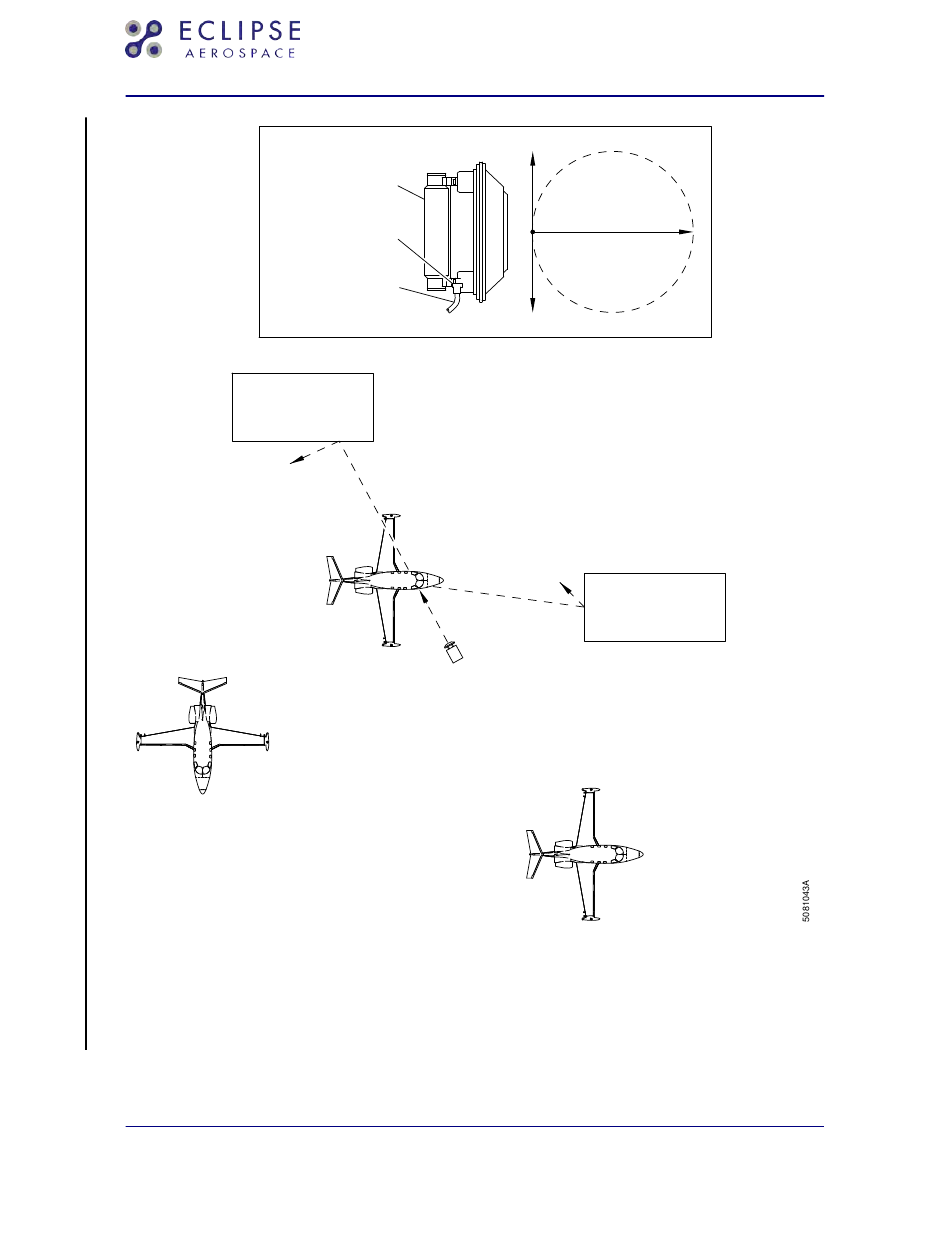

ADS–B - Adjustment/Test
Figure 502 (Sheet 1 of 1)
© 2020 Eclipse Aerospace, Inc.
Temporary Revision No. 34-21
ANTENNA
PATTERN
BEAMWIDTH
± 20° VERTICAL
± 25° HORIZONTAL
BUILDING
FOR OPTIMUM PERFORMANCE
BUILDINGS, VEHICLES, AND OTHER
AIRCRAFT SHOULD BE LOCATED AT
RIGHT ANGLES TO OR BEHIND THE
ANTENNA.
34-50-21
Page 508
Sep 30/20
