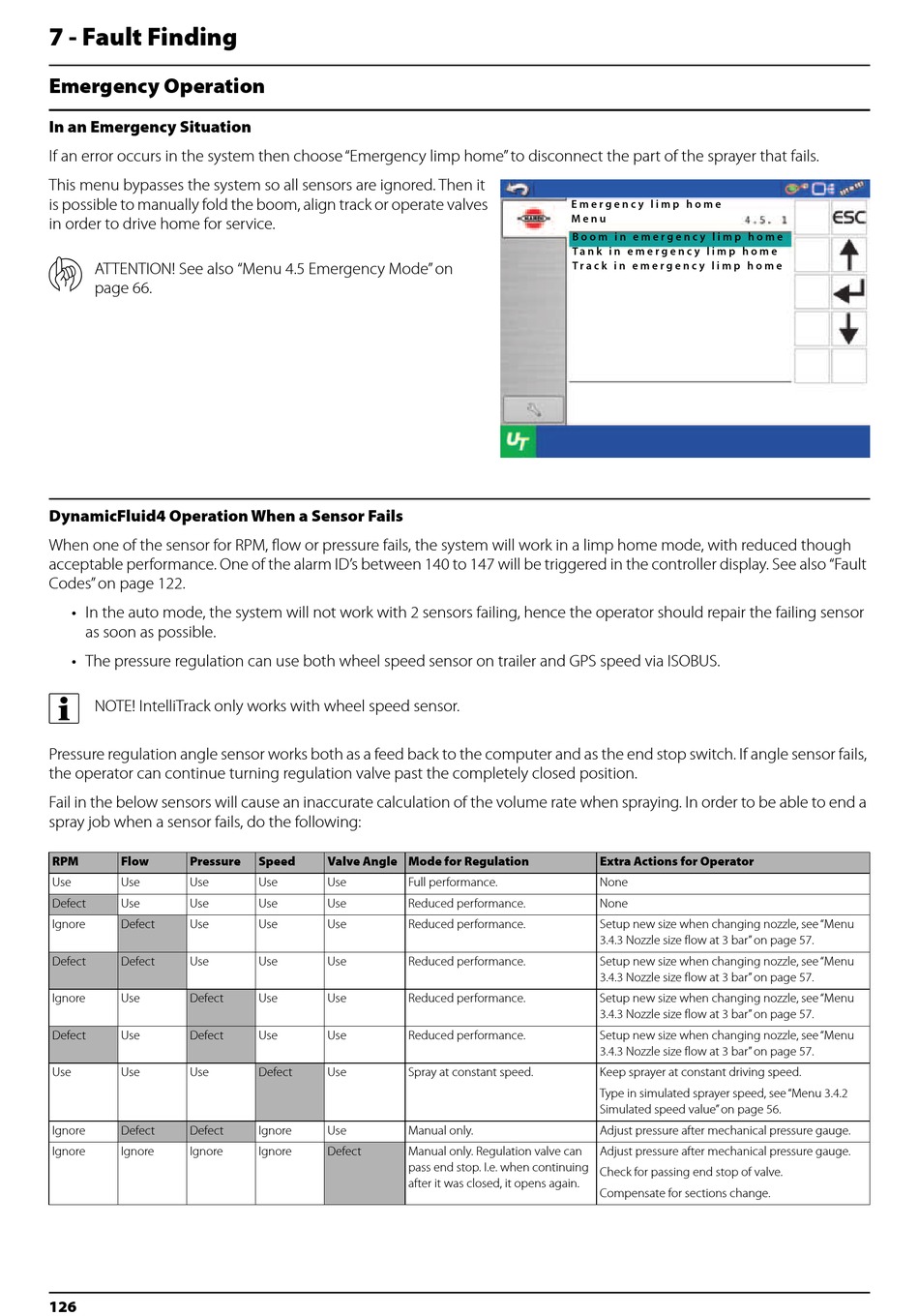

7 - Fault Finding
Emergency Operation
In an Emergency Situation
If an error occurs in the system then choose "Emergency limp home" to disconnect the part of the sprayer that fails.
This menu bypasses the system so all sensors are ignored. Then it
is possible to manually fold the boom, align track or operate valves
in order to drive home for service.
μ
ATTENTION! See also "Menu 4.5 Emergency Mode" on
page 66.
DynamicFluid4 Operation When a Sensor Fails
When one of the sensor for RPM, flow or pressure fails, the system will work in a limp home mode, with reduced though
acceptable performance. One of the alarm ID's between 140 to 147 will be triggered in the controller display. See also "Fault
Codes" on page 122.
• In the auto mode, the system will not work with 2 sensors failing, hence the operator should repair the failing sensor
as soon as possible.
• The pressure regulation can use both wheel speed sensor on trailer and GPS speed via ISOBUS.
÷
NOTE! IntelliTrack only works with wheel speed sensor.
Pressure regulation angle sensor works both as a feed back to the computer and as the end stop switch. If angle sensor fails,
the operator can continue turning regulation valve past the completely closed position.
Fail in the below sensors will cause an inaccurate calculation of the volume rate when spraying. In order to be able to end a
spray job when a sensor fails, do the following:
RPM
Flow
Pressure
Use
Use
Use
Defect
Use
Use
Ignore
Defect
Use
Defect
Defect
Use
Ignore
Use
Defect
Defect
Use
Defect
Use
Use
Use
Ignore
Defect
Defect
Ignore
Ignore
Ignore
126
Speed
Valve Angle Mode for Regulation
Use
Use
Full performance.
Use
Use
Reduced performance.
Use
Use
Reduced performance.
Use
Use
Reduced performance.
Use
Use
Reduced performance.
Use
Use
Reduced performance.
Defect
Use
Spray at constant speed.
Ignore
Use
Manual only.
Ignore
Defect
Manual only. Regulation valve can
pass end stop. I.e. when continuing
after it was closed, it opens again.
E m e r g e n c y l i m p h o m e
M e n u
B o o m i n e m e r g e n c y l i m p h o m e
T a n k i n e m e r g e n c y l i m p h o m e
T r a c k i n e m e r g e n c y l i m p h o m e
Extra Actions for Operator
None
None
Setup new size when changing nozzle, see "Menu
3.4.3 Nozzle size flow at 3 bar" on page 57.
Setup new size when changing nozzle, see "Menu
3.4.3 Nozzle size flow at 3 bar" on page 57.
Setup new size when changing nozzle, see "Menu
3.4.3 Nozzle size flow at 3 bar" on page 57.
Setup new size when changing nozzle, see "Menu
3.4.3 Nozzle size flow at 3 bar" on page 57.
Keep sprayer at constant driving speed.
Type in simulated sprayer speed, see "Menu 3.4.2
Simulated speed value" on page 56.
Adjust pressure after mechanical pressure gauge.
Adjust pressure after mechanical pressure gauge.
Check for passing end stop of valve.
Compensate for sections change.
