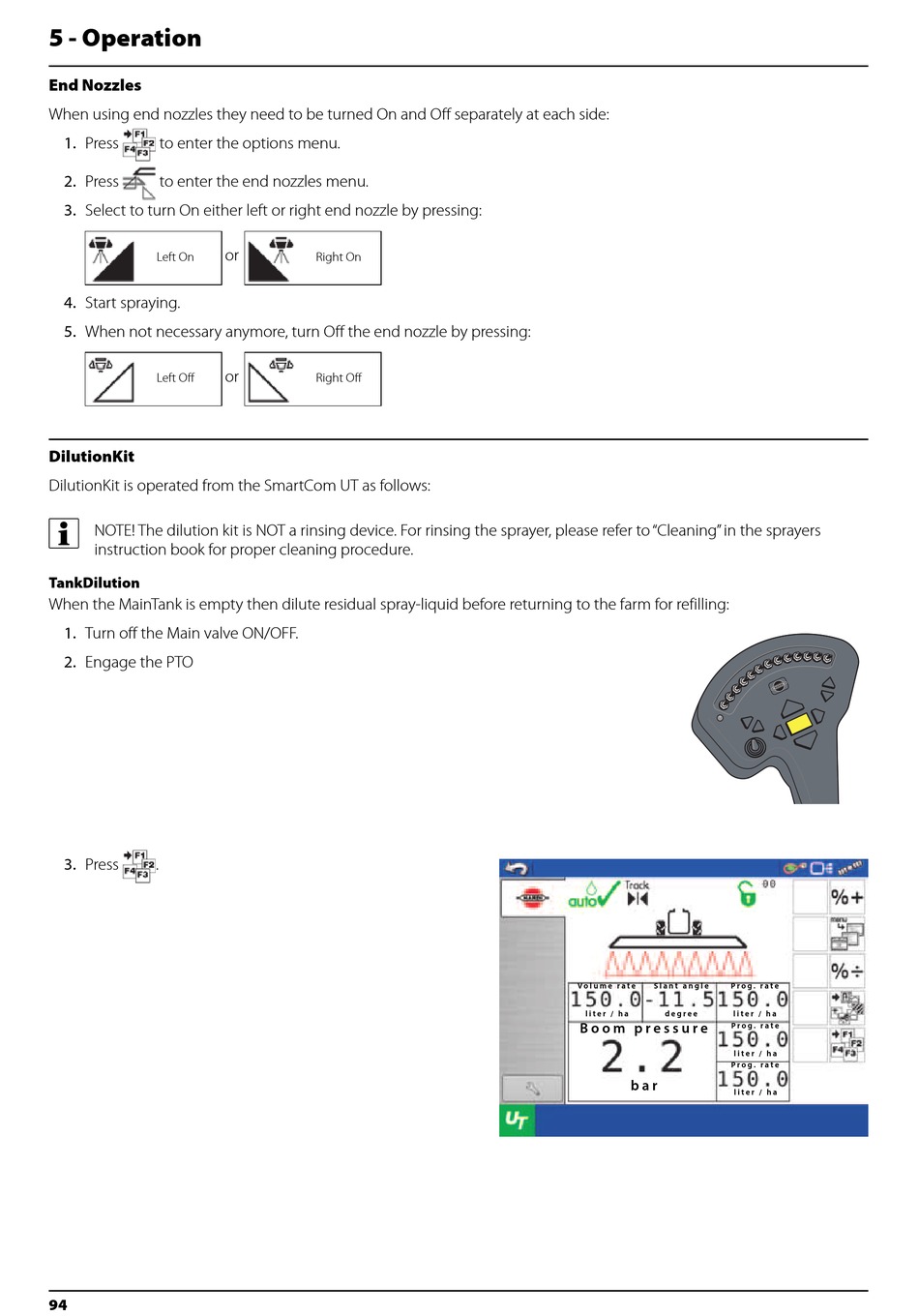

5 - Operation

End Nozzles

When using end nozzles they need to be turned On and Off separately at each side:
1. Press
to enter the options menu.
2. Press
to enter the end nozzles menu.
3. Select to turn On either left or right end nozzle by pressing:
Left On
4. Start spraying.
5. When not necessary anymore, turn Off the end nozzle by pressing:
Left Off

DilutionKit

DilutionKit is operated from the SmartCom UT as follows:
÷
NOTE! The dilution kit is NOT a rinsing device. For rinsing the sprayer, please refer to "Cleaning" in the sprayers
instruction book for proper cleaning procedure.
TankDilution
When the MainTank is empty then dilute residual spray-liquid before returning to the farm for refilling:
1. Turn off the Main valve ON/OFF.
2. Engage the PTO
3. Press
.
94
or
Right On
or
Right Off
V o l u m e r a t e S l a n t a n g l e P r o g . r a t e
l i t e r / h a d e g r e e l i t e r / h a
B o o m p r e s s u r e P r o g . r a t e
l i t e r / h a
P r o g . r a t e
b a r
l i t e r / h a
