Setbox - Hardi SMARTCOM ISOBUS UT SW A.2.2 Series Original Instruction Book

3 - Description

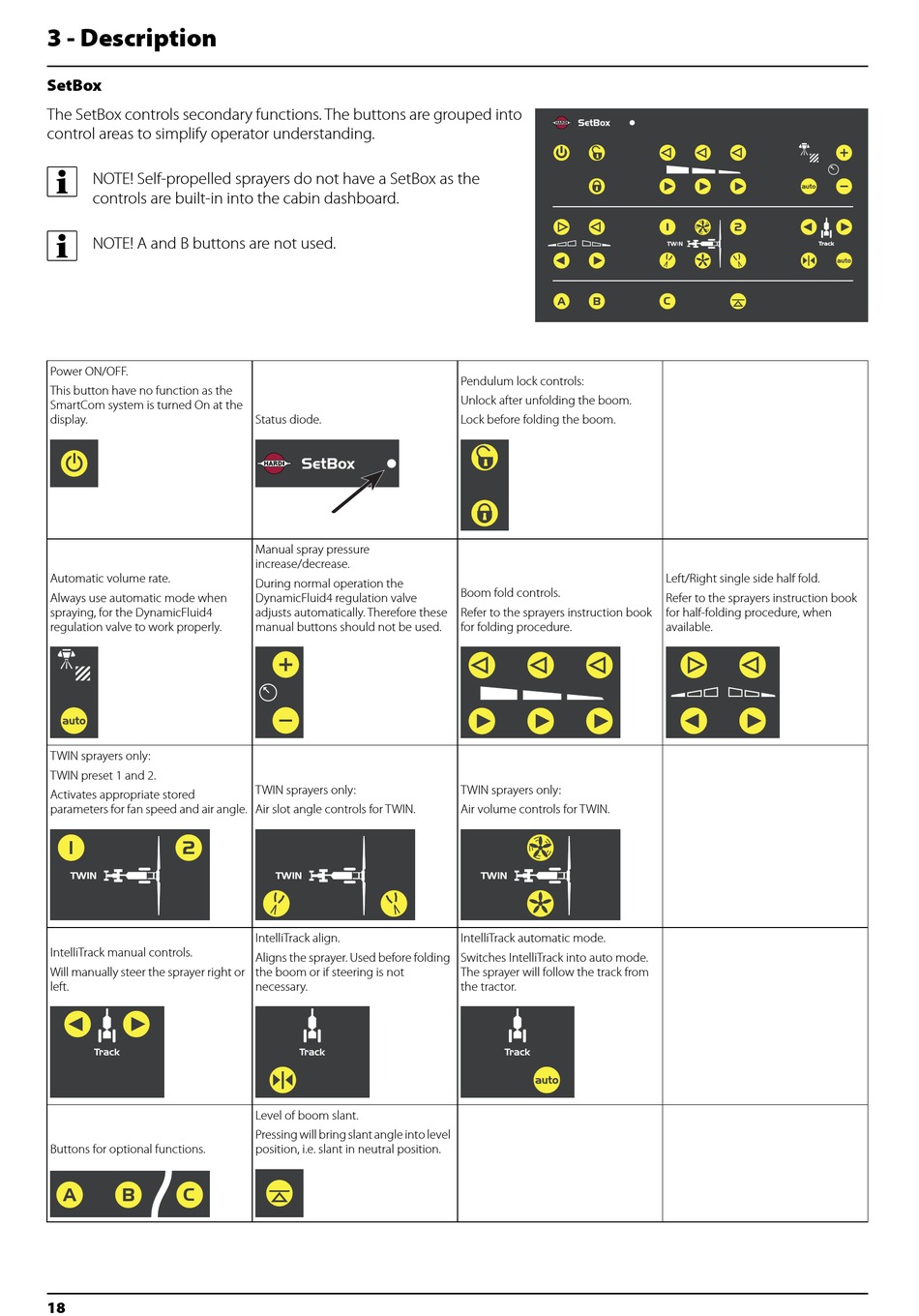

SetBox

The SetBox controls secondary functions. The buttons are grouped into
control areas to simplify operator understanding.
÷
NOTE! Self-propelled sprayers do not have a SetBox as the
controls are built-in into the cabin dashboard.
÷
NOTE! A and B buttons are not used.
Power ON/OFF.
This button have no function as the
SmartCom system is turned On at the
display.
Automatic volume rate.
Always use automatic mode when
spraying, for the DynamicFluid4
regulation valve to work properly.
TWIN sprayers only:
TWIN preset 1 and 2.
Activates appropriate stored
parameters for fan speed and air angle.
IntelliTrack manual controls.
Will manually steer the sprayer right or
left.
Track
Buttons for optional functions.
C
18
Status diode.
Manual spray pressure
increase/decrease.
During normal operation the
DynamicFluid4 regulation valve
adjusts automatically. Therefore these
manual buttons should not be used.
TWIN sprayers only:
Air slot angle controls for TWIN.
IntelliTrack align.
Aligns the sprayer. Used before folding
the boom or if steering is not
necessary.
Track
Level of boom slant.
Pressing will bring slant angle into level
position, i.e. slant in neutral position.
Pendulum lock controls:
Unlock after unfolding the boom.
Lock before folding the boom.
Boom fold controls.
Refer to the sprayers instruction book
for folding procedure.
TWIN sprayers only:
Air volume controls for TWIN.
IntelliTrack automatic mode.
Switches IntelliTrack into auto mode.
The sprayer will follow the track from
the tractor.
Track
Track
C
Left/Right single side half fold.
Refer to the sprayers instruction book
for half-folding procedure, when
available.
