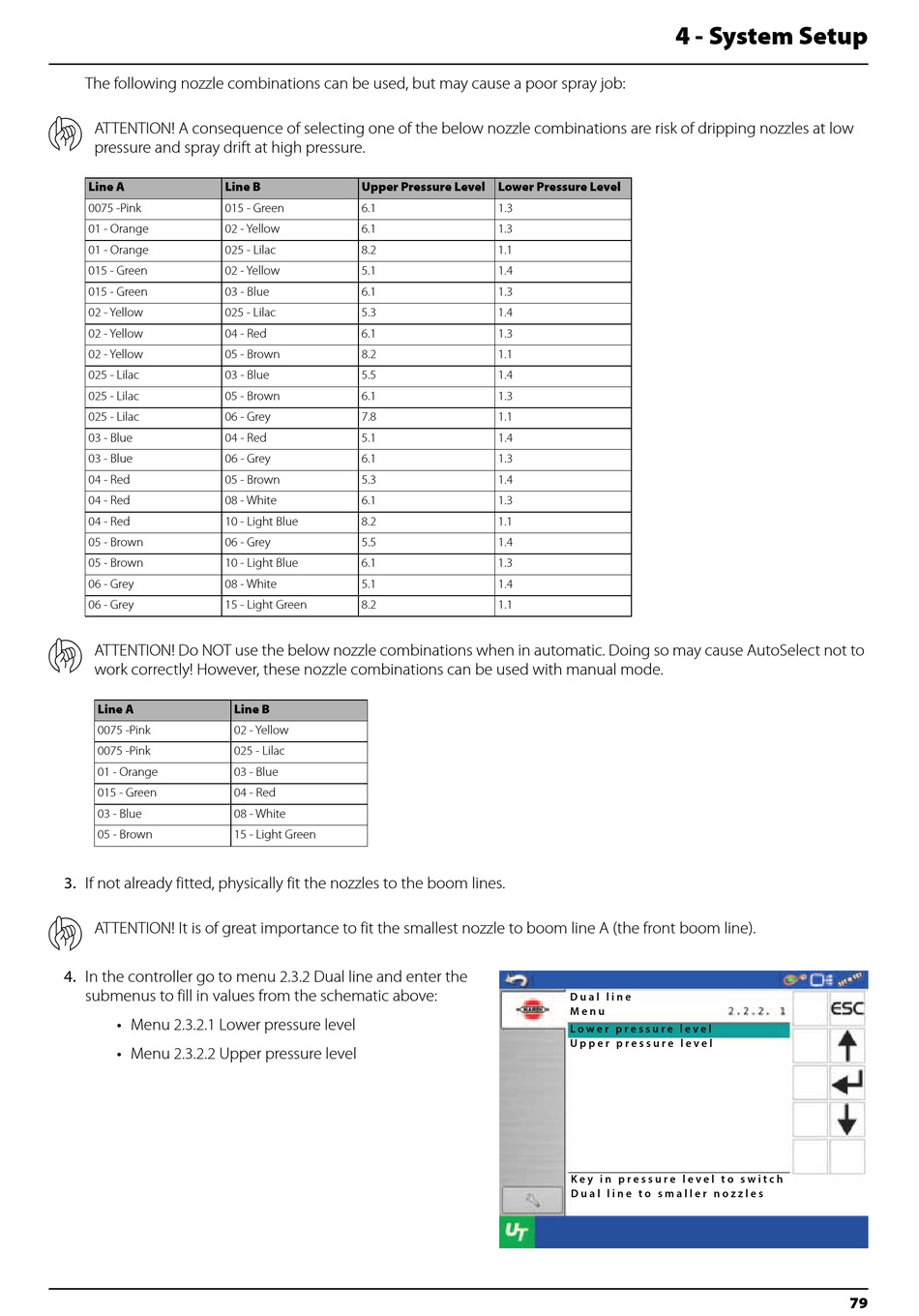

Hardi SMARTCOM ISOBUS UT SW A.2.2 Series Original Instruction Book page 79

The following nozzle combinations can be used, but may cause a poor spray job:
μ
ATTENTION! A consequence of selecting one of the below nozzle combinations are risk of dripping nozzles at low
pressure and spray drift at high pressure.
Line A
0075 -Pink
01 - Orange
01 - Orange
015 - Green
015 - Green
02 - Yellow
02 - Yellow
02 - Yellow
025 - Lilac
025 - Lilac
025 - Lilac
03 - Blue
03 - Blue
04 - Red
04 - Red
04 - Red
05 - Brown
05 - Brown
06 - Grey
06 - Grey
μ
ATTENTION! Do NOT use the below nozzle combinations when in automatic. Doing so may cause AutoSelect not to
work correctly! However, these nozzle combinations can be used with manual mode.
Line A
0075 -Pink
0075 -Pink
01 - Orange
015 - Green
03 - Blue
05 - Brown
3. If not already fitted, physically fit the nozzles to the boom lines.
μ
ATTENTION! It is of great importance to fit the smallest nozzle to boom line A (the front boom line).
4. In the controller go to menu 2.3.2 Dual line and enter the
submenus to fill in values from the schematic above:
• Menu 2.3.2.1 Lower pressure level
• Menu 2.3.2.2 Upper pressure level
Line B Upper Pressure Level Lower Pressure Level
015 - Green 6.1
02 - Yellow 6.1
025 - Lilac 8.2
02 - Yellow 5.1
03 - Blue 6.1
025 - Lilac 5.3
04 - Red 6.1
05 - Brown 8.2
03 - Blue 5.5
05 - Brown 6.1
06 - Grey 7.8
04 - Red 5.1
06 - Grey 6.1
05 - Brown 5.3
08 - White 6.1
10 - Light Blue 8.2
06 - Grey 5.5
10 - Light Blue 6.1
08 - White 5.1
15 - Light Green 8.2
Line B
02 - Yellow
025 - Lilac
03 - Blue
04 - Red
08 - White
15 - Light Green
1.3
1.3
1.1
1.4
1.3
1.4
1.3
1.1
1.4
1.3
1.1
1.4
1.3
1.4
1.3
1.1
1.4
1.3
1.4
1.1
D u a l l i n e
M e n u
L o w e r p r e s s u r e l e v e l
U p p e r p r e s s u r e l e v e l
K e y i n p r e s s u r e l e v e l t o s w i t c h
D u a l l i n e t o s m a l l e r n o z z l e s
4 - System Setup
