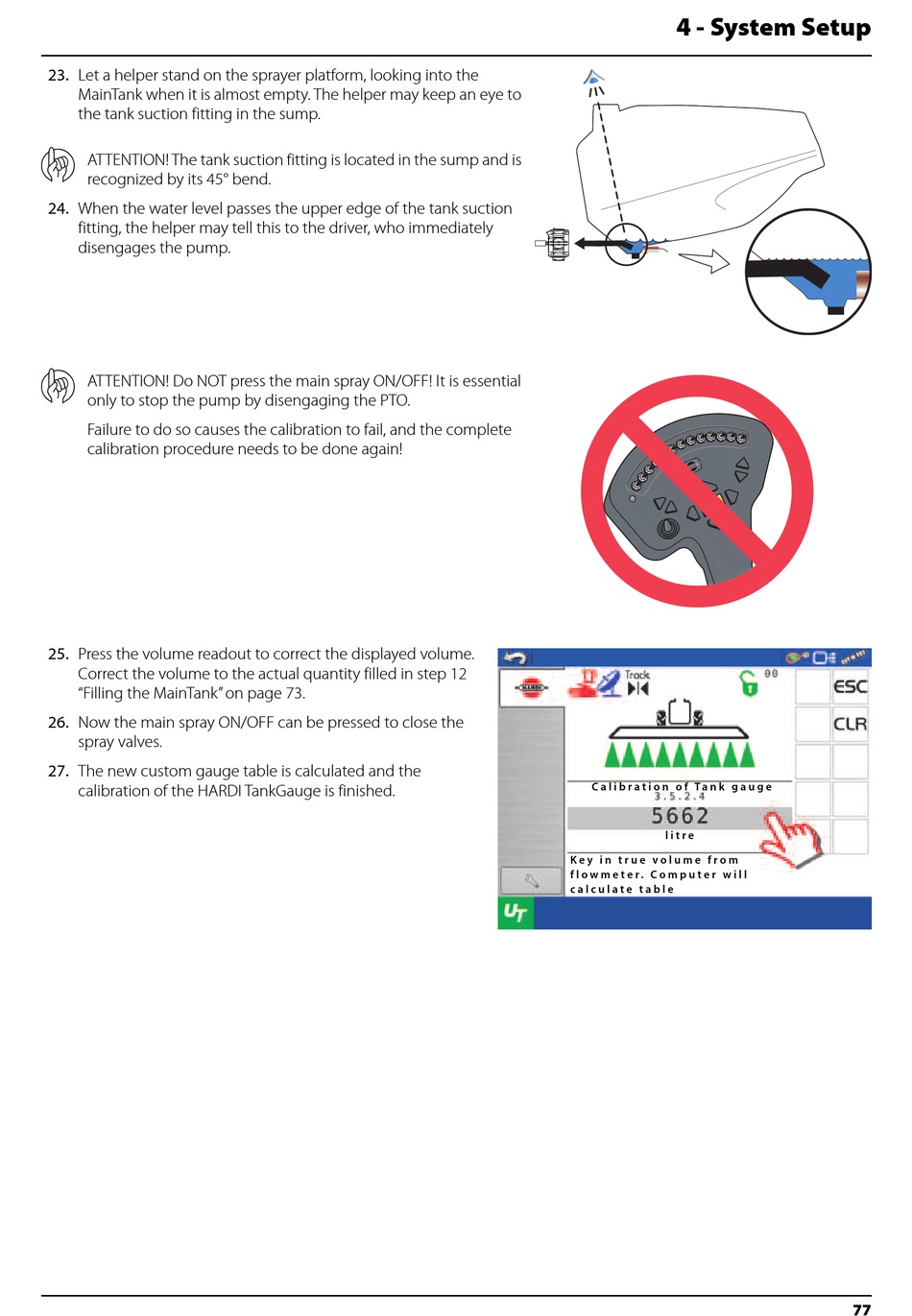

23. Let a helper stand on the sprayer platform, looking into the
MainTank when it is almost empty. The helper may keep an eye to
the tank suction fitting in the sump.
μ
ATTENTION! The tank suction fitting is located in the sump and is
recognized by its 45° bend.
24. When the water level passes the upper edge of the tank suction
fitting, the helper may tell this to the driver, who immediately
disengages the pump.
μ
ATTENTION! Do NOT press the main spray ON/OFF! It is essential
only to stop the pump by disengaging the PTO.
Failure to do so causes the calibration to fail, and the complete
calibration procedure needs to be done again!
25. Press the volume readout to correct the displayed volume.
Correct the volume to the actual quantity filled in step 12
"Filling the MainTank" on page 73.
26. Now the main spray ON/OFF can be pressed to close the
spray valves.
27. The new custom gauge table is calculated and the
calibration of the HARDI TankGauge is finished.
4 - System Setup
C a l i b r a t i o n o f T a n k g a u g e
l i t r e
K e y i n t r u e v o l u m e f r o m
f l o w m e t e r . C o m p u t e r w i l l
c a l c u l a t e t a b l e
