Menus

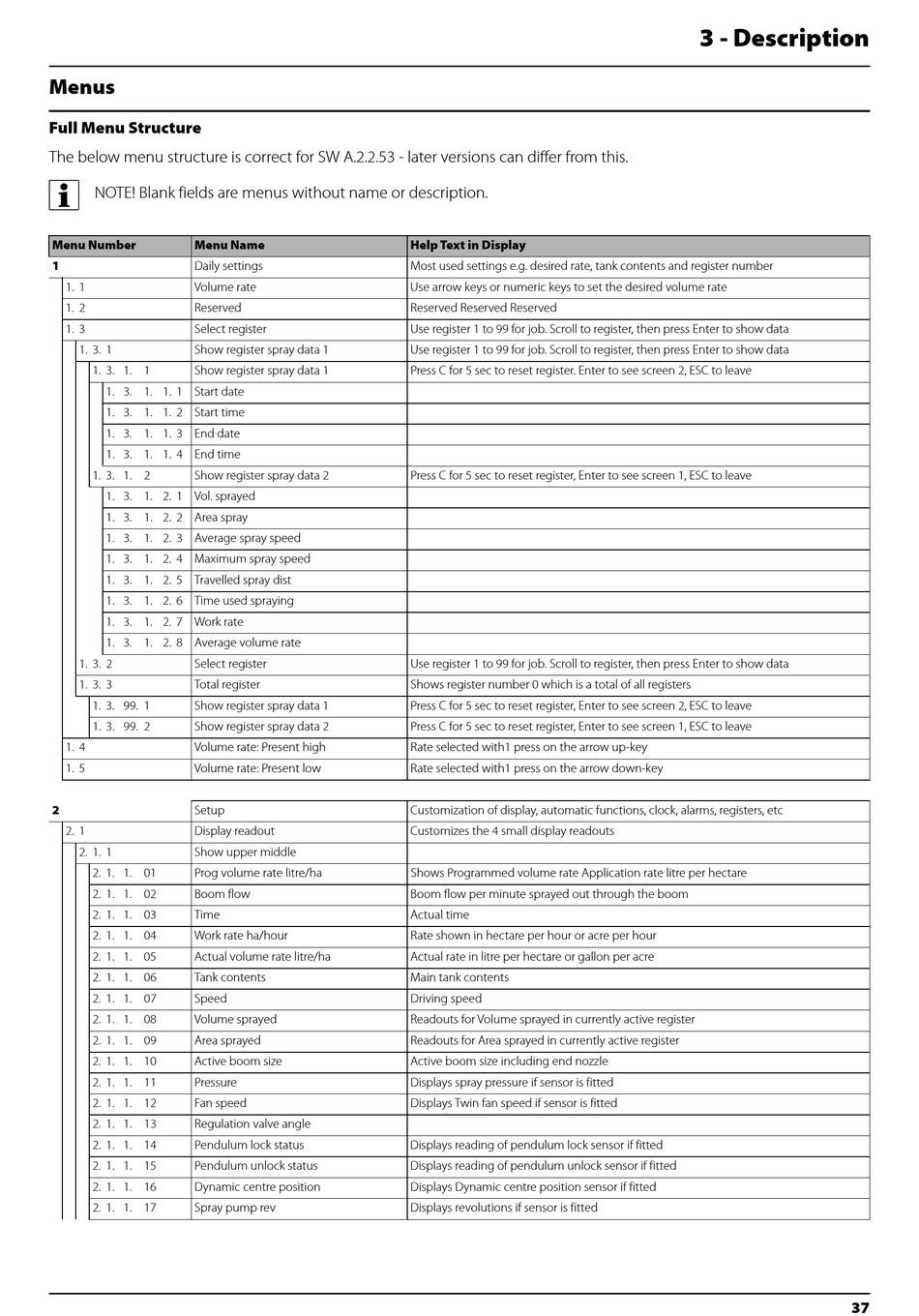

Full Menu Structure

The below menu structure is correct for SW A.2.2.53 - later versions can differ from this.
÷
NOTE! Blank fields are menus without name or description.
Menu Number Menu Name
1 Daily settings
1. 1 Volume rate
1. 2 Reserved
1. 3 Select register
1. 3. 1 Show register spray data 1
1. 3. 1. 1 Show register spray data 1
1. 3. 1. 1. 1 Start date
1. 3. 1. 1. 2 Start time
1. 3. 1. 1. 3 End date
1. 3. 1. 1. 4 End time
1. 3. 1. 2 Show register spray data 2
1. 3. 1. 2. 1 Vol. sprayed
1. 3. 1. 2. 2 Area spray
1. 3. 1. 2. 3 Average spray speed
1. 3. 1. 2. 4 Maximum spray speed
1. 3. 1. 2. 5 Travelled spray dist
1. 3. 1. 2. 6 Time used spraying
1. 3. 1. 2. 7 Work rate
1. 3. 1. 2. 8 Average volume rate
1. 3. 2 Select register
1. 3. 3 Total register
1. 3. 99. 1 Show register spray data 1
1. 3. 99. 2 Show register spray data 2
1. 4 Volume rate: Present high
1. 5 Volume rate: Present low
2 Setup
2. 1 Display readout
2. 1. 1 Show upper middle
2. 1. 1. 01 Prog volume rate litre/ha
2. 1. 1. 02 Boom flow
2. 1. 1. 03 Time
2. 1. 1. 04 Work rate ha/hour
2. 1. 1. 05 Actual volume rate litre/ha
2. 1. 1. 06 Tank contents
2. 1. 1. 07 Speed
2. 1. 1. 08 Volume sprayed
2. 1. 1. 09 Area sprayed
2. 1. 1. 10 Active boom size
2. 1. 1. 11 Pressure
2. 1. 1. 12 Fan speed
2. 1. 1. 13 Regulation valve angle
2. 1. 1. 14 Pendulum lock status
2. 1. 1. 15 Pendulum unlock status
2. 1. 1. 16 Dynamic centre position
2. 1. 1. 17 Spray pump rev
Help Text in Display
Most used settings e.g. desired rate, tank contents and register number
Use arrow keys or numeric keys to set the desired volume rate
Reserved Reserved Reserved
Use register 1 to 99 for job. Scroll to register, then press Enter to show data
Use register 1 to 99 for job. Scroll to register, then press Enter to show data
Press C for 5 sec to reset register. Enter to see screen 2, ESC to leave
Press C for 5 sec to reset register, Enter to see screen 1, ESC to leave
Use register 1 to 99 for job. Scroll to register, then press Enter to show data
Shows register number 0 which is a total of all registers
Press C for 5 sec to reset register, Enter to see screen 2, ESC to leave
Press C for 5 sec to reset register, Enter to see screen 1, ESC to leave
Rate selected with1 press on the arrow up-key
Rate selected with1 press on the arrow down-key
Customization of display, automatic functions, clock, alarms, registers, etc
Customizes the 4 small display readouts
Shows Programmed volume rate Application rate litre per hectare
Boom flow per minute sprayed out through the boom
Actual time
Rate shown in hectare per hour or acre per hour
Actual rate in litre per hectare or gallon per acre
Main tank contents
Driving speed
Readouts for Volume sprayed in currently active register
Readouts for Area sprayed in currently active register
Active boom size including end nozzle
Displays spray pressure if sensor is fitted
Displays Twin fan speed if sensor is fitted
Displays reading of pendulum lock sensor if fitted
Displays reading of pendulum unlock sensor if fitted
Displays Dynamic centre position sensor if fitted
Displays revolutions if sensor is fitted
