3 - Description

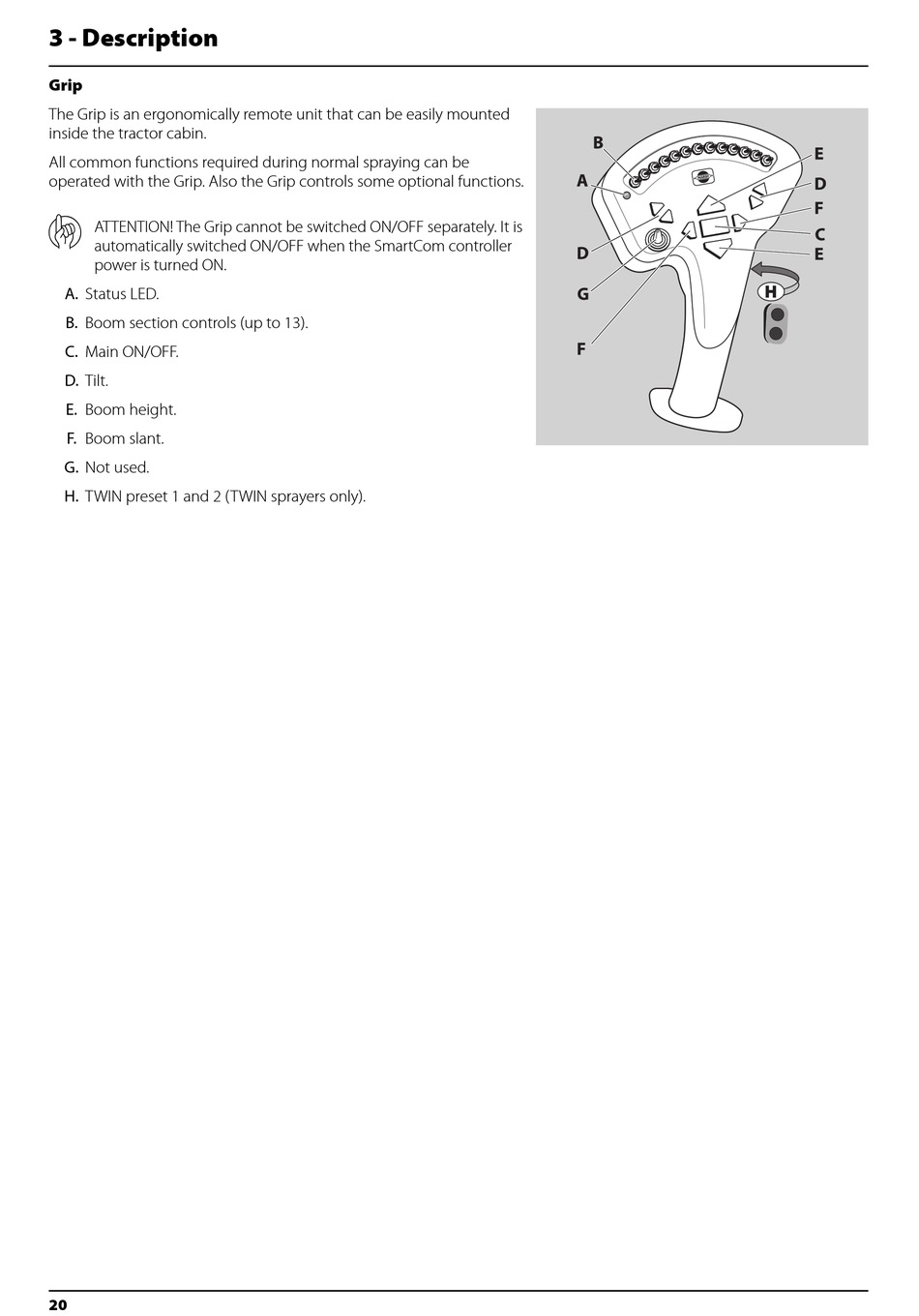

Grip

The Grip is an ergonomically remote unit that can be easily mounted
inside the tractor cabin.
All common functions required during normal spraying can be
operated with the Grip. Also the Grip controls some optional functions.
μ
ATTENTION! The Grip cannot be switched ON/OFF separately. It is
automatically switched ON/OFF when the SmartCom controller
power is turned ON.
A. Status LED.
B. Boom section controls (up to 13).
C. Main ON/OFF.
D. Tilt.
E. Boom height.
F. Boom slant.
G. Not used.
H. TWIN preset 1 and 2 (TWIN sprayers only).
