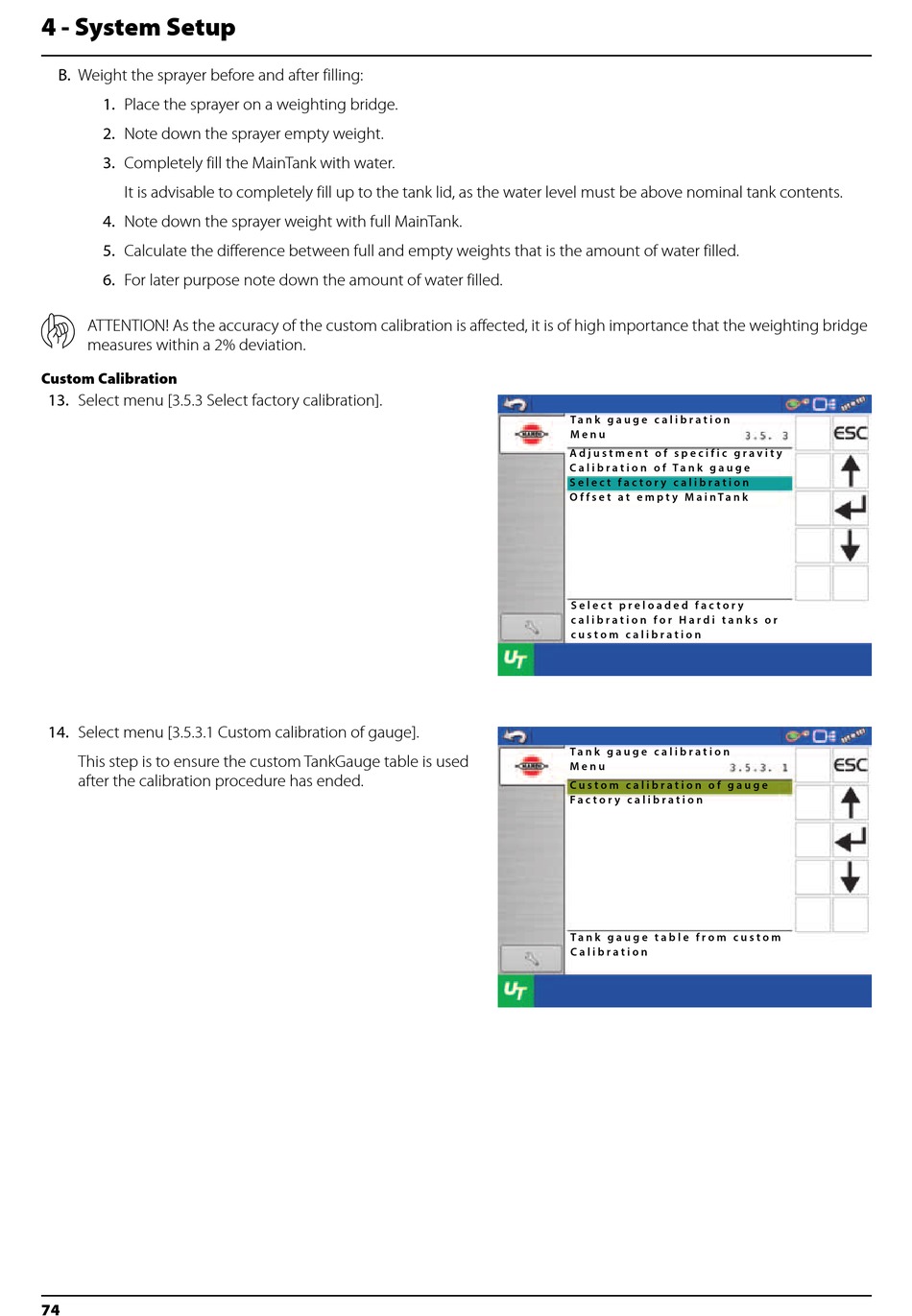

4 - System Setup
B. Weight the sprayer before and after filling:
1. Place the sprayer on a weighting bridge.
2. Note down the sprayer empty weight.
3. Completely fill the MainTank with water.
It is advisable to completely fill up to the tank lid, as the water level must be above nominal tank contents.
4. Note down the sprayer weight with full MainTank.
5. Calculate the difference between full and empty weights that is the amount of water filled.
6. For later purpose note down the amount of water filled.
μ
ATTENTION! As the accuracy of the custom calibration is affected, it is of high importance that the weighting bridge
measures within a 2% deviation.
Custom Calibration
13. Select menu [3.5.3 Select factory calibration].
14. Select menu [3.5.3.1 Custom calibration of gauge].
This step is to ensure the custom TankGauge table is used
after the calibration procedure has ended.
74
T a n k g a u g e c a l i b r a t i o n
M e n u
A d j u s t m e n t o f s p e c i f i c g r a v i t y
C a l i b r a t i o n o f T a n k g a u g e
S e l e c t f a c t o r y c a l i b r a t i o n
O f f s e t a t e m p t y M a i n T a n k
S e l e c t p r e l o a d e d f a c t o r y
c a l i b r a t i o n f o r H a r d i t a n k s o r
c u s t o m c a l i b r a t i o n
T a n k g a u g e c a l i b r a t i o n
M e n u
C u s t o m c a l i b r a t i o n o f g a u g e
F a c t o r y c a l i b r a t i o n
T a n k g a u g e t a b l e f r o m c u s t o m
C a l i b r a t i o n
