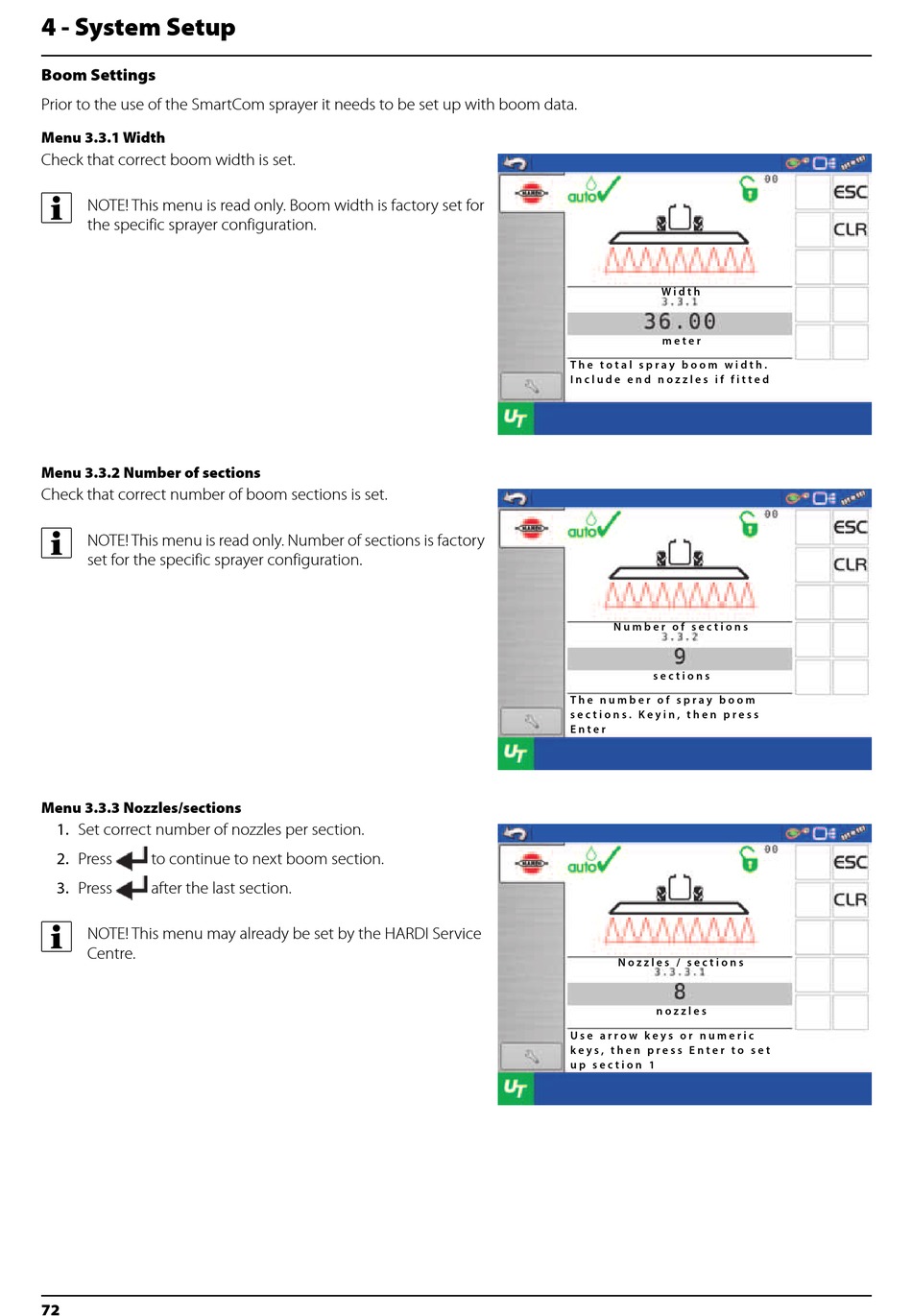

4 - System Setup

Boom Settings

Prior to the use of the SmartCom sprayer it needs to be set up with boom data.
Menu 3.3.1 Width
Check that correct boom width is set.
÷
NOTE! This menu is read only. Boom width is factory set for
the specific sprayer configuration.
Menu 3.3.2 Number of sections
Check that correct number of boom sections is set.
÷
NOTE! This menu is read only. Number of sections is factory
set for the specific sprayer configuration.
Menu 3.3.3 Nozzles/sections
1. Set correct number of nozzles per section.
2. Press
to continue to next boom section.
3. Press
after the last section.
÷
NOTE! This menu may already be set by the HARDI Service
Centre.
72
W i d t h
m e t e r
T h e t o t a l s p r a y b o o m w i d t h .
I n c l u d e e n d n o z z l e s i f f i t t e d
N u m b e r o f s e c t i o n s
s e c t i o n s
T h e n u m b e r o f s p r a y b o o m
s e c t i o n s . K e y i n , t h e n p r e s s
E n t e r
N o z z l e s / s e c t i o n s
n o z z l e s
U s e a r r o w k e y s o r n u m e r i c
k e y s , t h e n p r e s s E n t e r t o s e t
u p s e c t i o n 1
