Mouse Port

007-4263-001
The Silicon Graphics 230 Visual Workstation uses a standard PS/2 mouse port, as shown
in Figure A-2.
3
5
1
2
6
4

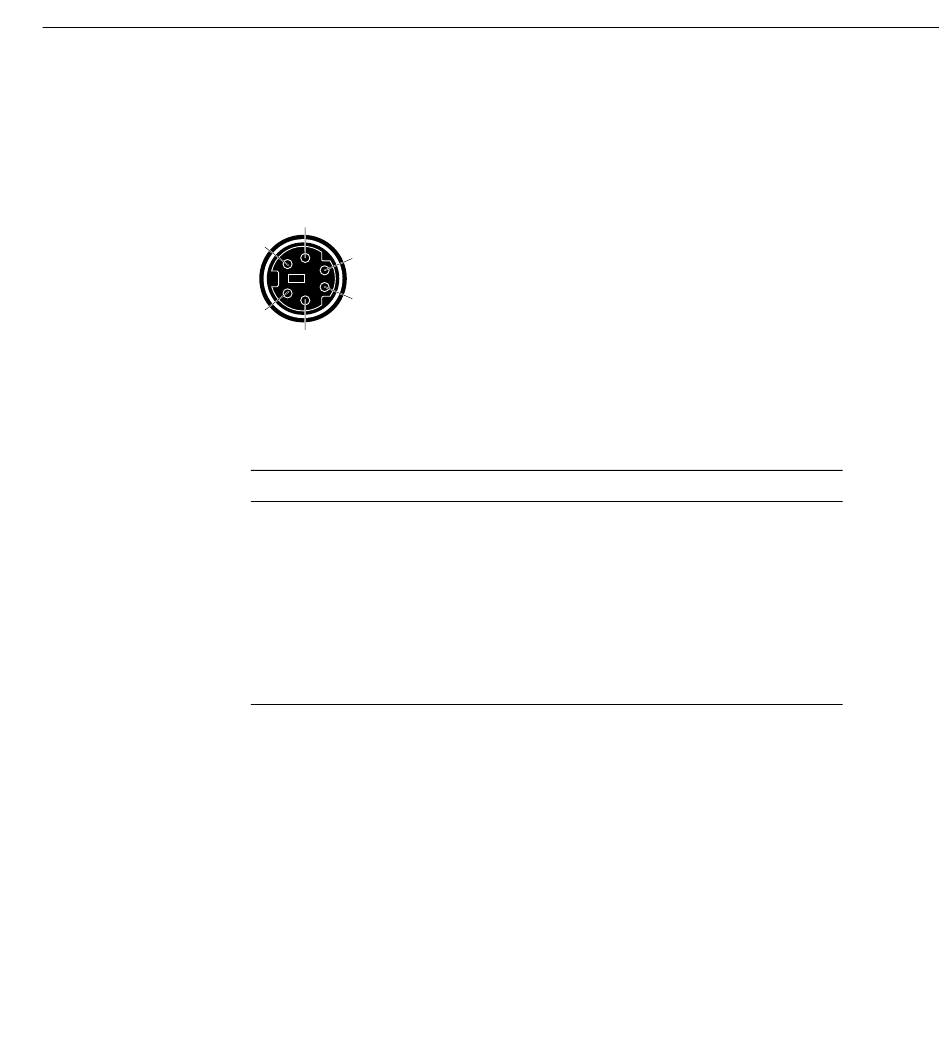

Figure A-2 Mouse Port Pinout
Table A-2 shows the cable pinout assignments for the mouse port.
Table A-2 Mouse Port Pinout
Pin Assignment
1 Mouse Data
2 (Reserved)
3 Ground
4 Mouse Power (+5V)
5 Mouse Clock
6 (Reserved)
