2: Installation of Customer Replaceable Components
52
3. Remove the locking loop from its storage slot by pressing the two hooks towards
each other and pushing the loop out of the chassis. Figure 2-29 illustrates the
procedure.
1
2
2

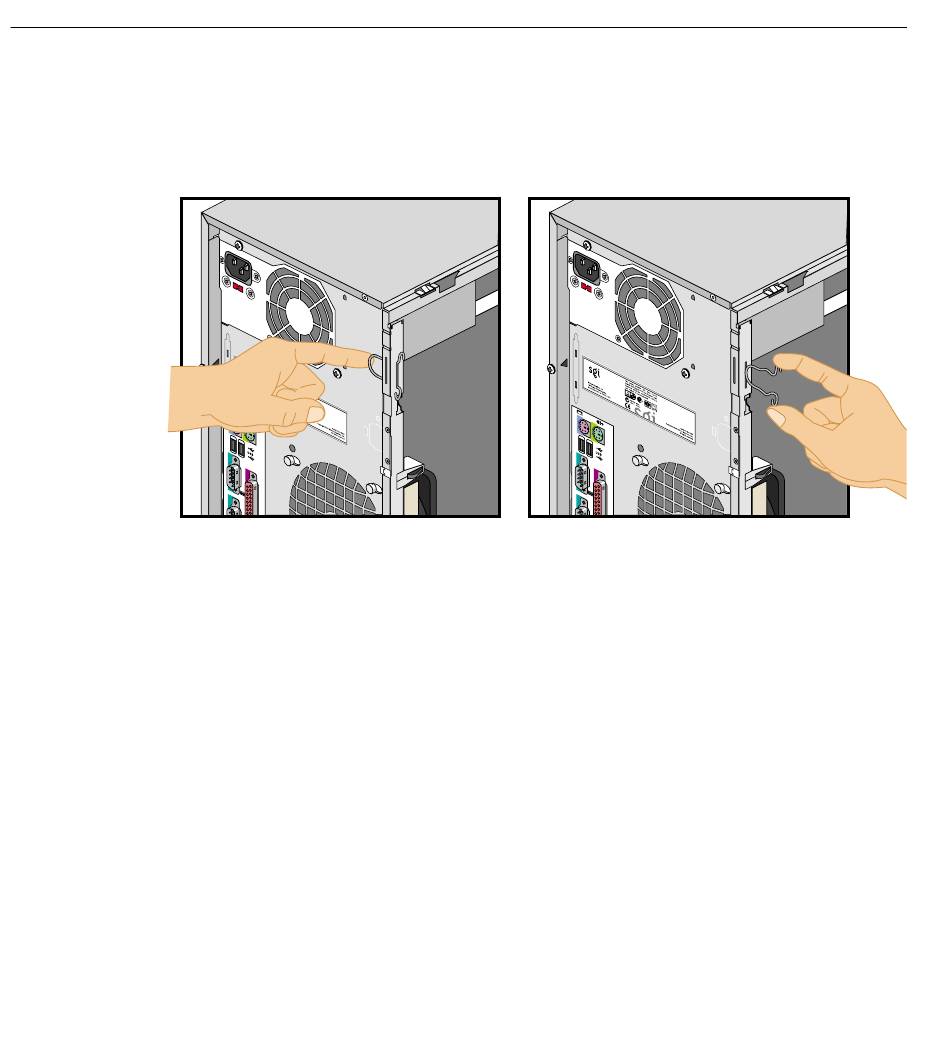

Removing Locking Hook from its Storage Slot
Figure 2-29
4. Locate the slot facing the rear of the chassis. See Figure 2-28 for the location of the
slot.
1
2
2
