1: System Setup
10
2. Connect the keyboard and mouse to the system as shown in Figure 1-7.
3. Connect the Ethernet cable to the system as shown in Figure 1-7. The built-in
Ethernet port is designed for use with 10-Base-T or 100-Base-TX Ethernet networks
and will automatically switch to the proper speed.

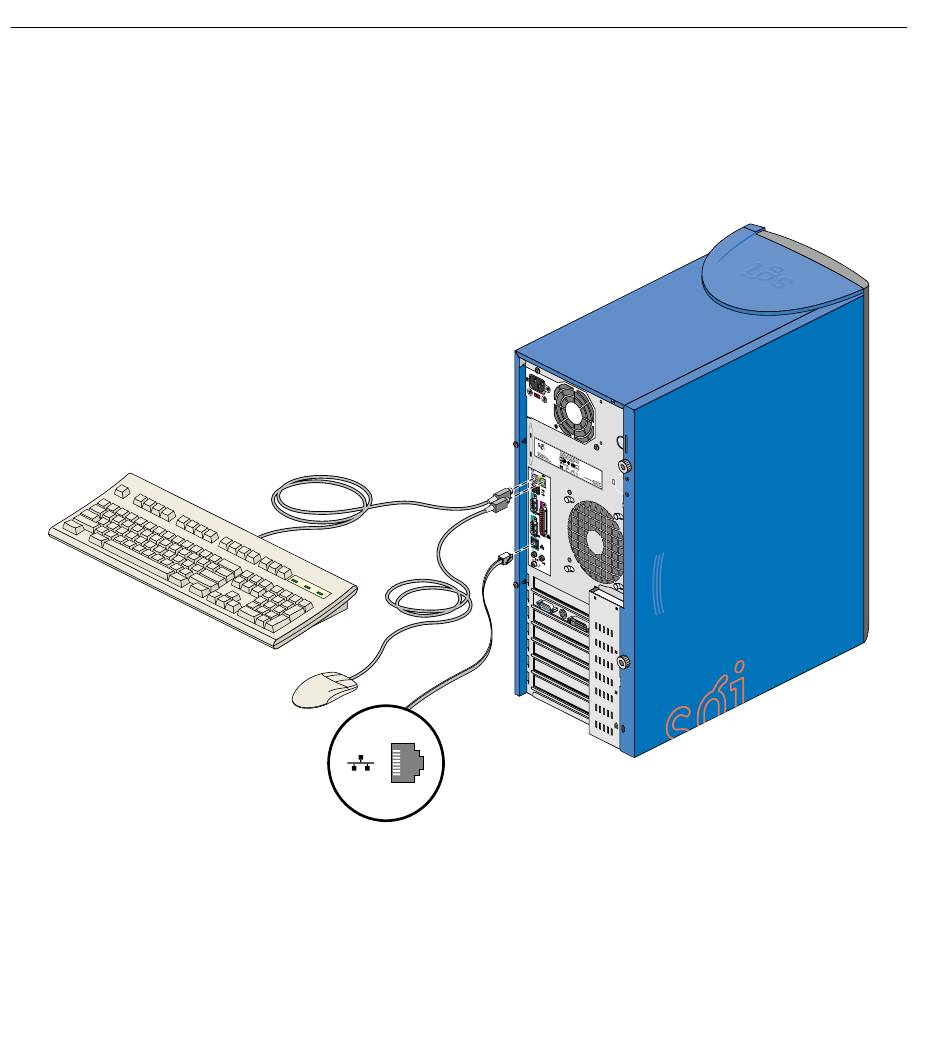

Connecting Keyboard, Mouse, and Ethernet Cable
Figure 1-7
1
2
2
1
007-4263-001
