1: System Setup

External Structure

2
This section describes the external features of the system housing (the front bezel and the
rear panel).
• Front Bezel
As illustrated in Figure 1-1, the floppy drive and up to three 5.25-inch devices are
accessible from the front panel. The top 5.25-inch drive bay is occupied by a
CD-ROM drive. The power switch, the reset button, and the floppy disk eject button
are also located on the front bezel.
5.25" drive bays
Floppy drive
Power button
Reset button

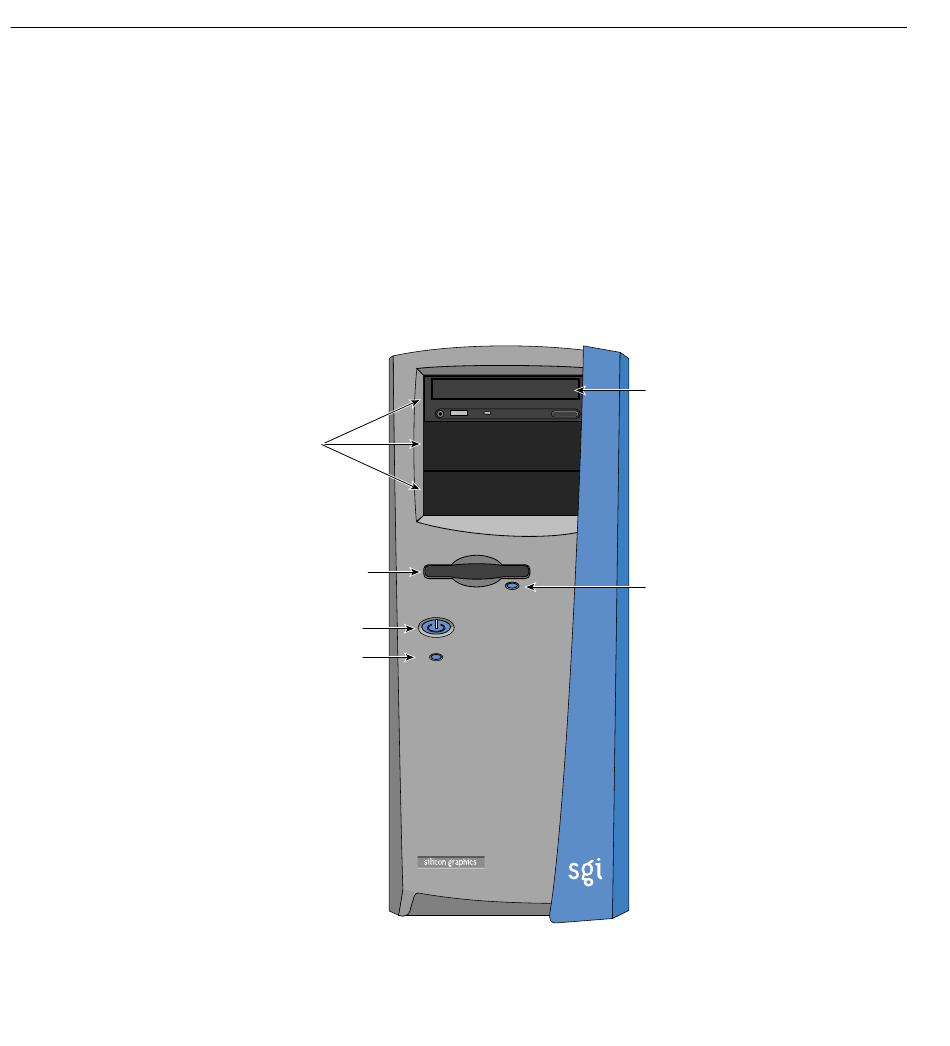

Figure 1-1 Front Bezel
CD-ROM drive
Floppy disk
eject button
