A: Connector Pinouts

Keyboard Port

112
The Silicon Graphics 230 Visual Workstation uses a standard PS/2 keyboard port, as
shown in Figure A-1.
3
5
1
2
6
4

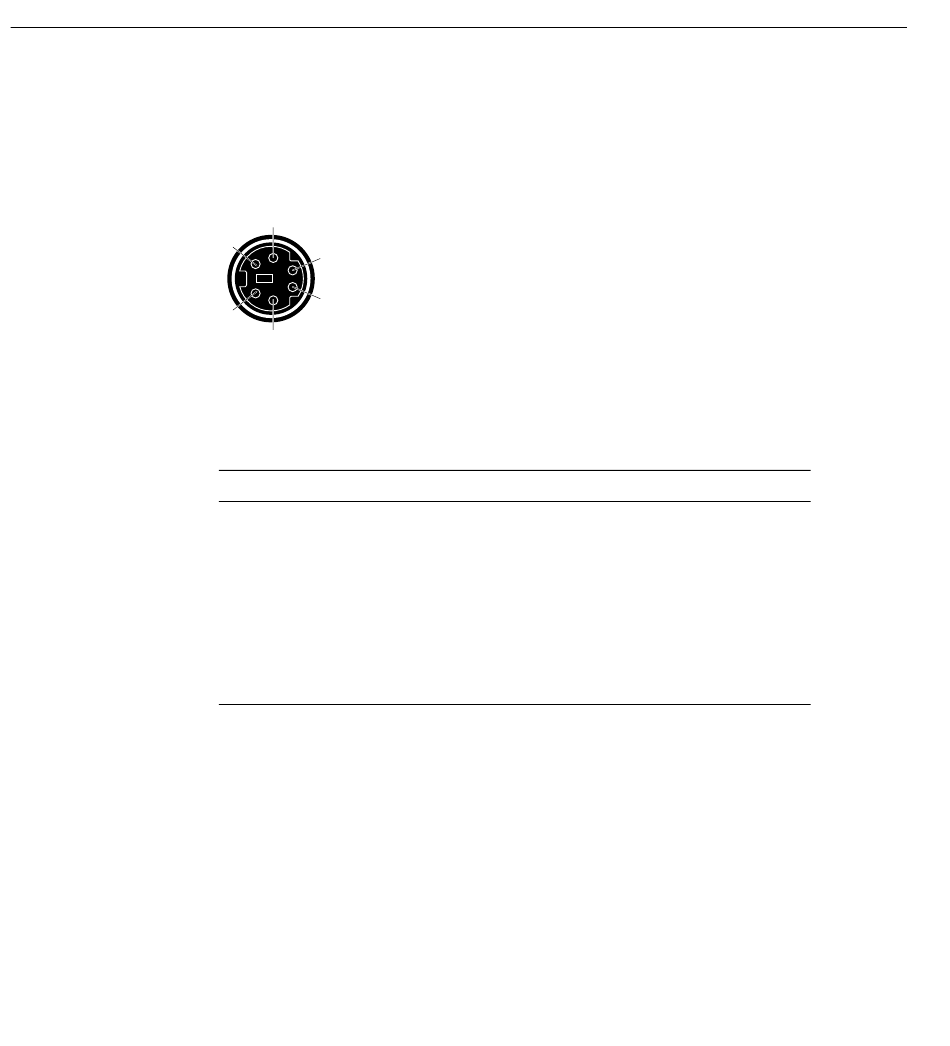

Figure A-1 Keyboard Port Pinout
Table A-1 shows the cable pinout assignments for the keyboard port.
Table A-1 Keyboard Port Pinout
Pin Assignment
1 Keyboard Data
2 (Reserved)
3 Ground
4 Keyboard Power (+5V)
5 Keyboard Clock
6 (Reserved)
