Figure 2-33 Sliding Side Panel Into Place - Silicon Graphics 230 User Manual

2: Installation of Customer Replaceable Components
1
2
2
1
56
• Slide the side panel towards the front of the chassis until it fits into place. The
procedure is illustrated in Figure 2-33.
• Tighten the two thumbscrews on the back of the case.

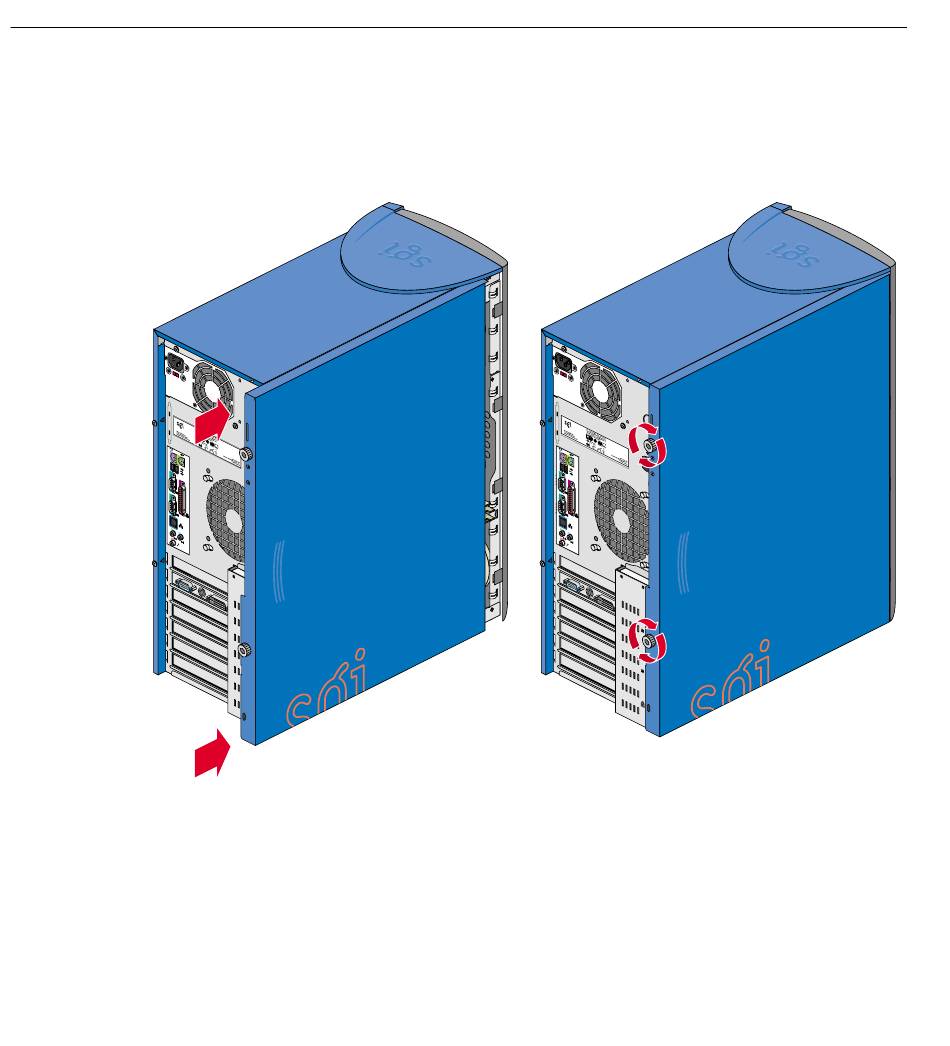

Figure 2-33 Sliding Side Panel into Place
3. To connect your system to external devices, refer to "Connecting External Devices"
on page 9.
4. To turn on the system, press the power button on the front panel. See Figure 1-1 on
page 2 for the location of the power button.
