Removing a Memory Module
Reconfiguring the System
007-4263-001
To remove a DIMM, press the holding clips on both sides of the socket outward to release
the DIMM, as shown in Figure 3-6.
Holding
clip

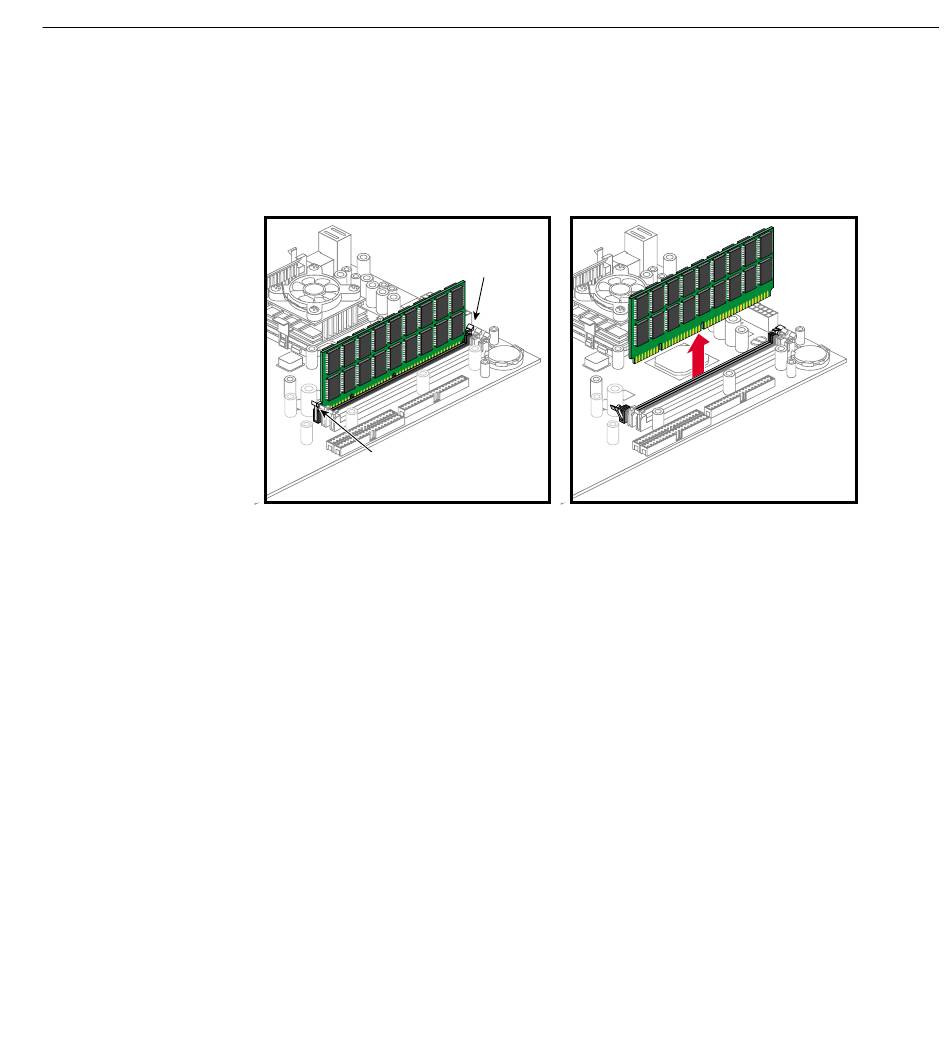

Figure 3-6 Removing a DIMM
The system automatically detects the amount of memory installed. Run Setup to view the
new value for total system memory and make a note of it.
Holding
clip
System Component Installation
71
