3: System Board
Removing a CPU
68

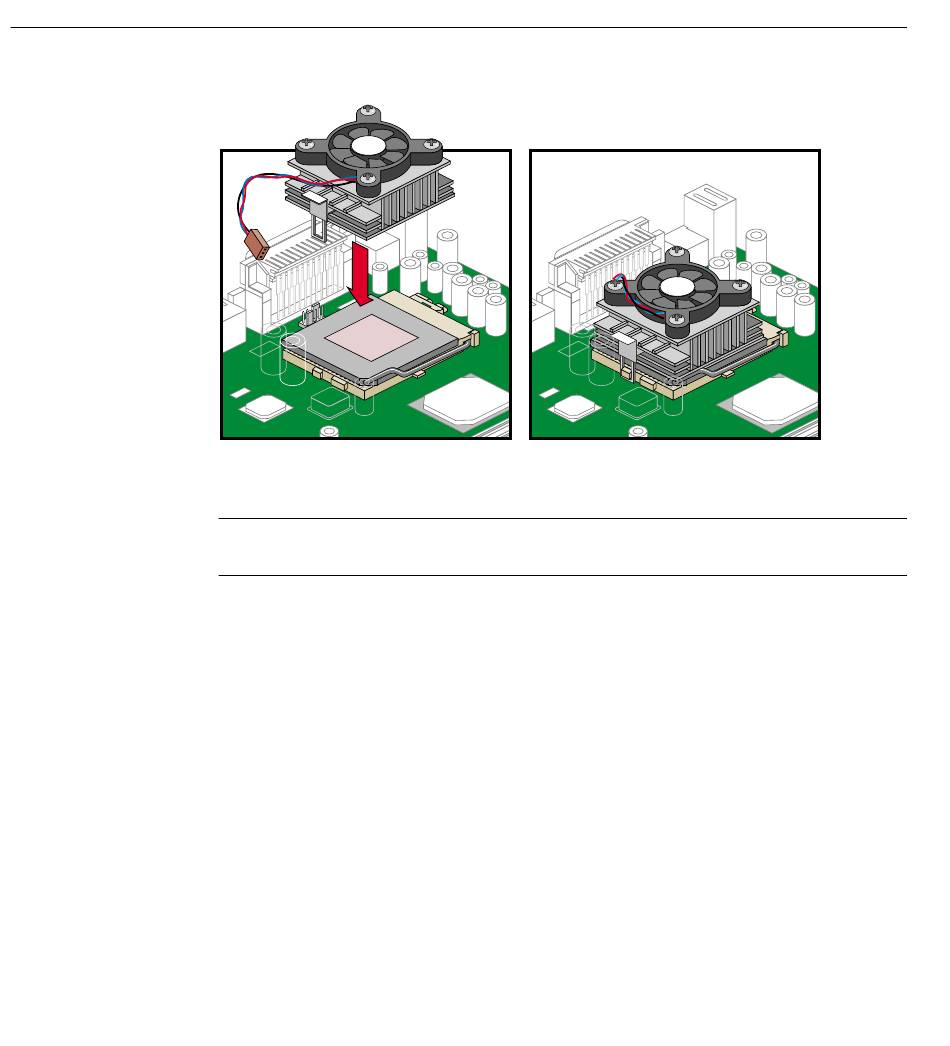

Figure 3-4 Attaching Fan/Heatsink to CPU
Caution: The heatsink becomes very hot when the system is on. NEVER touch the
heatsink with any metal or with your hands.
Follow these steps to remove a CPU:
1. Disconnect the 3-pin and 2-pin fan/heatsink cables from the system board.
2. Unhook one side of the fan/heatsink metal bracket and gently lift it before
removing the other side.
3. Gently push the socket lever down to release the lever and then pull it up.
4. Remove the CPU.
007-4263-001
