2: Installation of Customer Replaceable Components
42

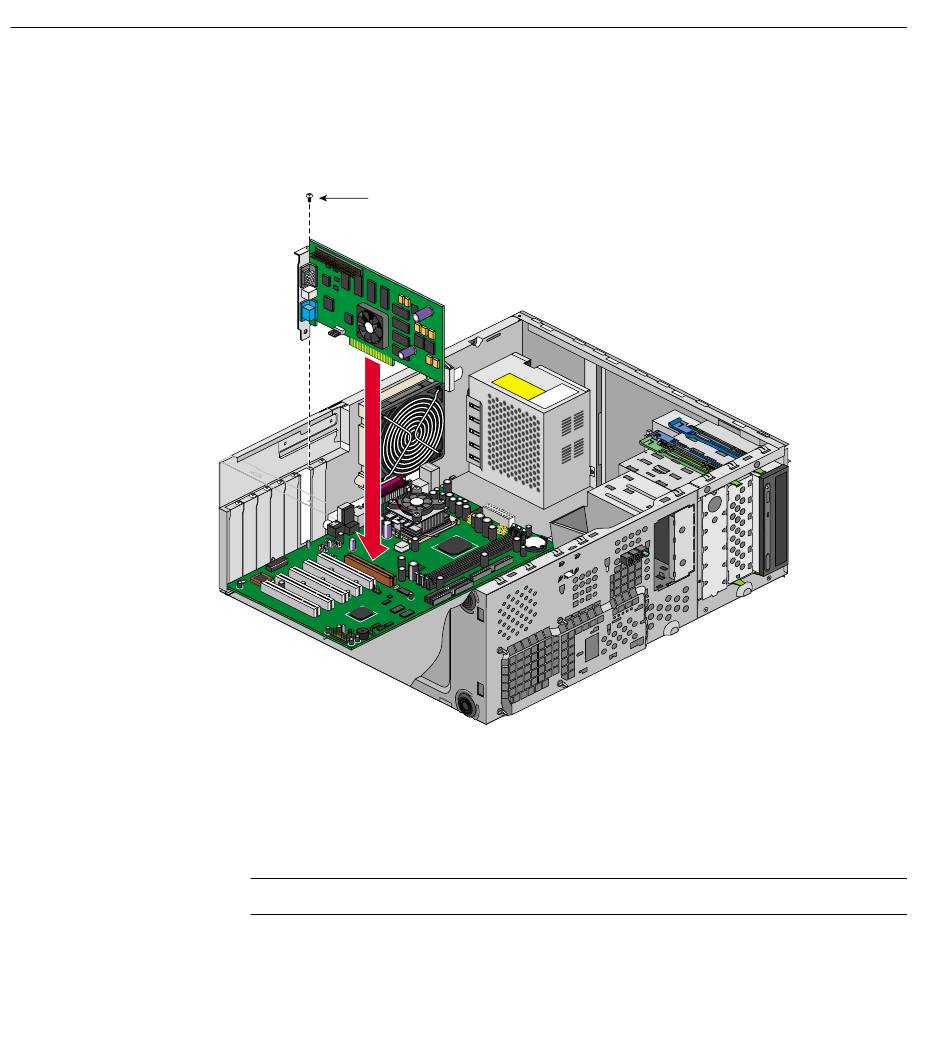

3. Insert the expansion card into its slot by pushing the card into the connector until it
is properly seated. Figure 2-20 illustrates the procedure.
4. Tighten the retaining screw, as shown in Figure 2-20.
Retaining screw
Installing Expansion Card
Figure 2-20
5. Replace the side panel as shown in "Post-installation Instructions" on page 54.
6. When the system is turned on, the BIOS automatically detects and assigns resources
to the new device.
Note: The BIOS detects and configures only Plug and Play expansion cards.
