Replacing I/O Panel Gasket
007-4263-001
The following instructions describe how to remove the I/O panel gasket:
1.
Remove the system board as described in the previous section, "Replacing System
Board" on page 43.
2. The system should still be resting on its right side.
3. Locate the three notched fingers at the bottom of the I/O panel gasket, as shown in
Figure 2-26.
4. To remove the I/O panel gasket, lift one notched finger at a time out of its slot.
5. Once all three notched fingers have been lifted out of their slots, the I/O panel
gasket slides out of its housing and can be removed from the chassis.
Notched fingers

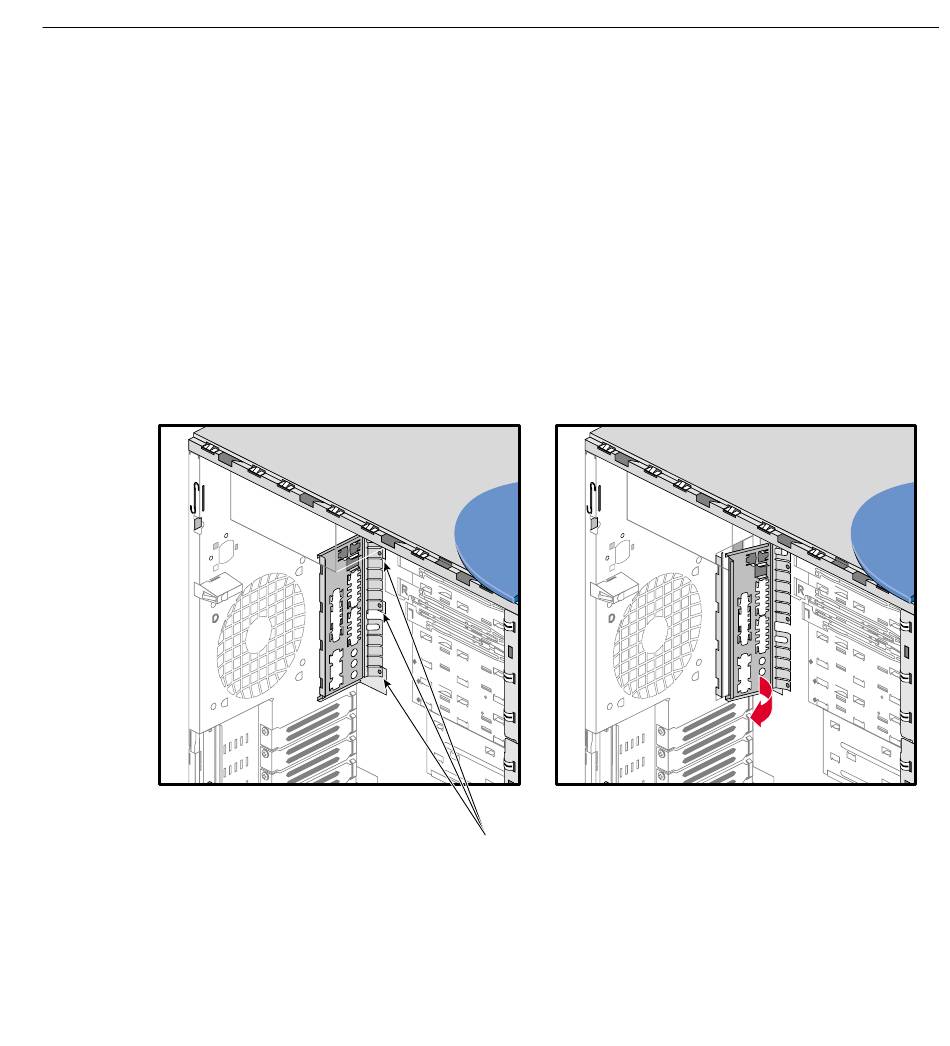

Figure 2-26
Removing I/O Panel Gasket
Replacing I/O Panel Gasket
