007-4263-001
Standoff hook
Standoff hook

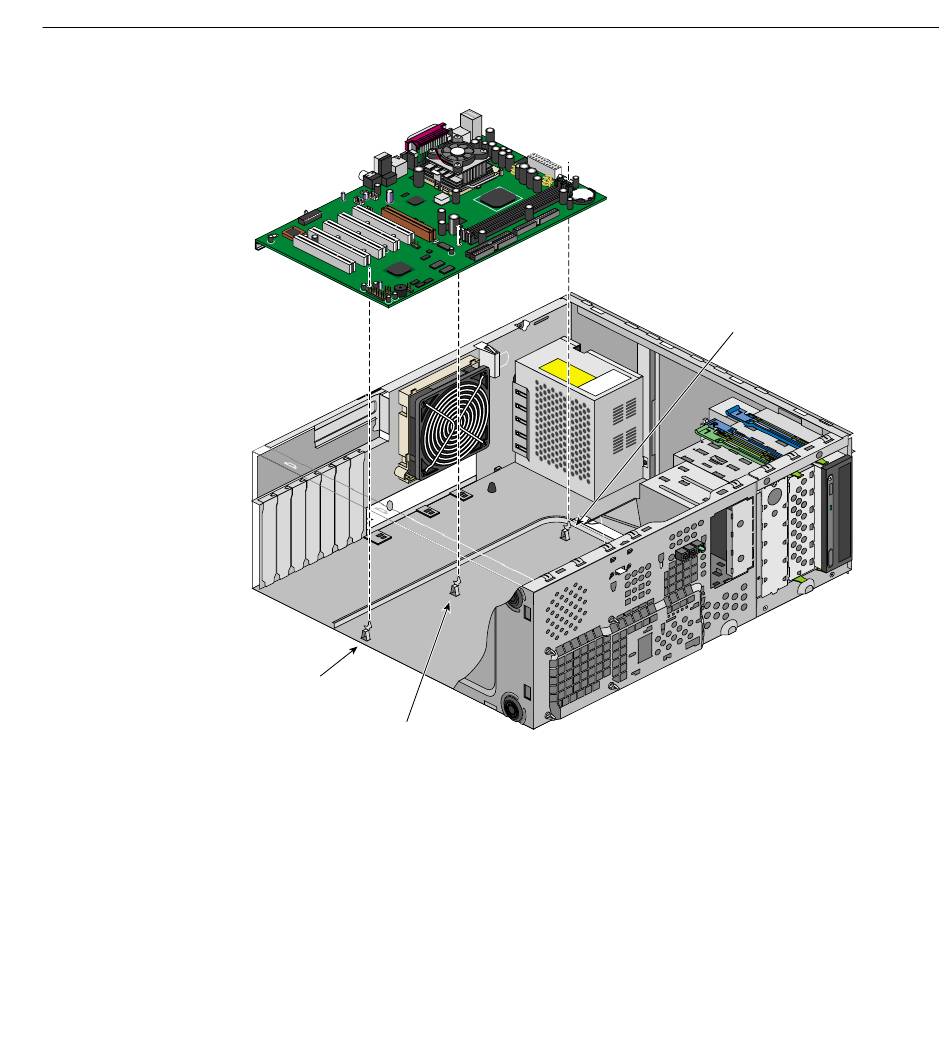

Figure 2-24 Positioning the System Board on its Standoff Hooks
5. Secure the system board screw onto the retaining bracket. See Figure 2-21 on
page 44 for the location of the system board screw.
6. Connect all system board cables to their connectors. Refer to Figure 2-25 and
Figure 3-1 on page 61 for the location of the system board connectors.
Replacing System Board
Standoff hook
47
