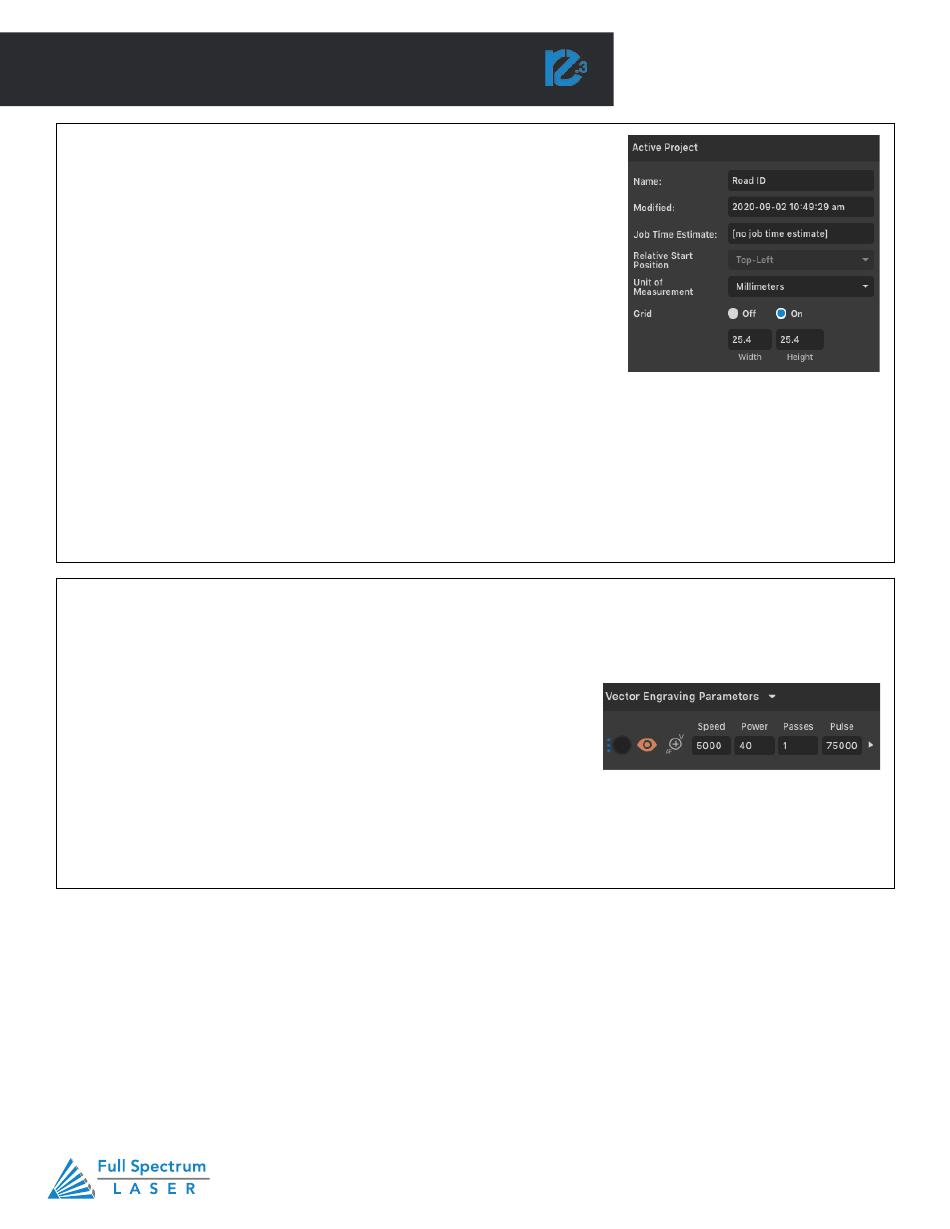

Full Spectrum Laser MUSE 3D Operation Manual page 51

RetinaEngrave v3.0 Software
Project Info (H)
This window displays information regarding the active project.
Active Project Name: Displays name of active project.
Modified: Displays last date project was modified.
Job Time Estimate: Displays estimated time until job is complete.
Unit: Choose unit of measurement from the following
Pixels: Sets unit of measurement to pixels. Centimeters: Sets unit of
measurement to centimeters.
Millimeters: Sets unit of measurement to millimeters.
Inches: Sets unit of measurement to inches.
Picas: Sets unit of measurement to picas.
Points: Sets unit of measurement to points.
Grid: Toggles grid on/off/isometric.
On: When "on" grid displays in workspace.
Off: When off, grid does not display in workspace.
Isometric: Toggles grid from squares to isometric grid.
Width: Displays width of item according to chosen unit of measurement.
Height: Displays height of item according to chosen unit of measurement
Vector Engraving & Parameters
Window appears when vector file is detected and is used to input
vector settings.
Hide Window: Click to hide vector engraving parameters window.
Show All Parameters: Toggle to show or hide all parameters.
Change Position: Drag with mouse to reorder any color.
Color Indicator: Separates vector cuts with color indicators.
Speed: Input speed settings.
Power: Input power settings.
Current: Input current settings.
Passes: Input the number of passes for the laser.
(G)
