Full Spectrum Laser MUSE 3D Operation Manual page 36

Section IV. Tests & Adjustments
AutoFfocus

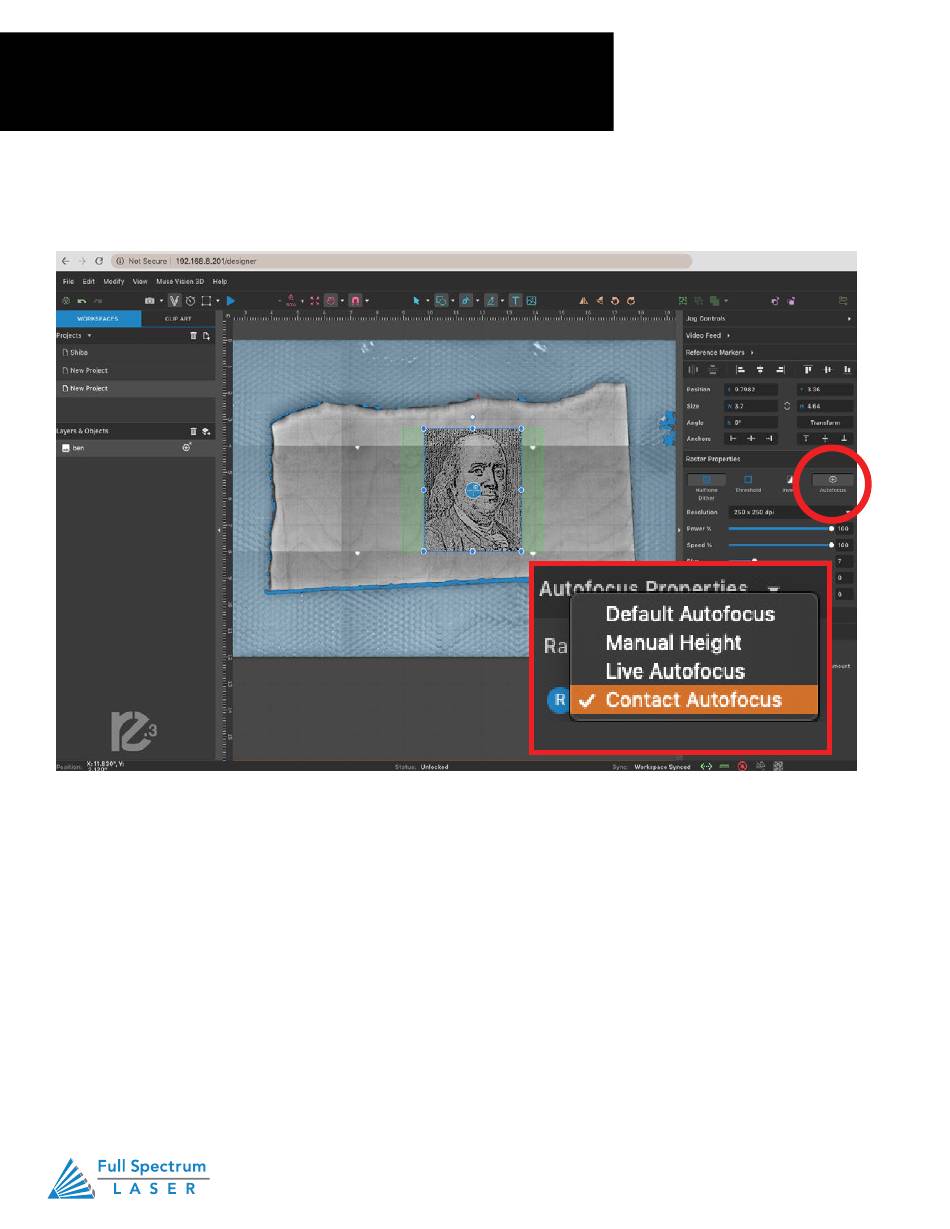

Autofocus Properties
SECTION VIII. HARDWARE & MAINTENANCE
Autofocus Properties
Focus Settings can customized via the Autofocus Properties Window
Focus settings can be customized via the Autofocus Properties Window.
With a little care and maintenance, your Muse 3D Laser Cutter will remain clean and continue to run
at top efficiency for years to come. Be aware of all safety and maintenance issues with your machine
by following all the safety instructions in this manual.
Replacing the Laser Tube
This section provides procedures and a walkthrough to replace the laser tube on your Muse 3D.
Although it should last for hundreds of projects, the laser tube is considered a consumable and will
eventually need to be replaced. Please carefully read all instructions before beginning the
replacement procedure as there are several critical steps which must be properly followed to avoid
breaking the laser tube. The included pictures show how to properly connect wires to the tube's
electrodes and secure the connections.
REQUIRED PARTS AND TOOLS:
45W REPLACEMENT TUBE
•
2.5 MM HEX WRENCH
•
Default Autofocus
Autofocus using the Intel 3D Camera
Contact Autofocus
Default Autofocus:
This setting utilizes distance; The z-motor makes physical contact with your material's height.
Autofocus using the intel real
Manual Height
touch 3d camera
Use measurement tool to set the distance of the lense manually.
Live Autofocus
This settting utilizes the Intel 3D Camera to detect surface height in real time.
Manual Height:
Use measurement tool to set the
distance of the lense manually.
FRAGILE GLASS!
your laser tube at the neck. The water connections are very
fragile, DO NOT pull or force the connection tubes— gently
work the tubes off of the connectors.
SHOCK WARNING!
retain power even after turning the laser off. To ensure your
safety, turn off the laser, remove the power cord and wait at
least 1 hour before accessing the power supply.
Technical Support is available 8am-5pm PST. Monday - Friday
support@fslaser.com
Pulling on the tube wires will break
Contact Autofocus:
This setting utilizes distance z-motor
making physical contact with your
The capacitors in the power supply
material's height.
Live Autofocus:
This setting utilizes the Intel 3d
Camera to detect surface height in • 702-802-3103
real time.
