Full Spectrum Laser MUSE 3D Operation Manual page 33

7. Adjust Red Beam:
7. Adjust Red Beam: Using your 2.5m hex wrench, make micro adjustments to the three adjustment screws of
the red beam diode, and position the red dot exactly over the burn mark.
adjustment screws of the red beam diode, and position the red dot exactly over the burn mark.
8. Reposition the Laser Head to "Close" Position: Now that we have a burn mark on our thermal paper
8. Reposition the Laser Head to "Close" Position:
from a "far" firing of the laser, we want to fire the laser from the closest position. Move the laser head to the far
thermal paper from a "far" firing of the laser, we want to fire the laser from the closest position. Move
left of the machine and test fire again.
the laser head to the far left of the machine and test fire again.
9. Re-Position X-Gantry back to "Far": Jog or manually position the laser head to the far right where you did
9. Re-Position X-Gantry back to "Far":
the first test fire.
right where you did the first test fire.
10. Check Results: There should be two observable burn marks on the thermal paper. If they overlap perfectly
10. Check Results:
you can move on to the next mirror. If they are apart, adjust the three 2.5mm hexscrews on Mirror #2 (not the
red beam diode) to move the burn mark over the red beam.
overlap perfectly you can move on to the next mirror. If they are apart, adjust the three 2.5mm hex
screws on Mirror #2 (not the red beam diode) to move the burn mark over the red beam.
11. Repeat Until Aligned: Check your results by repeating this process until the two burn marks are both
center and perfectly overlapping each other.
11. Repeat Until Aligned:
are both center and perfectly overlapping each other.
Technical Support is available from 8am to 5pm (PST) M - F at support@fslaser.com.
Using your 2.5m hex wrench, make micro adjustments to the three

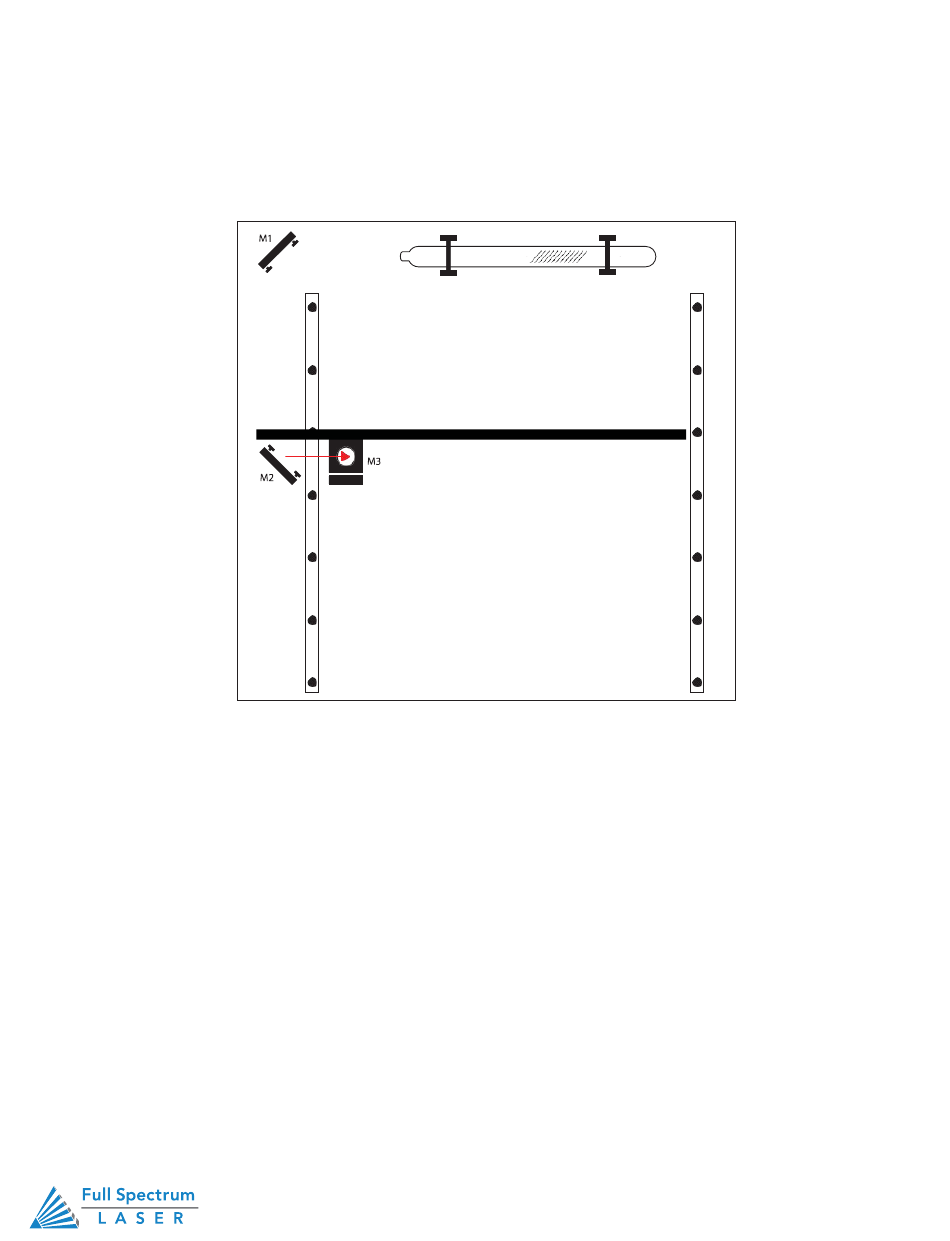

Figure 4.11
There should be two observable burn marks on the thermal paper. If they
Check your results by repeating this process until the two burn marks
Technical Support is available 8am-5pm PST. Monday - Friday
support@fslaser.com
Now that we have a burn mark on our
Jog or manually position the laser head to the far
• 702-802-3103
