Full Spectrum Laser MUSE 3D Operation Manual page 31

7. Reposition the X-Gantry to "Close" Position: Now that we have a burn mark on our thermal paper from a
7. Reposition the X-Gantry to "Close" Position:
"far" firing of the laser, we want to fire the laser from the closest position. Move the X-Gantry to the upper most
position in the machine and test fire again.
thermal paper from a "far" firing of the laser, we want to fire the laser from the closest position. Move
the X-Gantry to the upper most position in the machine and test fire again.
8. Re-Position X-Gantry back to "Far": Jog or manually position the X-Gantry to the far position where you
8. Re-Position X-Gantry back to "Far":
did the first test fire. (as shown in Figure 4.7).
position where you did the first test fire. (as shown in Figure 4.7).
9. Check Results: There should be two observable burn marks on the thermal paper. If they overlapperfectly
9. Check Results:
you can move on to the next mirror. If they are apart, adjust the three 2.5mm hex screws onMirror #1 (not the
perfectly you can move on to the next mirror. If they are apart, adjust the three 2.5mm hex screws on
red beam diode) to move the second burn mark over the red beam.
Mirror #1 (not the red beam diode) to move the second burn mark over the red beam.
10. Repeat Until Aligned: Check your results by repeating this process until the two burn marksare both
10. Repeat Until Aligned:
center and perfectly overlapping each other. Once aligned, you will repeat this procedure onthe next mirror.
are both center and perfectly overlapping each other. Once aligned, you will repeat this procedure on
the next mirror.
Technical Support is available from 8am to 5pm (PST) M - F at support@fslaser.com.

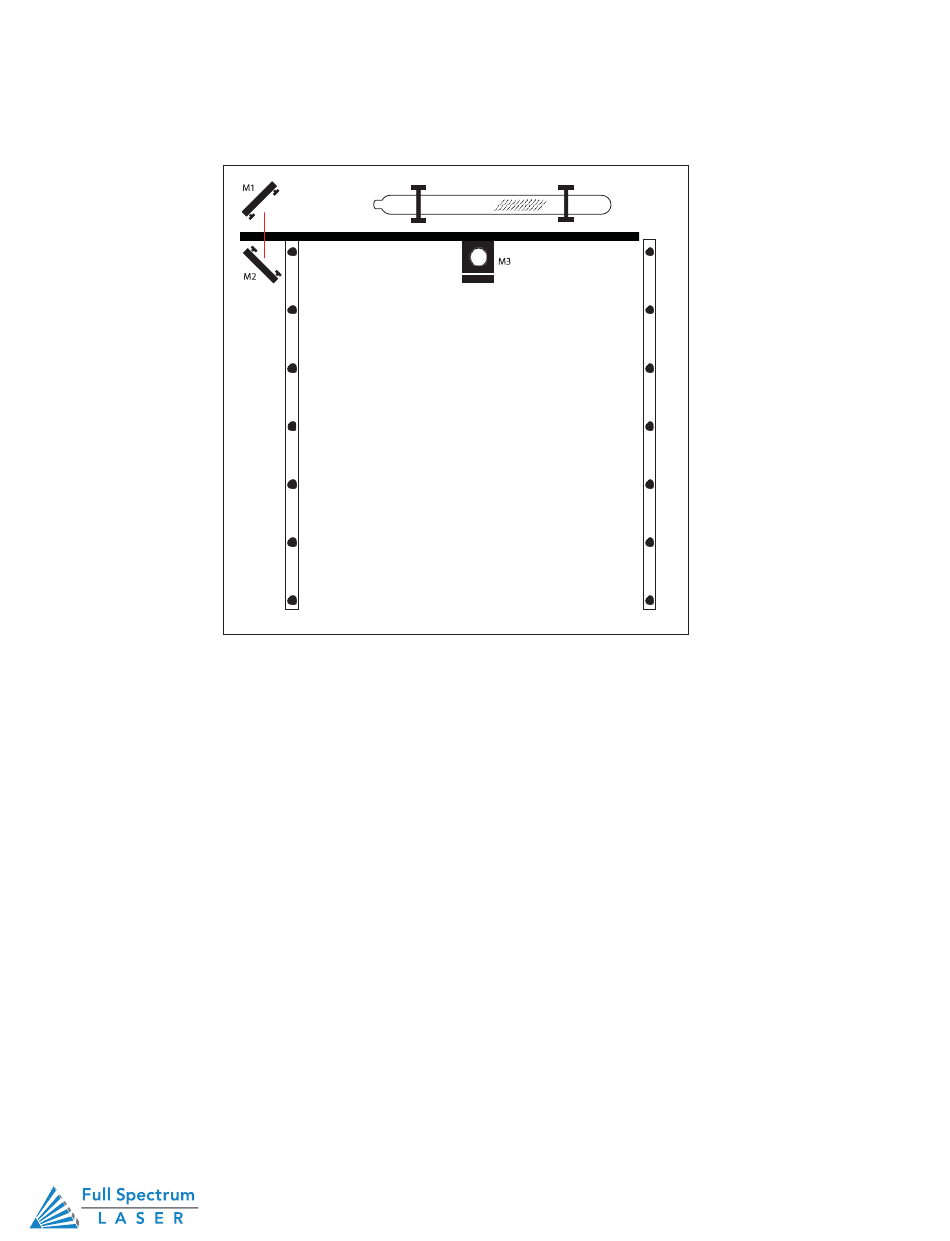

Figure 4.9
There should be two observable burn marks on the thermal paper. If they overlap
Check your results by repeating this process until the two burn marks
Technical Support is available 8am-5pm PST. Monday - Friday
support@fslaser.com
Now that we have a burn mark on our
Jog or manually position the X-Gantry to the far
• 702-802-3103
