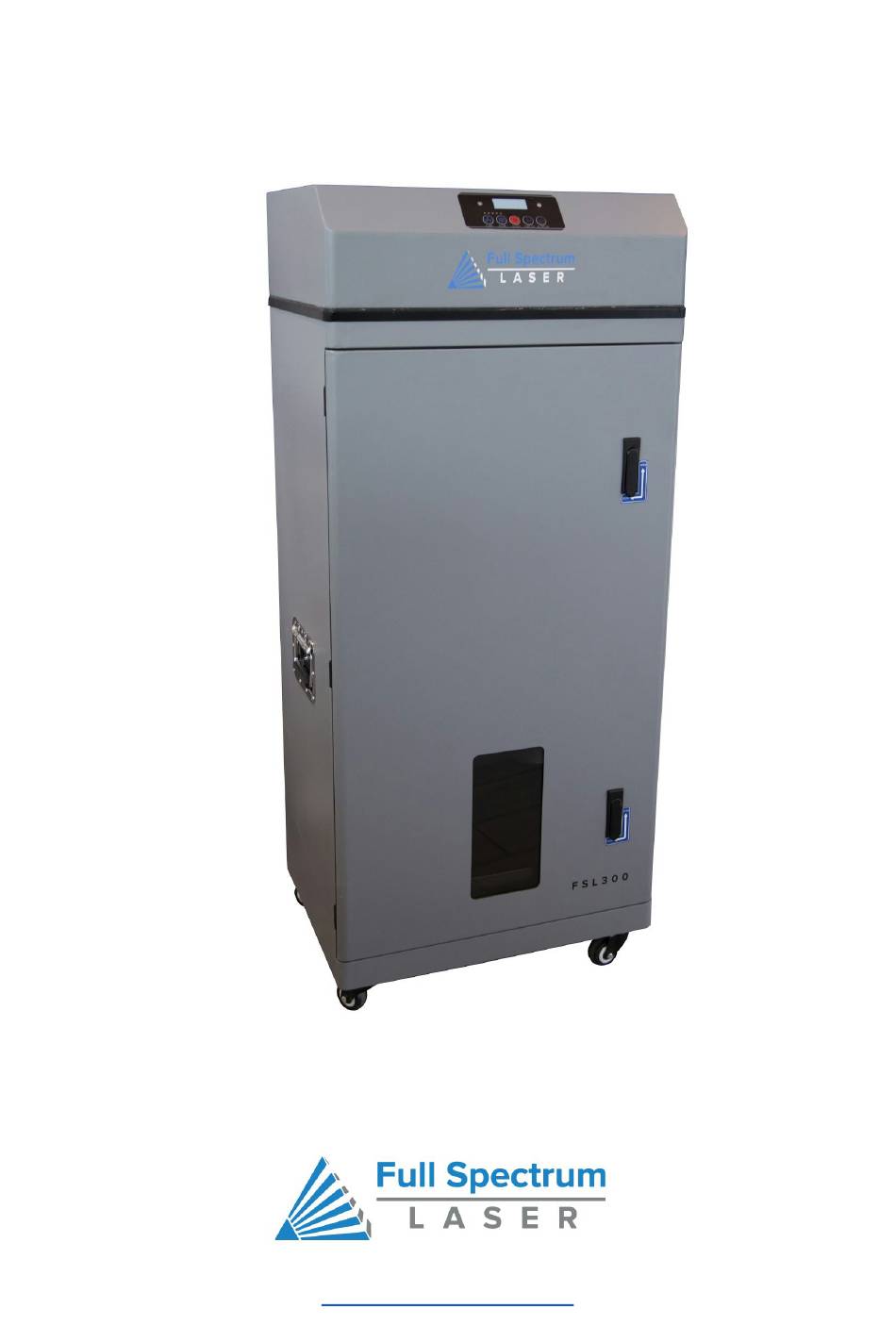

- Page 1 User Manual Model: FSL300 Dual Port Laser Fume Extractor WWW.FSLASER.COM ...
-
Page 2: Product Overview
when cutting or engraving with the Full Spectrum Laser line of laser ... -
Page 3: Unit Components
3. Unit Components Full Spectrum Laser LLC FSL300 User Manual, 2016, Rev.A... -
Page 4: Specifications
Noise ＜ 75dB Systemic Flow 365 CFM Dimensions of Main Unit 21.6” × 16.3” × 51.2” Weight 165 lbs Installation & Use instructions The FSL300 fume extractor features an efficient bottom up design. Exhaust fumes enter from the bottom, through a large ... - Page 5 After all cartridges are placed back, use a spanner to rotate clockwise the adjusting nut to tighten the cartridges down if necessary. Full Spectrum Laser LLC FSL300 User Manual, 2016, Rev.A...
- Page 6 The prefilter cartridge and the machine bottom must be cleaned regularly (recommended at least weekly) to prevent the filter system from becoming clogged and causing premature failure. Full Spectrum Laser LLC FSL300 User Manual, 2016, Rev.A...
- Page 7 Suction Duct Hose Installation The FSL300 has 2 air inlets to operate up two machines simultaneously. When operating a single machine, place the ...
- Page 8 Press this button when the machine is running, the number on digital display decreases in multiples of 10. Proper Fan Speed The fan speed should be set according to the actual requirements to remove all smoke without creating too much of a vacuum. During laser cutting, the laser machine should not fill up with smoke. If there is lingering smoke during cutting increase the fan speed. Too high a setting may cause the work piece to lift up and be pulled toward the vacuum created. In addition, too high a fan speed increases the power consumption as well as the noise level. Full Spectrum Laser LLC FSL300 User Manual, 2016, Rev.A...
- Page 9 status, press the Confirm/Set button to check the total working hours of the machine. Full Spectrum Laser LLC FSL300 User Manual, 2016, Rev.A...
-
Page 10: Troubleshooting
hence the machine shuts down automatically for self protection. Solution: Turn off the power and open the top cover. Check if there is any obstructions in the air inlet or replace filters. Problem 3 : Power switch is ON, but machine does not run and the power indicator does not light up. Cause: The fuse might be bad. Solution: The fuse needs to be replaced. Pop the fuse out from the power socket using a flat head screwdriver and replace. Full Spectrum Laser LLC FSL300 User Manual, 2016, Rev.A... - Page 11 If the problem remains after these inspections and maintenance are performed, please contact customer service. pg Full Spectrum Laser LLC FSL300 User Manual, 2016, Rev.A...
- Page 12 HEPA Filter Cartridge. The cartridges are marked with an arrow in the direction of airflow. In the FSL300 these cartridges should be loaded with the arrow facing up. If ...
-
Page 13: Replacement Parts
40%80%. If the humidity is excessively high, the activated carbon filter element will become rapidly saturated with water and consumed. Full Spectrum Laser LLC FSL300 User Manual, 2016, Rev.A... -
Page 14: Contact Information
The warranty will not cover any losses or damage that may be incurred by the user if instructions are not followed. Contact Information Full Spectrum Laser LLC 6216 S Sandhill Rd, Las Vegas, NV 89120 Tel: (702) 8023100 Fax: (702) 9870150 http://fslaser.com/Support Full Spectrum Laser LLC FSL300 User Manual, 2016, Rev.A...
