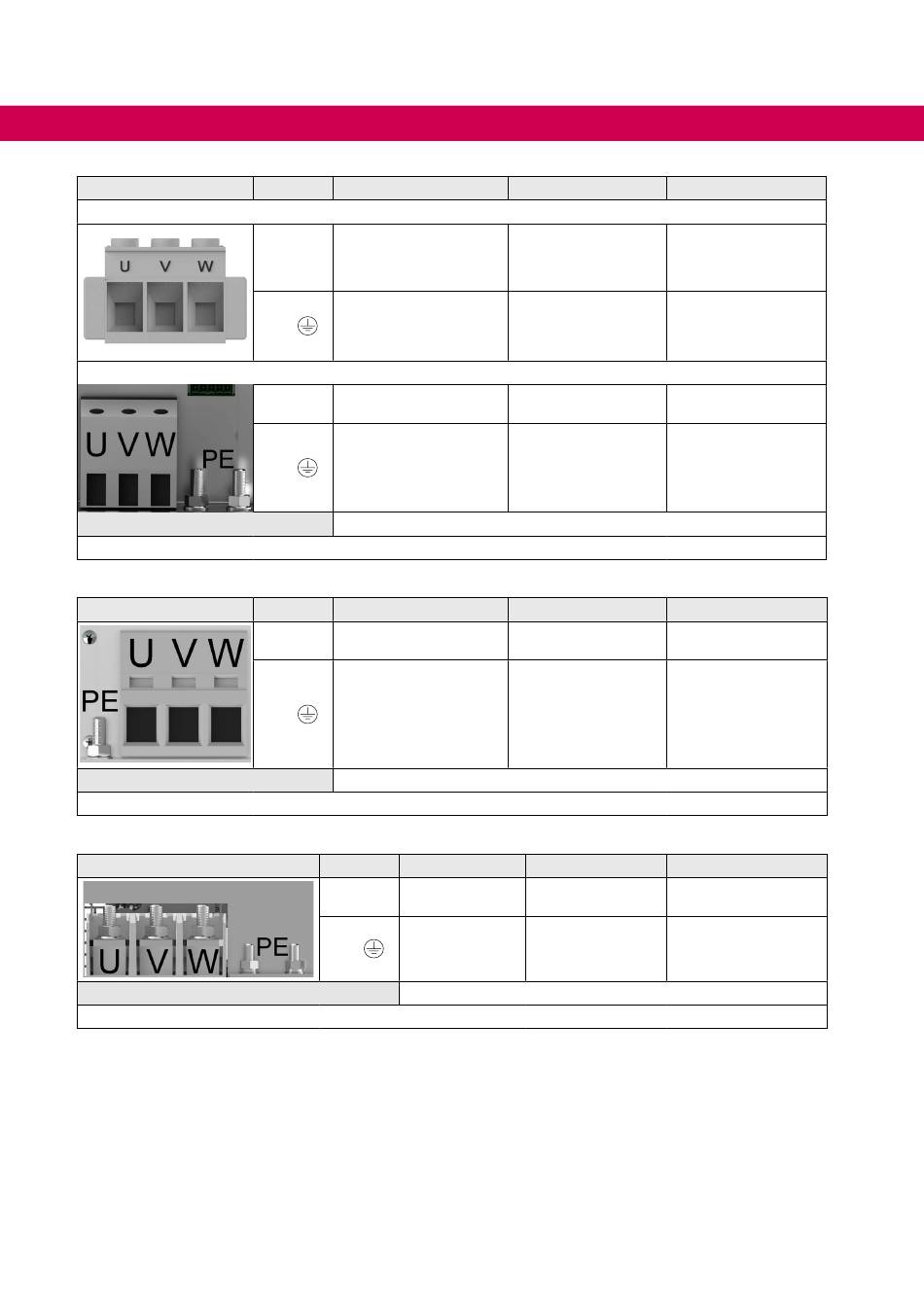

cONNEcTION Of THE POWER UNIT
Housing c/S
Required tool
Figure 18: Housing C / S motor connection
Housing E / U
Required tool
Figure 19: Housing E / U motor connection
Housing G/W
Required tool
Figure 20: Housing G / W motor connection
48
Name function
Device size 13...15
U, V, W Motor connection
Connection for shielding/
PE,
earthing
Device size 16...19
U, V, W Motor connection
Connection for shielding/
PE,
earthing
Screw driver
Name function
U, V, W Motor connection
Connection for shielding/
PE,
earthing
Screw driver
Name function
U, V, W Motor connection
Connection for
shielding/ earth-
PE,
Screw driver
cross-section
0.2...6 mm²
AWG 24-10
M6 stud for ring crimp
connector
0.2...6 mm²
AWG 24-10
M6 stud for ring crimp
connector
cross-section
35...95 mm²
AWG 4-0
M8 stud for ring crimp
connector
cross-section
M10 stud for ring
crimp connector
M8 stud for ring
crimp connector
ing
Tightening torque
0.7 Nm
6.2 lb inch
5 Nm
44 lb inch
0.7 Nm
6.2 lb inch
5 Nm
44 lb inch
Tightening torque
15 Nm
132 lb inch
12
110 lb inch
Tightening torque
25
220 lb inch
12
110 lb inch
