cONNEcTION Of THE POWER UNIT

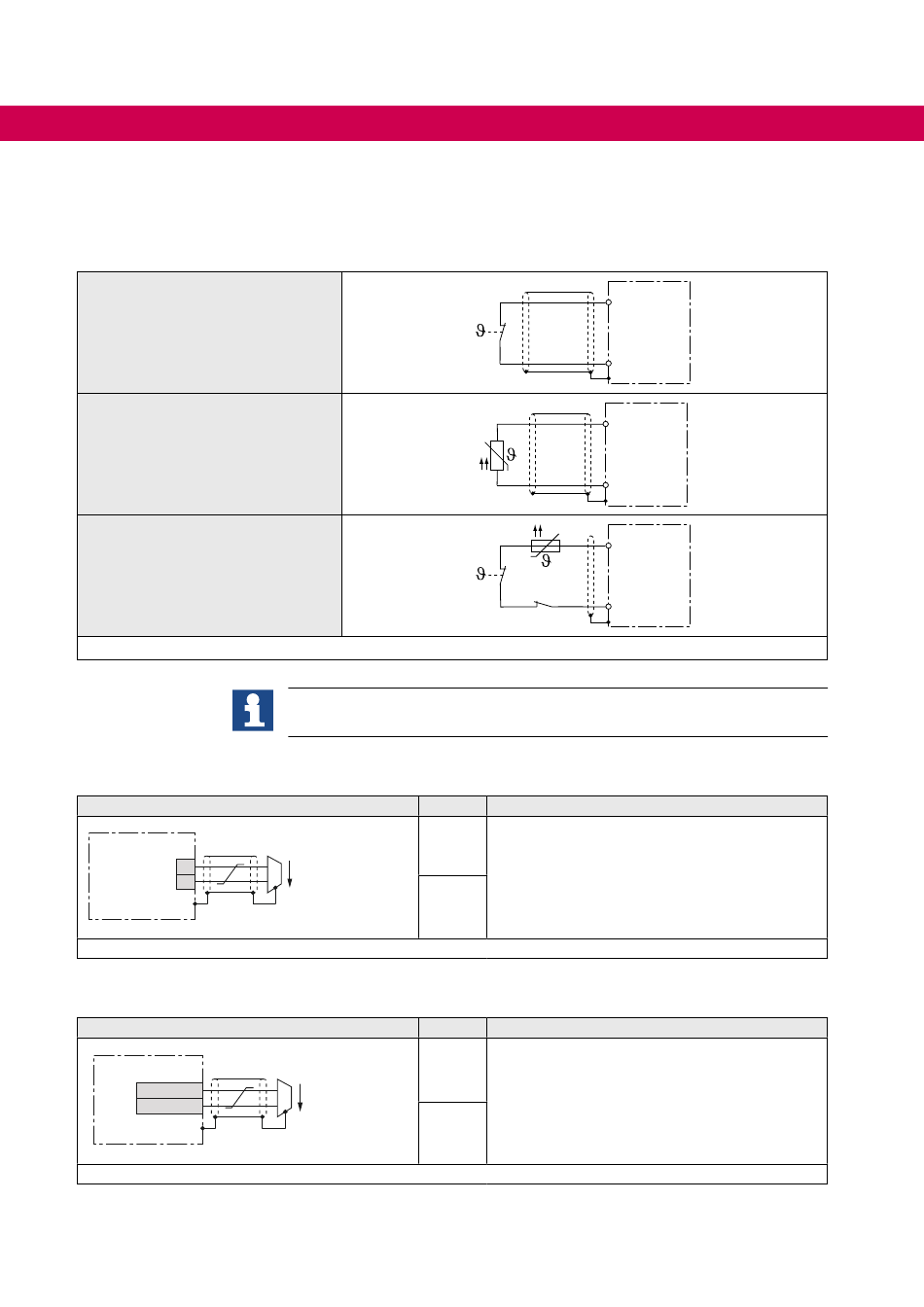

4.2.3.7 Use of the temperature input in PTC mode

If the temperature input is operated in the PTC mode, the user can provide all possibili-
ties within the resistance range specified in chapter „Motor temperature detection". This
can be:
Thermal contact (Nc contact)
Temperature sensor (PTc)
Mixed sensor chain
Table 15: Wiring example in PTC mode

4.2.3.8 Brake control terminals B+, B-

Terminal block X1b
B+
X1B
B-
Figure 25: Brake control terminals B+, B-

4.2.3.9 Brake control terminals BA+, BA- and BB+, BB-

Terminal block X1b
BA+ / BB+
X1B
BA- / BB-
Figure 26: Brake control terminals BA+, BA- and BB+, BB-
52
If no evaluation of the input is desired, a bridge between T1 and T2 pn12 can
be installed or the error message can be ignored with pn12.
Name
b+
U = 24V
dc
I = 3,3A
_max
b-
Name
bA+ /
bb+
U = 24V
dc
I = 2A
_max
bA- /
bb-
T1
T2
T1
T2
T1
T2
Description
DC 24 V / max. 3.3 A output for direct control of
a brake. The max. current is depending on the
number of axes and the rectifier module.
Description
DC 24 V / max. 2 A output for direct control of
a brake. The max. current is depending on the
number of axes and the rectifier module.
