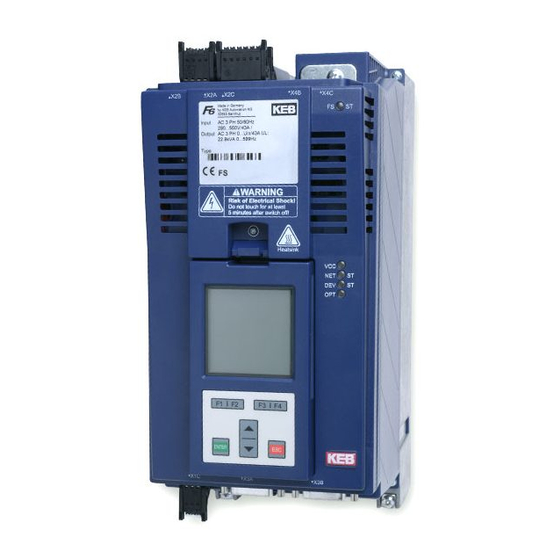

KEB COMBIVERT F6 Instructions For Use Manual
Functional safety
Hide thumbs
Also See for COMBIVERT F6:
- Programming manual (544 pages) ,
- Reference manual (305 pages) ,
- Instructions for use manual (88 pages)
Subscribe to Our Youtube Channel
Related Manuals for KEB COMBIVERT F6
Summary of Contents for KEB COMBIVERT F6
- Page 1 Funktionale Sicherheit Functional safety COMBIVERT F6 | H6 | S6 INSTRUCTIONS FOR USE | SAFETY MODULE TYPE 1 | STO AND SBC Translation of the original manual Document 20109577 EN 03...
-
Page 3: Preface
PrEFACE Preface The described hard- and software are developments of the KEB Automation KG. The enclosed documents correspond to conditions valid at printing. Misprint, mistakes and technical changes reserved. Signal words and symbols Certain operations can cause hazards during the installation, operation or thereafter. -
Page 4: Laws And Guidelines
If applicable, the license terms of this software are contained in the instructions for use. The instructions for use are already available to you, can be downloaded free of charge from the KEB website or can be requested from the respec- tive KEB contact person. -
Page 5: Table Of Contents
TABLE OF CONTENTS Table of Contents Preface ..............................3 Signal words and symbols ......................3 More symbols ..........................3 Laws and guidelines ........................4 Warranty and liability ........................4 Support ............................4 Copyright ............................4 Table of Contents ........................... 5 List of Figures ............................7 List of Tables ............................ - Page 6 TABLE OF CONTENTS 4.1.3 Specification of the SBC inputs ..................22 4.1.4 SBC with OSSD signals ..................... 22 4.2 Outputs ............................23 4.2.1 Output STO ........................23 4.2.2 Output SBC ........................23 4.2.3 Brake output ........................23 4.3 Status LEDs ........................... 23 4.3.1 Status-LED safety module ....................23 4.2 Outputs ............................
-
Page 7: List Of Figures
LIST OF FIGUrES 9.1 Annex to the declaration of conformity ..................35 10 revision history ............37 Notes 38 List of Figures Figure 1: Description of the Terminals ..................... 21 Figure 2: Direct switching off with emergency stop switch .............. 30 Figure 3: Direct switching off with emergency stop switch and monitoring of the wiring .... -
Page 8: List Of Tables
LIST OF TABLES List of Tables Table 1: Numerical code ........................15 Table 2: Calculation of the jerk ...................... 18 Table 3: Classifications of STO ......................19 Table 4: Requirements for the brake ..................... 19 Table 5: Classifications of SBC...................... 20 Table 6: Mechanical specification of terminal strip X2B..............21 Table 7: Specification of the STO inputs ..................22 Table 8: STO with OSSD signals .................... -
Page 9: Glossary
Business-to-business IP xx Degree of protection (xx for level) BiSS Open source real-time interface for KEB product The KEB product is subject of this sensors and actuators (DIN 5008) manual Fieldbus system Silicium temperature sensor (pola- Complete drive module including... - Page 10 GLOSSArY Programmable logic controller PT100 Temperature sensor with R0=100Ω PT1000 Temperature sensor with R0=1000Ω PTC-resistor for temperature detec- tion Pulse width modulation RJ45 Modular connector with 8 lines Synchronous sensorless closed loop SELV Safety Extra Low Voltage (< 60 V) The security integrity level is a measure for quantifying the risk reduction.
-
Page 11: Standards For Drive Converters / Control Cabinets
STANDArDS FOr DrIVE CONVErTErS / CONTrOL CABINETS Standards for drive converters / control cabinets Product standards that apply directly to the drive converter EN 61800-2 Adjustable speed electrical power drive systems - Part 2: General requirements - Rating specifications for low voltage adjustable frequency a.c. power drive systems (VDE 0160-102, IEC 61800-2) EN 61800-3 Speed-adjustable electrical drives. Part 3: EMC requirements and specific test methods (VDE 0160-103, IEC 61800-3) -
Page 12: Standards That Are Used In The Environment Of The Drive Converter
STANDArDS FOr DrIVE CONVErTErS / CONTrOL CABINETS EN 61508-1...7 Functional safety of electrical/electronic/programmable electronic safety-related systems – Part 1...7 (VDE 0803-1…7, IEC 61508-1…7) EN 62061 Safety of machinery - functional safety of electrical, electronic and program- mable electronic safety-related systems (VDE 0113-50, IEC 62061) EN ISO 13849-1 Safety of machinery - safety-related parts of control systems - Part 1: General principles for design (ISO 13849-1); German version EN ISO 13849-1... -
Page 13: Basic Safety Instructions
► Read the instructions for use ! ► Observe the safety and warning instructions ! ► If anything is unclear, please contact KEB Automation KG ! 1.1 Target group This instruction manual is determined exclusively for electrical personnel. Electrical per- sonnel for the purpose of this instruction manual must have the following qualifications: •... -
Page 14: Electrical Connection
BASIC SAFETY INSTrUCTIONS 1.2 Electrical connection DANGEr Voltage at the terminals and in the device ! Danger to life due to electric shock ! ► For any work on the unit switch off the supply voltage and secure it against switching on. ►... -
Page 15: Product Description
PrODUCT DESCrIPTION 2 Product Description The safety manual completes the installation manual of the COMBIVERT with the safety module of type 1. It contains safety-related supplements and regulations for the operation of devices in safety applications. The basic standards as well as application and country-specific standards must be observed furthermore. -
Page 16: Safety Functions
SAFETY FUNCTIONS 3 Safety Functions 3.1 General instructions Danger Electric Shock The COMBIVERT is operated with dangerous voltages which can cause death or serious injury. The COMBIVERT can be adjusted by way that in regenerative operation energy is regenerated into the mains also during mains power failure. Therefore a dangerous high tension can exist in the unit after switching off the supply system. -
Page 17: Safe Torque Off (Safe Torque Off - Sto)
SAFETY FUNCTIONS With electronic protection devices there are safety functions integrated in the drive control in order to minimize or eliminate danger by malfunctions in machines. The integrated safety functions replace the complex installation of external safety components. The safety functions can be requested or released by an error. -
Page 18: Emergency Stop According En 60204
SAFETY FUNCTIONS 3.2.1 Emergency stop according EN 60204 By using suitable safety switchgear units, stop category 0 and 1 according to EN 60204 -1 can be reached by the STO function in the system. Note chapter 6 for safety switchgear units. „uncontrolled stop“, i.e. -
Page 19: Classification Of Sto According Iec 61508
SAFETY FUNCTIONS 3.2.2 Classification of STO according IEC 61508 2.6 • 10 2.3 • 10 on demand Proof-Test-Interval T 20 years For SIL classification in connection with the applications consider the failure rates of the external switch devices for final evaluation. 3.2.3 Classification of STO according EN ISO 13849 Category MTTF >1000 years... -
Page 20: Classification Of Sbc According Iec 61508
SAFETY FUNCTIONS Attention Power-off braking Use brakes which are closed at power-off state. A classification of the entire brake system inclusive mechanical brake to SIL 3 and PL e must be evaluated depending on the used brake. Brakes are considered as components with relatively high error probability. A test interval for the brake is set depending on the manufacturer specified error probability of the used brake and depending on the application. -
Page 21: Description Of The Terminals
DESCrIPTION OF THE TErMINALS 4 Description of the Terminals Safety module type 1 Terminal Name Function 1 / 2 STO1+ Input STO channel 1 3 / 4 STO1- 5 / 6 STO2+ Input STO channel 2 7 / 8 STO2- 9 / 10 SBC1+ Input... -
Page 22: Inputs
DESCrIPTION OF THE TErMINALS 4.1 Inputs 4.1.1 Specification of the STO inputs Status 0 Status 1 Inputs UL [V] IL [mA] UH [V] IH [mA] max. min. not defined Table 7: Specification of the STO inputs The maximum short-term starting current of the input is limited to 0.6 mA. 4.1.2 STO with OSSD signals The filter time depends on the minimum input voltage and can be specified as follows: Input voltage [V]... -
Page 23: Outputs
DESCrIPTION OF THE TErMINALS 4.2 Outputs The short-circuit proof, digital outputs are specified in accordance with IEC61131-2. The output rated current is 100 mA. 4.2.1 Output STO Output (status-STO) provides a 24V signal if the modulation is possible. 4.2.2 Output SBC Output (status SBC) provides a 24V signal if the brakes are released (see „6.3 Functional descrip- tion SBC“). -
Page 24: Installation
INSTALLATION 5 Installation Attention Before beginning Before installation, read and note the EMC and safety instructions and installation manual of the COMBIVIS. 5.1 Additional instructions: • The unit must be isolated from mains by main switch when working on parts under voltage. •... -
Page 25: Functional Descriptions
FUNCTIONAL DESCrIPTIONS 6 Functional Descriptions The safety module type1 fulfils the following functions according to IEC 61800-5-2: • Safe torque off (Safe Torque Off - STO) • Safe brake control (Safe Brake Control – SBC) 6.1 Status of the safety module The status of the safety module can be read out with parameter sb29 „safety mod. status word“ of the COMBIVERT. -
Page 26: Function Description Sto
FUNCTIONAL DESCrIPTIONS 6.2 Function description STO The safety-related disconnection according to STO is reached by a two-cannel opto-coupler block- age. The supply of the opto-couplers, which are responsible for the commutation of the connected drive occurs via transformation coupling of the input voltage. This ensures at input voltage loss that no supply of the opto-couplers is possible. -
Page 27: Single Axis Module
FUNCTIONAL DESCrIPTIONS 6.3.1 Single axis module If both inputs are set, the opening of • brake A is displayed in status bit 2. co21 Bit 4 Brake release State SBC Brake ctrl mode Table 12: Braking handling single axis module 6.3.2 Double axis module If both inputs are set, the opening of •... -
Page 28: Setting Of Status Bits By The Sbc Function
FUNCTIONAL DESCrIPTIONS 6.3.3 Setting of status bits by the SBC function The current through the brake can measured at brake release. co82 ext. modules ctrl word Bit 0 safety module current sense Value COMBIVIS text Function SM-CS-off Brake current measurement off; at the state of the safety module (sb29) only the bits 8 & 22 are set. Bit 0, 7 &... -
Page 29: Monitoring Of The Sbc Function
FUNCTIONAL DESCrIPTIONS 6.3.4 Monitoring of the SBC function The switches are tested at brake release each hour on their switching ability. A short circuit monitoring against 24V respectively 0V is given. If the diagnosis CPU monitors a fault, the control of both channels is disconnected, the LED is set to red and bit 0 is set in the status. -
Page 30: Wiring Examples
WIRINg EXaMplES 7 Wiring Examples 7.1 Direct switching off with emergency stop switch Field bus Field bus Diagnosis Control circuit 24Vdc Safety circuit Terminal strip X2B Module type 1 STO1+ STO1- STO2+ STO2- SBC1+ SBC1- SBC2+ SBC2- Status STO Status SBC Power circuit B+ B- T1 T2 U V W PE... -
Page 31: Direct Switching Off With Emergency Stop Switch And Monitoring Of The Wiring
WIRINg EXaMplES 7.2 Direct switching off with emergency stop switch and monitoring of the wiring Field bus Field bus Diagnosis Control circuit 24Vdc Safety Circuit Terminal strip X2B Module type 1 STO1+ STO1- STO2+ STO2- SBC1+ SBC1- SBC2+ SBC2- Status STO Status SBC Power circuit B+ B- T1 T2... -
Page 32: Direct Switching Off By Safety Module With Test Pulses
WIRINg EXaMplES 7.3 Direct switching off by safety module with test pulses Field bus Field bus Diagnosis Control circuit open closed Safety circuit Terminal strip X2B Safety device Module type 1 STO1+ STO1- STO2+ Acknowledgment STO2- SBC1+ SBC1- SBC2+ SBC2- Status STO Status SBC Power circuit... -
Page 33: Wiring Ss1
WIRINg EXaMplES 7.4 Wiring SS1 At tripping SS1 (Safe Stop 1) the drive is only disconnected from supply when it has reached a stand- still [IEC 61800-5-2]. The stop mode is not directly requested, but the maximum time until reaching the standstill is estimated. -
Page 34: Change Of The Safety Module
CHANGE OF THE SAFETY MODULE 8 Change of the Safety Module Danger Electric Shock Before working with the unit disconnect it from mains. Check the iso- lation from supply by measurements in the unit. Await min. 15 minutes until the capacities of the DC link are discharged. A change of the safety module is displayed by the control in the COMBIVIS with status 61 „ERROR safety mod. changed“. The user must confirm the change by writing of parameter de.38 "serial number safety module"... -
Page 35: Certification
Annex to the declaration of conformity EC for systems with functional safety: For information about the declaration of conformity visit our homepage www.keb.de => Service => Downloads. Search entry: Safety H6; file type: certificates. Herewith we declare that the safety module described above corresponds with all relevant regula- tions of the machinery safety directive 2006/42/EC. - Page 36 CErTIFICATION Standard Text reference Electromagnetic compatibility (EMC) - Part 6-7: Generic standards - DIN EN Immunity requirements for equipment intended to perform functions in 61000-6-7 a safety-related system (functional safety) in industrial locations (IEC 0839-6-7 61000-6-7) Safety of machinery – EN 60204-1 Electrical equipment of machines –...
-
Page 37: Revision History
2016-09 Change to document management; Changed cover picture; Changed product de- scription; Revision / generalization for the use with F6A and S6A. 2016-12 Change to new formats; Change of the company name and address. 2017-02 Change to the new KEB corporate identity optics. 2020-05 List of standards updated; standards at the annex of the declaration of conformity adapted. -
Page 38: Notes
NOTES Notes... - Page 39 CEP 13569-430 Portal do Sol, São Carlos Brazil Gangnam Gu 135- 757 Seoul Republic of Korea Tel: +55 16 31161294 E-Mail: roberto.arias@keb.de Tel: +82 2 6253 6771 Fax: +82 2 6253 6770 E-Mail: vb.korea@keb.de KEB Automation GmbH Czech republic KEB RUS Ltd.
- Page 40 Automation with Drive www.keb.de KEB Automation KG Suedstrasse 38 32683 Barntrup Tel. +49 5263 401-0 E-Mail: info@keb.de...
