cONNEcTION Of THE cONTROL

4.3.5 Assembly of the wires to PUSH IN terminals

NOTICE
single-wire or fine-wire
Table 20:
front view
Figure 34:
•
•
60
Malfunctions caused by loose cable connections!
► Observe metal sleeve length and stripping length
cross-section Wire-end ferrule
0.50 mm
2
with plastic collars
0.75 mm
2
1.00 mm
2
without plastic collars
1.50 mm
2
0.2...1.5 mm
2
Wire-end ferrules and stripping length
a) b)

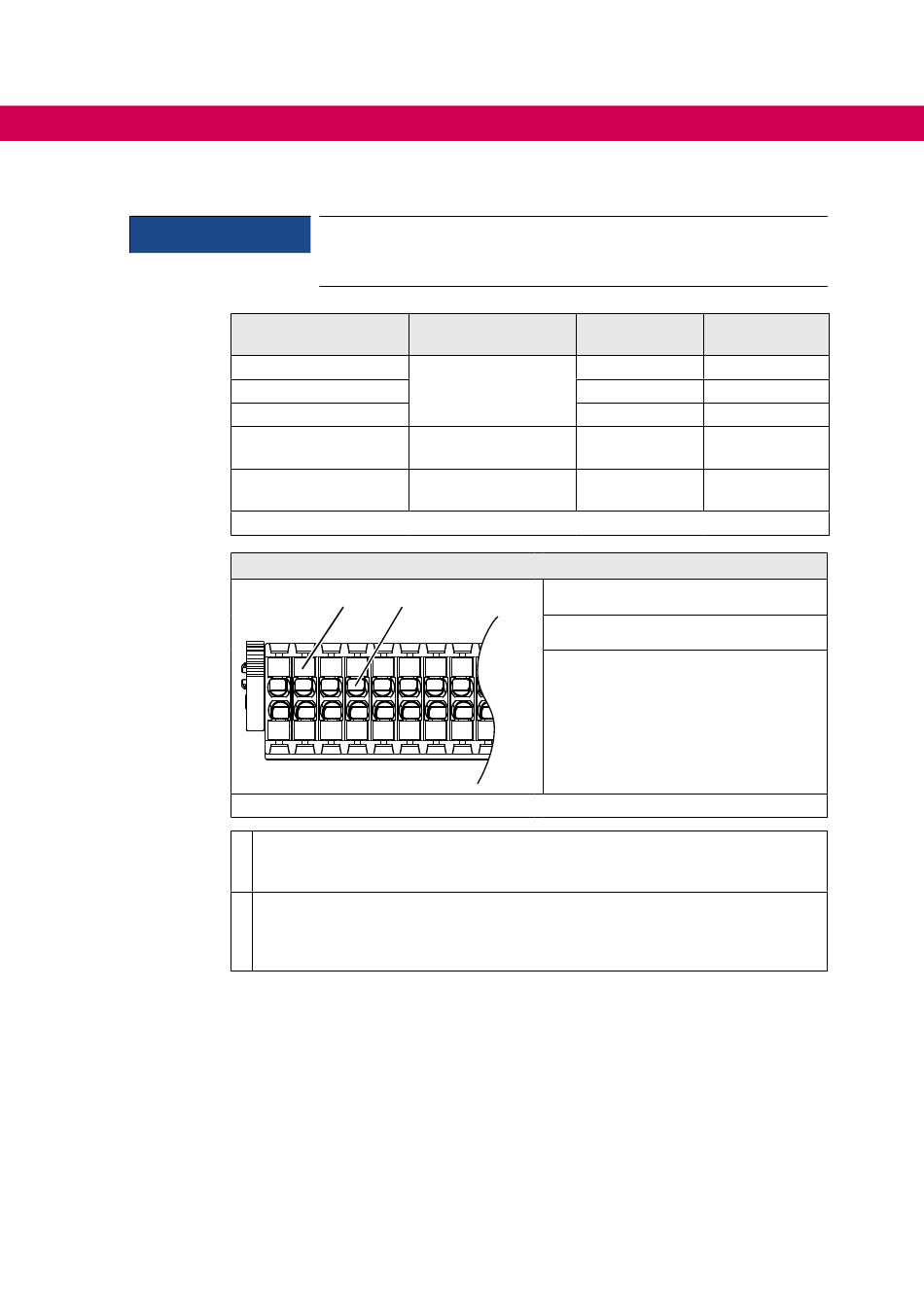

Assembly of the control cable
Press pusher by hand. Insert connecting wires into the respective hole, that no
single wires can be seen from the outside or bend outward. A first resistance must
be overcome when inserting. Release the pusher.
Check that the connecting wire is fixed and can not be pulled-out. It is important to
ensure that the connecting wire and not the insulation is clamped. The connecting
wire can also be inserted without pressing the pusher in case of cross-sections
upto 1.00 mm².
Metal sleeve
(DIN 46228-4)
(DIN
46228-1)
without wire-end
ferrule
a) Pusher
b) Wire hole
18
Stripping
length length
10 mm 12 mm
12 mm 14 mm
12 mm 15 mm
10 mm 10 mm
– 10...15 mm
