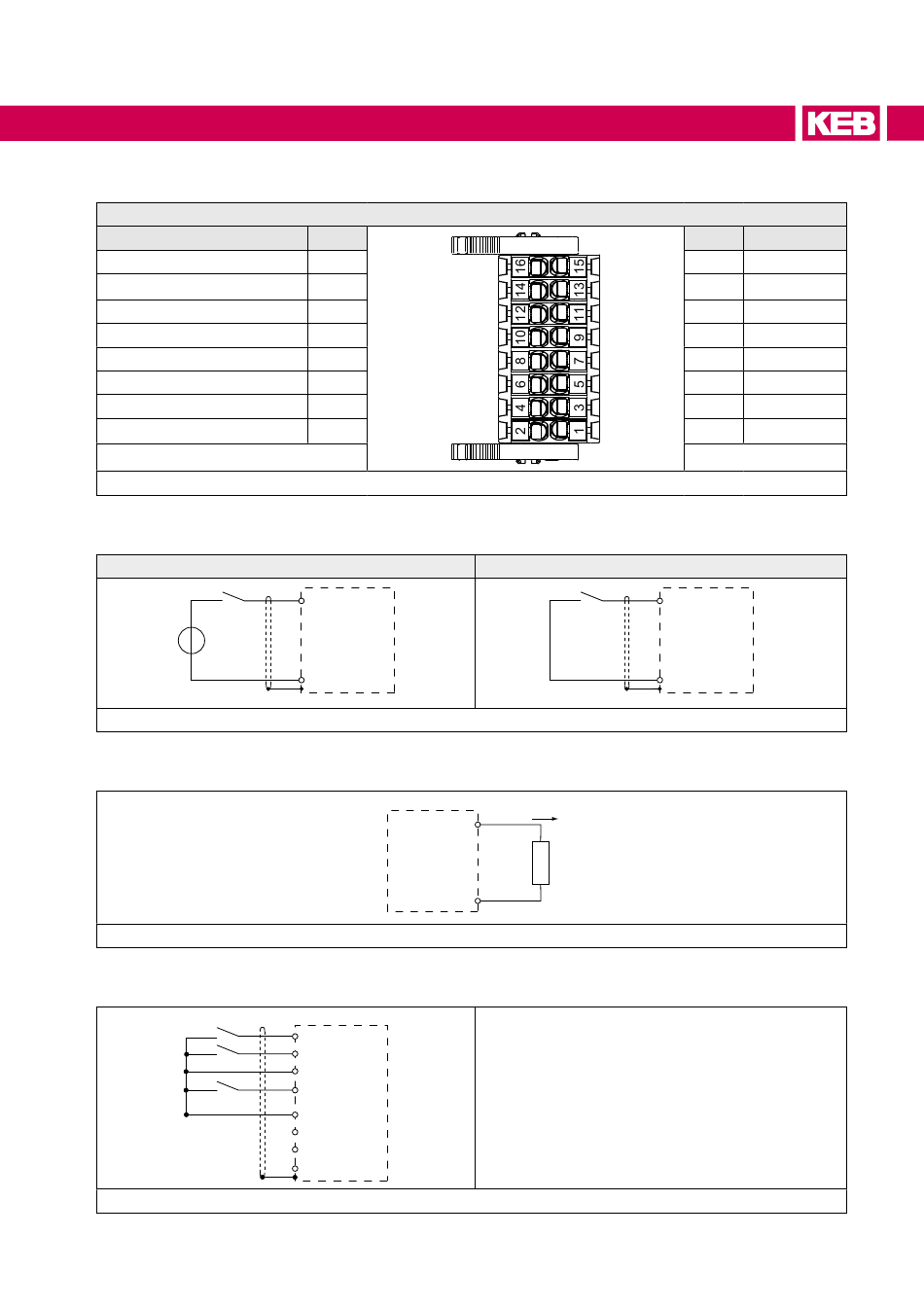

cONNEcTION Of THE cONTROL
4.3.5.1 Assignment of the terminal block X2A
function Term.
Digital input DI 4
Digital input DI 3
Digital input DI 2
Digital input DI 1
Digital output DO 4
Digital output DO 3
Digital output DO 2
Digital output DO 1
Figure 35:
Assignment of the terminal block X2A
4.3.5.2 Connection of the digital inputs
AfE and charging module
+
Figure 36:
Connection of the digital inputs DI 1...DI 4
4.3.5.3 Connection of the digital outputs
Figure 37:
Connection of the digital outputs DO 1...DO 4
4.3.5.4 Example for the control of digital inputs and digital outputs
Figure 38:
Example for the control of digital inputs and digital outputs
Digital inputs and outputs
16
14
12
10
8
6
4
2
DI1...4
0V
DO1...4
0V
DI4
DI3
DI2
DI1
DO4
DO3
DO2
DO1
Only charging module
I
L_max
Operation with hardware release:
The 24V for the control of the inputs can be con-
trolled with the set output DO4.
Term. function
15
0 V
13
0V
11
0V
9
0V
7
0V
5
0V
3
0V
1
0V
DI1...4
24V
61
