UV Lamp Kit
All Labconco Purifier Logic and Logic+ Series Biosafety Cabinets are pre-wired for the
installation of a UV lamp kit, consisting of the UV lamp, its ballast, and fasteners. The kit
is part number 3858500 for 115 Volt models, 3858501 for 100 Volt models, and
3858502 for 230 Volt units.
A qualified electrician or certifier should install the UV lamp kit.
Decontaminate all interior work surfaces of the Purifier before beginning the
installation of the UV lamp.
Installation Procedure
1. Disconnect power to the unit.
2. Using a 7/16-inch wrench or socket, remove the two acorn nuts that secure the
electronics module to the top of the Purifier.
3. Tilt the electronics module on its side to access the underside of the module. Secure
the module so that it does not fall and damage the wiring.

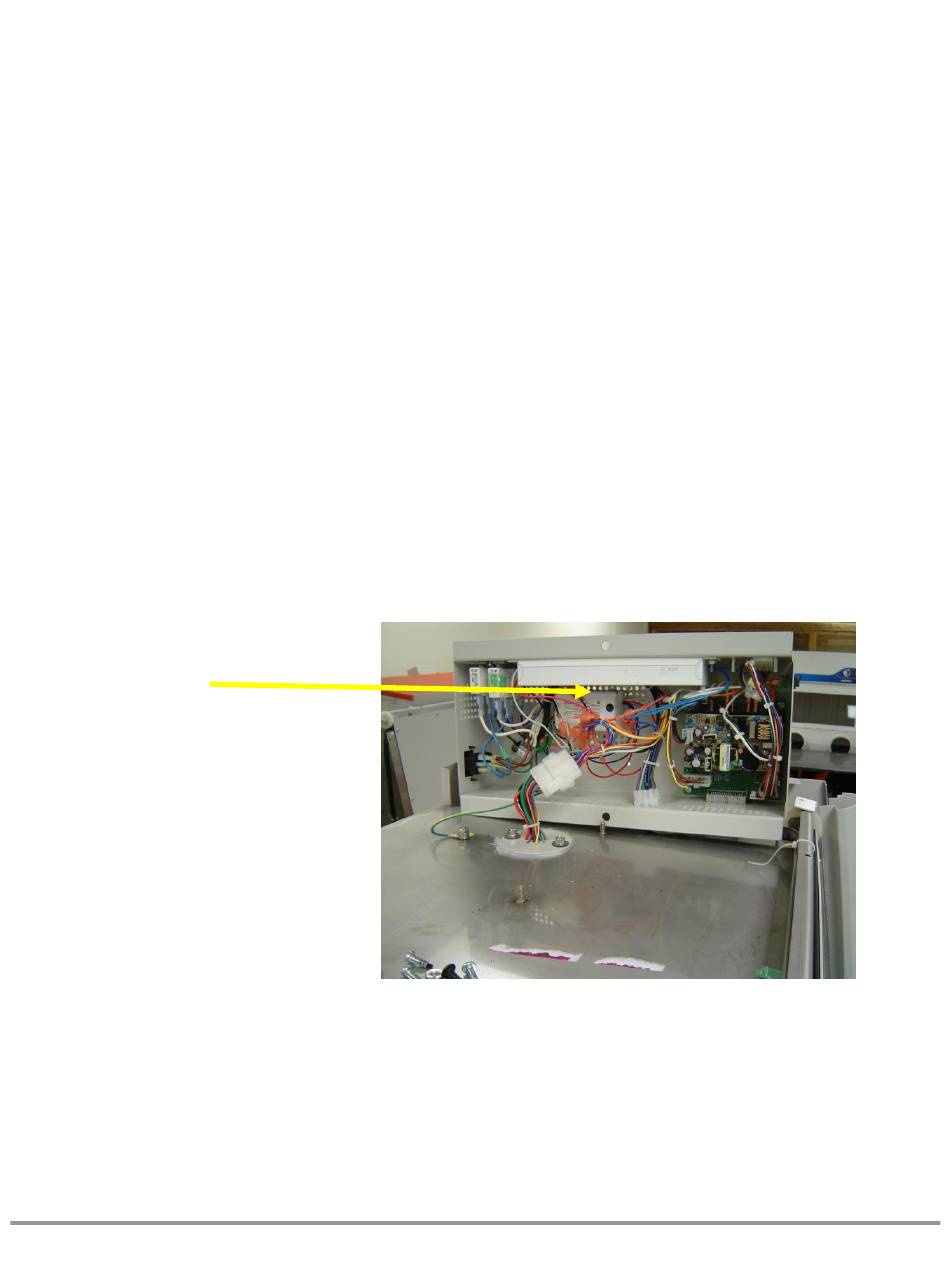

4. Locate the fluorescent lamp ballast in the module. The UV lamp ballast mounts next
to the fluorescent ballast, as shown in Figure 1.
UV Ballast
150
No. 3858500, -01, -02
Product Service 1-800-522-7658
Figure 1
