Type A Exhaust Damper Seal
Installation
The exhaust damper seal is a silicone seal, permanently bolted to the plenum inside the
cabinet.
CAUTION: The damper seal is permanently attached to the plenum in the
cabinet. NEVER attempt to pull the seal out of the cabinet; the seal will be
damaged or destroyed.
CAUTION: The inside surface of the damper seal may be contaminated. DO
NOT disrupt the seal until the cabinet has been properly decontaminated.
Installing the seal

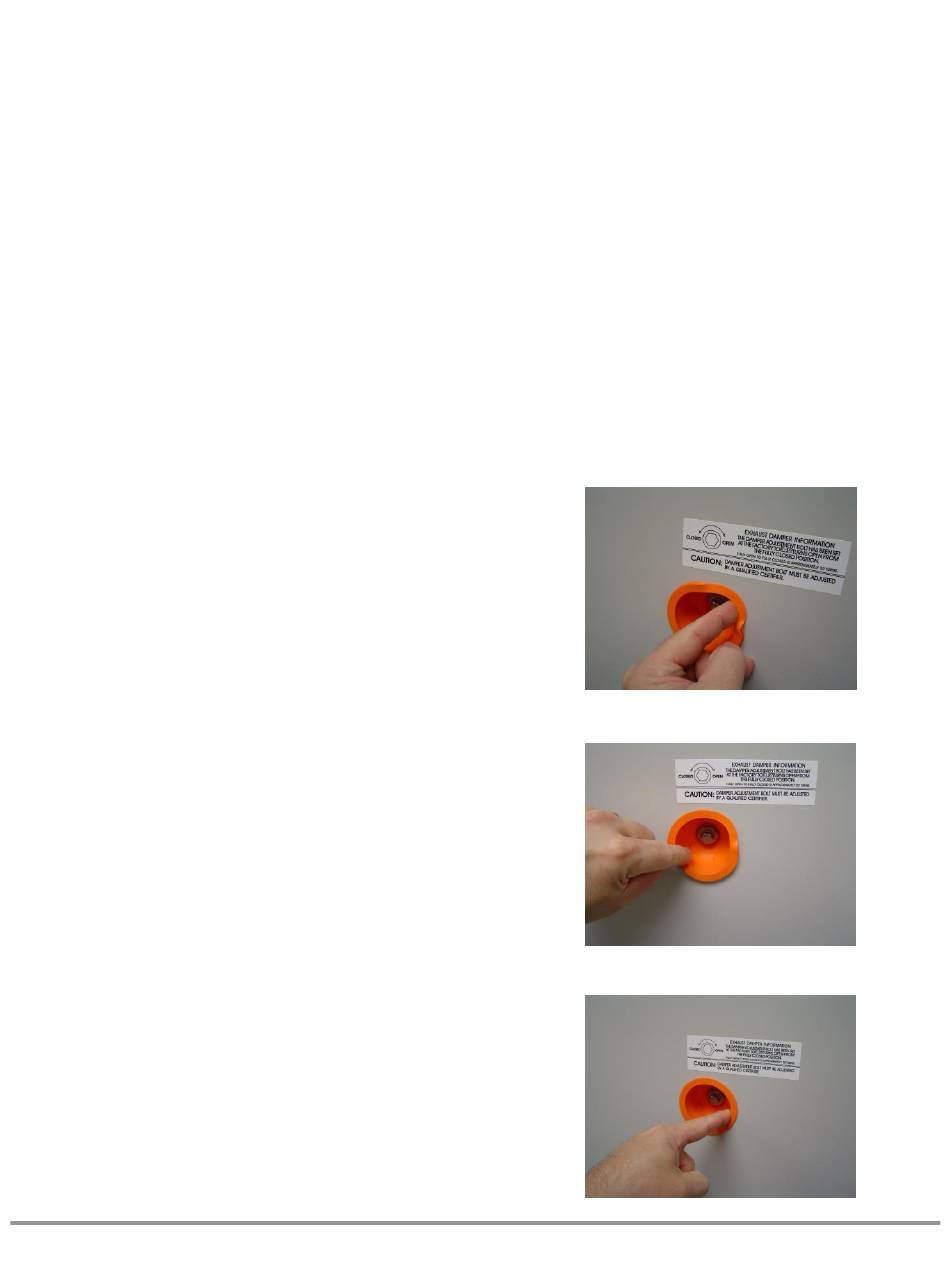

1. Properly orient the inner and outer sealing flange
at one location on the hole in the blower plenum
cover, as shown in Figure 7-11.
2. Work the seal around the hole, ensuring the
flanges are properly oriented, as shown
in Figure 7-12.
3. When the entire seal has been "set", run a finger
around the edge of the seal to ensure it is properly
oriented, as shown in Figure 7-13.
104 Product Service 1-800-522-7658
Figure 6-11
Figure 6-12
Figure 6-13
