Logic+ Data Plate

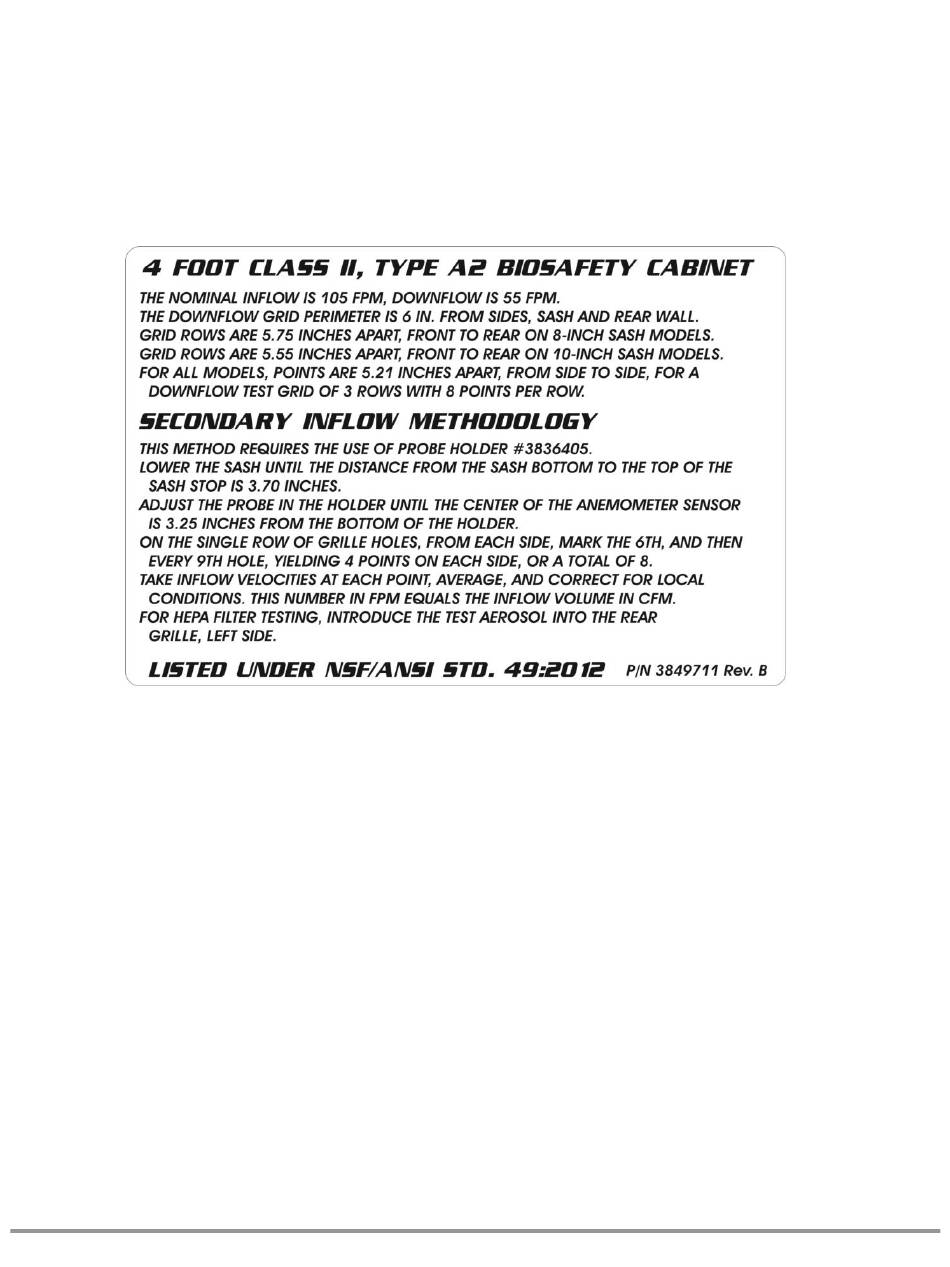

The Logic+ Data Plate contains much of the information required to certify the
unit. Information on the plate includes nominal inflow and downflow velocity
settings, a description of how to establish the downflow grid and the secondary
inflow methodology are also included on the data plate, as shown below. The
plate is located in the upper left corner of the dress panel.
Figure 1-6
Product Service 1-800-522-7658 39
