- Page 1 Protector Downdraft Powder Stations Models 3410000 3410001 3410020 3410021 3410022 3410023 3410024 3410025...
- Page 2 Labconco Corporation is held harmless with respect to user’s compliance with such regulations.
-
Page 3: Table Of Contents
CHAPTER 1: INTRODUCTION CHAPTER 2: PREREQUISITES Space Requirements Clearance Location Requirements Exhaust Requirements Electrical Requirements CHAPTER 3: GETTING STARTED Unpacking the Station CHAPTER 4: PERFORMANCE FEATURES AND SAFETY PRECAUTIONS Directional Airflow Prefilter HEPA Filter Blower Station Air Intake and Exhaust Safety Precautions 10-11 CHAPTER 5: USING THE STATION... - Page 4 CHAPTER 6: MAINTAINING THE STATION Routine Maintenance Schedule Service Operations 15-17 Prefilter Replacement HEPA Filter Replacement Resetting a Circuit Breaker CHAPTER 7: TROUBLESHOOTING APPENDIX A: COMPONENTS APPENDIX B: DIMENSIONS APPENDIX C: SPECIFICATIONS APPENDIX D: ACCESSORIES...
-
Page 5: Chapter 1: Introduction

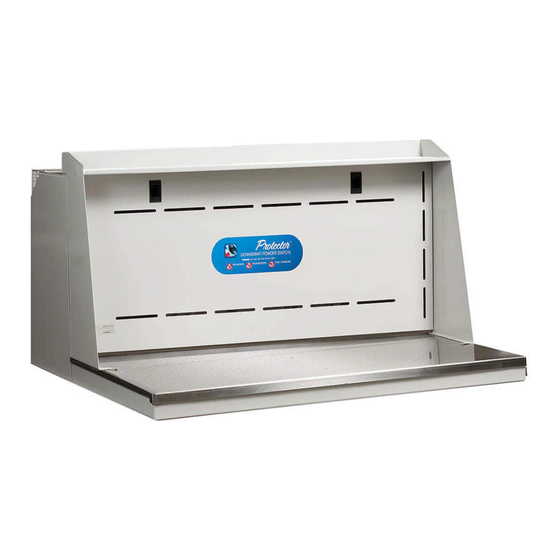

Congratulations on the purchase of a Labconco Protector Downdraft Powder Station. The Station is designed to capture and collect fingerprint powder to prevent its spread in the room environment and on you while dusting for prints. The Protector Station is the result of years of experience in manufacturing laboratory equipment, and users like you suggested many of its features to us. -
Page 6: Chapter 2: Prerequisites
Before you install the downdraft station, you need to plan the site for installation. Examine the location where you intend to install the station. You must be certain that the area is level and of solid construction. In addition, a source of electrical power must be located near the installation site. -
Page 7: Exhaust Requirements
Chapter 2: Prerequisites Exhaust Requirements As stated earlier, the exhaust discharge of the station, located on the upper left side on the back of the station should never be obstructed. The station is designed to have its back surface pushed against a wall, but the top of the station should have no obstructions within 6 inches of the exhaust discharge. -
Page 8: Unpacking The Station
Note: United States Interstate Commerce Commission rules require that claims be filed with the delivery carrier within fifteen (15) days of delivery. Do not return goods without the prior authorization of Labconco. Unauthorized returns will not be accepted. If the station was damaged in transit, you must file a claim directly with the freight carrier. -
Page 9: Chapter 3: Getting Started
Chapter 3: Getting Started The work surface and work surface pan are shipped unassembled to the filter module. To assemble the station: 1) Engage the notches on the front of the pan with the pins located in the bottom corners of the filter module, as shown in Figure 3-1. Figure 3-1 Engage the work surface pan With the lower pins on the side... - Page 10 Chapter 3: Getting Started 3) Install both side shields by engaging the notches in each panel into the gap between the front panel and the filter module. Ensure the side panel pin engages the oversized holes on the edges of the work surface. Figure 3-3 Ensure the pins go into the...
- Page 11 The Protector Downdraft Powder Station operates using the following principles: Directional airflow. Prefiltration of large particulates by an inlet prefilter. Filtration and retention of particulates by a High Efficiency Particulate Air (HEPA) filter. The major components in the system are: ...
-
Page 12: Chapter 4: Performance Features And Safety Precautions
Chapter 4: Performance Features and Safety Precautions Directional Airflow Directional airflow plays a critical role in Downdraft Powder Station performance. Air is drawn through the perforated work surface and the filter cover, on the front of the unit. The air then flows through the prefilter, located behind the filter cover, and then the HEPA filter. -
Page 13: Blower
99.99% efficient in removing particles 0.3 micron. Note: The HEPA filter media is very fragile. DO NOT touch the media. If you think the media of a HEPA filter is damaged, Call Labconco’s Product Service Department at 1-800-522-7658 or 816-333-8811. -
Page 14: Safety Precautions
Avoid puncturing the HEPA filter during installation or normal operation. If you suspect that a HEPA filter has been damaged, DO NOT use the station; contact Labconco at 800-821- 5525 or 816-333-8811 for further information. The HEPA filter in the station will gradually accumulate airborne particulate matter from the powder and from airborne particulates. - Page 15 Do not wear loose fitting clothes that can catch on internal surfaces. After service, verify safe state of use before using the product. Contact Labconco’s Product Service Department for questions on determining safe state of this product. Product Service 1-800-522-7658...
-
Page 16: Chapter 5: Using The Station
Fan Switch The fan switch is located on the upper right rear of the station, as shown in Figure 5-1. Turning the switch to the “Fan” position starts the blower, drawing air into and through the station. Figure 5-1 Fan Switch Filter System Light Filter System Light The filter system light will illuminate if the airflow across the filters is... -
Page 17: Dusting In The Station
Chapter 5: Using The Station Dusting in the Station Start-up Turn the fan switch to “Fan.” Check the condition of the prefilter and note if the filter system light is on. Ensure that the perforated work surface is not obstructed. ... -
Page 18: Chapter 6: Maintaining The Station
Operate the system blower, noting if the filter system light turns on. Monthly (or more often as required) Using a damp cloth, or LabSolutions Glass & Surface Wipes, Labconco part # 1570000; clean the exterior surfaces of the station, particularly the perforated work surface, to remove any accumulated dust. -
Page 19: Service Operations
Do not damage internal wiring or other components while service panels are removed. If internal wiring or components are damaged, do not restore power, contact Labconco’s Product Service Department immediately. Wear all required Personnel Protective Equipment (PPE) during service operations. At a minimum, this includes: eye protection, breathing protection, skin protection. -
Page 20: Hepa Filter Replacement
Chapter 6: Maintaining The Station HEPA Filter Replacement: 1. Remove the prefilter as described previously. 2. Using a nut driver or wrench, remove the HEPA filter clamps, as shown in Figure 6-2. 3. Pull the HEPA filter away from the filter frame, and install the replacement filter, with its gasket facing the filter frame. -
Page 21: Resetting A Circuit Breaker
Chapter 6: Maintaining The Station Resetting a Circuit Breaker: To reset the circuit breaker located on the top rear of station, depress the white button until it sets. Figure 6-3 Circuit Breaker Product Service 1-800-522-7658... -
Page 22: Chapter 7: Troubleshooting
Refer to the following table if the station fails to operate properly. If the suggested corrective actions do not solve the problem, contact Labconco for additional assistance. PROBLEM CAUSE CORRECTIVE ACTION Station blower Unit not plugged Plug the station into appropriate won’t turn on... -
Page 23: Appendix A: Components
Downdraft Powder Station Replacement Parts Item Quantity Part No. Description 3768903 Prefilter 6938100 HEPA Filter 3897300 Pressure Switch 1307000 Rocker Switch 1331300 Power Cord, 115 VAC (N America) 1332600 Power Cord, 230 VAC (UK) 1336100 Power Cord, 230 VAC (EN (Schuko)) 1332700 Power Cord, 115 VAC (China, Australia) 3932600... -
Page 24: Appendix B: Dimensions
Accessory Shelf 25.8" 4.4" (655mm) (112mm) 16.0" (406mm) Dimension “A”: 2-foot wide units – 24.0" 3-foot wide units – 36.0" 15.1" 18.8" (384mm) (478mm) 1.9" (48mm) “A” SIDE FRONT Product Service 1-800-522-7658... -
Page 25: Appendix C: Specifications
Electrical Data Model # Requirements Energy Use 3410000, -01 115 VAC, 60 Hz, 1 Amp 100W 3410020 through -25 230 VAC, 50/60 Hz, 0.5 Amp 100W Environmental Conditions Indoor use only. Maximum altitude: 6562 feet (2000 meters). Ambient temperature range: 41° to 104°F (5° to 40°C). ... -
Page 26: Appendix D: Accessories
Transition Kit (# 3413300) Allows two separate stations to be tied together. 1 lb. (0.5kg). Product Service 1-800-522-7658...
