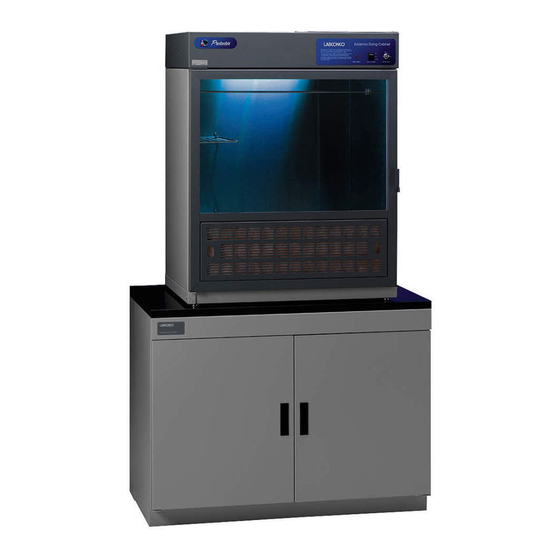

Labconco Protector 3390000 User Manual

Benchtop evidence drying cabinets
Hide thumbs Also See for Protector 3390000:
Table of Contents

Advertisement

Quick Links

Download this manual
Protector
Benchtop Evidence
Drying Cabinets
Models
3390000
3390001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Protector 3390000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Labconco Protector 3390000

Summary of Contents for Labconco Protector 3390000

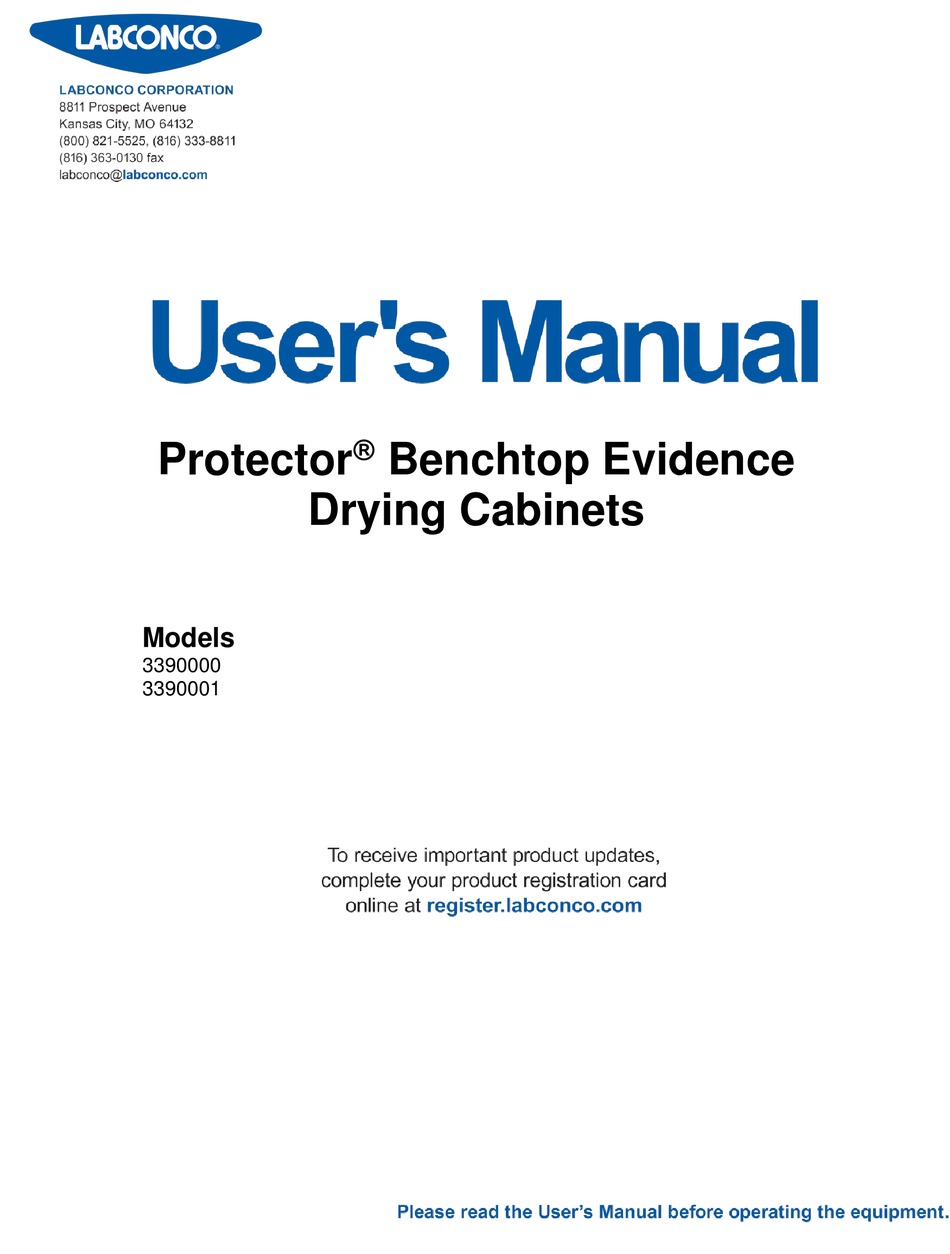

  • Page 1  Protector Benchtop Evidence Drying Cabinets Models 3390000 3390001...
  • Page 2 Labconco Corporation is held harmless with respect to user’s compliance with such regulations.

  • Page 3: Table Of Contents

    CHAPTER 1: INTRODUCTION CHAPTER 2: PREREQUISITES Space Requirements Clearance Location Requirements Exhaust Requirements Electrical Requirements CHAPTER 3: GETTING STARTED Unpacking the cabinet Preparing the Evidence Drying Cabinet for Operation Initial Operation CHAPTER 4: PERFORMANCE FEATURES AND SAFETY PRECAUTIONS Directional Airflow Optional Evidence Prefilters Prefilters HEPA Filters...
  • Page 4 CHAPTER 6: MAINTAINING THE CABINET Routine Maintenance Schedule Service Operations Door Evidence Prefilter Replacement Door Prefilter Replacement Cabinet Evidence Prefilter Replacement Cabinet Prefilter Replacement Granular Activated Carbon and HEPA Filter Replacement Changing the UV Lamp Resetting a Circuit Breaker Setting the Speed Control CHAPTER 7: TROUBLESHOOTING 23-24 APPENDIX A: COMPONENTS...

  • Page 5: Chapter 1: Introduction

    Congratulations on the purchase of a Labconco Protector Evidence Drying Cabinet. The cabinet is designed to protect you, and the room environment from biohazardous aerosols and offensive odors while drying evidence. The Protector Series cabinet is the result of years of experience in manufacturing laboratory equipment, and users like you suggested many of its features to us.

  • Page 6: Chapter 2: Prerequisites

    Before you install the evidence drying cabinet, you need to plan the site for installation. Examine the location where you intend to install the cabinet. You must be certain that the area is level and of solid construction. In addition, a source of electrical power must be located near the installation site.

  • Page 7: Location Requirements

    Chapter 2: Prerequisites Location Requirements Note: The cabinet is equipped with leg levelers to ease level cabinet installation. It should be located on a flat surface for proper cabinet alignment and door operation. Exhaust Requirements If you intend to connect the cabinet to the optional Exhaust Connection Kit, first examine the location to ensure that it accommodates the cabinet’s exhaust duct.

  • Page 8: Chapter 3: Getting Started

    Do not return goods without the prior authorization of Labconco. Unauthorized returns will not be accepted. If the cabinet was damaged in transit, you must file a claim directly with the freight carrier. Labconco Corporation and its dealers are not responsible for shipping damages. Product Service 1-800-522-7658...

  • Page 9: Preparing The Evidence Drying Cabinet For Operation

     Product Registration Card If you did not receive one or more of the components listed for the cabinet, or if any of the components are damaged, contact Labconco Corporation immediately for further instructions. 3. Using a step ladder, remove the tape and/or packaging material around the top of the unit.

  • Page 10: Initial Operation

    Close the door, and the UV light should relight. Turn the UV Security Keylock to the “OFF” position, and the UV light will turn off. If the UV light does not work as described, call Labconco’s Product Service Department at 1-800-522-7658 or 816-333-8811. Product Service 1-800-522-7658...
  • Page 11 The Protector evidence drying cabinet operates using the following principles:  Directional airflow.  Prefiltration of large particulates by an inlet prefilter (in the door) and an exhaust prefilter (in the top of the liner).  Filtration and retention of particulates by a High Efficiency Particulate Air (HEPA) filter.

  • Page 12: Chapter 4: Performance Features And Safety Precautions

    Chapter 4: Performance Features and Safety Precautions Directional Airflow Directional airflow plays a critical role in evidence drying cabinet performance. Air is drawn into the inlet prefilter, located on the bottom of the door. The filtered air then flows upward through the liner, passing over the evidence to be dried.

  • Page 13: Optional Evidence Prefilters

    Note: The HEPA filter media is very fragile. DO NOT touch the media. If you think the media of a HEPA filter is damaged, DO NOT USE THE CABINET. Call Labconco’s Product Service Department at 1-800-522-7658 or 816-333-8811. Note: HEPA Filters are only effective against particulate material. Gases will pass through the filter.

  • Page 14: Blower

    Chapter 4: Performance Features and Safety Precautions Blower The blower assembly pulls room air into the intake prefilter on the front of the door, through the liner and exhaust prefilter, and then forces it through the HEPA and granular activated carbon filter. The evidence drying cabinet uses a motorized, backward curved fan for quiet, energy efficient operation.

  • Page 15: Safety Precautions

    Avoid puncturing the HEPA filter during installation or normal operation. If you suspect that a HEPA filter has been damaged, DO NOT use the cabinet; contact Labconco at 800-821-5525 or 816-333-8811 for further information. The HEPA filters in the cabinet will gradually accumulate airborne particulate matter from the items placed in the cabinet.
  • Page 16 Chapter 4: Performance Features and Safety Precautions  Always dispose of disinfecting solutions in accordance with local and national laws.  DO NOT allow bleach or disinfectants with high concentrations of free chlorine to contact the stainless steel components of the cabinet for a long period of time.

  • Page 17: Chapter 5: Using The Cabinet

    Fan/UV Light Switch The cabinet Fan/UV Light switch is located on the upper front of the cabinet, as shown in Figure 5-1. Turning the switch to the “Fan” position starts the blower, drawing air into through the cabinet. Turning the switch to the “UV On”...

  • Page 18: Shelf Operation

    Chapter 5: Using The Cabinet Figure 5-1 Shelf Operation The three drying shelves on the left side wall can be positioned horizontally to dry small pieces of evidence, or swung down, against the left side wall of the liner, if needed. To position the shelves in the up (horizontal) position: 1.

  • Page 19: Drying In The Cabinet

    Chapter 5: Using The Cabinet Drying in the Cabinet Start-up  Turn off UV light and turn the UV Security switch to “OFF”. Remove the key, and store it in a safe place.  Turn the switch to “Fan”.  Check the condition of the prefilters. If your protocol requires the use of evidence prefilters, ensure a new set of both door and cabinet prefilters has been properly installed, according to the instructions in Chapter 6: Maintaining Your Cabinet.
  • Page 20 Chapter 5: Using The Cabinet Unloading Evidence  Wear a long sleeved lab coat with knit cuffs and over-the-cuff rubber gloves. Use protective eyewear. Wear a protective mask if appropriate.  Carefully remove objects in the cabinet. Evidence that was considered biohazardous when loaded should be handled as biohazardous.

  • Page 21: Chapter 6: Maintaining The Cabinet

     Using an appropriate glass cleaner, or LabSolutions Glass & Surface Wipes, Labconco part # 1570000; clean the door and the surface of the UV lamp.  Operate the cabinet blower, noting if the Filter System Light turns on.

  • Page 22: Service Operations

    Chapter 6: Maintaining the Cabinet Service Operations Door Evidence Prefilter Replacement: 1. Pull the prefilter frame straight away from the door, as shown in Figure 6-1. 2. Wearing appropriate gloves, and working on the inside surface of the prefilter frame, carefully pull out the Evidence prefilter. The Evidence prefilter can now be examined for trace evidence, or stored with the evidence in a sealed bag for future reference.

  • Page 23: Cabinet Evidence Prefilter Replacement

    Chapter 6: Maintaining the Cabinet Cabinet Evidence Prefilter Replacement: 1. Open the cabinet’s glass door, and locate the cabinet prefilter frame on the upper right side of the liner. See Figure 6-2. 2. To access the prefilter, loosen the captive thumbscrew until it is released. The front of the prefilter frame will swing down.

  • Page 24: Granular Activated Carbon And Hepa Filter Replacement

    Chapter 6: Maintaining the Cabinet Granular Activated Carbon and HEPA Filter Replacement: 1. Use an appropriate stepladder release the two bungee cords securing the granular activated and carbon and HEPA filters, as shown in Figure 6-3. 2. When handling used filters or prefilters, always wear appropriate personnel protective equipment.

  • Page 25: Changing The Uv Lamp

    Chapter 6: Maintaining the Cabinet Changing the UV Lamp: Note: For optimum performance, the UV lamp should be changed on an annual basis. The UV lamp and the work area of the cabinet must be thoroughly decontaminated before removing the lamp. 1.

  • Page 26: Resetting A Circuit Breaker

    Chapter 6: Maintaining the Cabinet Resetting a Circuit Breaker: To reset any of the circuit breakers located on the top rear of cabinet, depress the white button until it sets. Figure 6-4 Setting the Speed Control Adjustment of the speed control varies the volume of air drawn through the liner while the unit is operating.

  • Page 27: Chapter 7: Troubleshooting

    Refer to the following table if the cabinet fails to operate properly. If the suggested corrective actions do not solve the problem, contact Labconco for additional assistance. PROBLEM CAUSE CORRECTIVE ACTION Cabinet blower and Unit not plugged into Plug the cabinet into appropriate lights won’t turn on...
  • Page 28 Chapter 6: Maintaining the Cabinet PROBLEM CAUSE CORRECTIVE ACTION Blockage of the Check the inlet prefilters; replace if Filter System Light turns on intake prefilters needed. Ensure that there is no obstruction of the exhaust on top of the cabinet. HEPA filter loading Replace the HEPA filter.

  • Page 29: Appendix A: Components

    Evidence Drying Cabinet Replacement Parts Item Quantity Part No. Description 3872600 Door Prefilter, package of 6 3872601 Door Evidence Prefilter, package of 10 3872700 Cabinet (top) Prefilter, package of 6 3872701 Cabinet (top) Evidence Prefilter, package of 10 6938100 HEPA Filter 6938200 Granular Activated Carbon Filter 1270100...

  • Page 30: Appendix B: Dimensions

    Interior Dimensions: 36.0" (914 mm)H x 32.3" (820 mm)W x 26.5" (673 mm)D Product Service 1-800-522-7658...

  • Page 31: Appendix C: Specifications

    Electrical Data Model # Requirements Energy Use 3390000 115 VAC, 60 Hz, 6 Amps 100W 3390001 230 VAC, 50/60 Hz, 3 Amps 100W Environmental Conditions  Indoor use only.  Maximum altitude: 6562 feet (2000 meters).  Ambient temperature range: 41° to 104°F (5° to 40°C). ...

  • Page 32: Appendix D: Accessories

    Door Evidence Prefilters (#3951802) Package of 10 each Door Evidence prefilters. Evidence prefilters are single use polyester prefilters to be examined and or retained for trace evidence. Precut to fit the door prefilter frame. 1 lb. (0.5kg). Cabinet Evidence Prefilters (# 3951803) Package of 10 each Cabinet Evidence prefilters.
  • Page 33 Appendix C: Specifications Security Tags (# 3902400) Package of 100 each tamper-evident, labeled tags. Tags irreversibly indicate if the cabinet door has been opened during the drying cycle. 1 lb. (0.5kg). Hanging Clips (# 3869500) Package of 10 each hanging clips, that allow small articles to be hung from the cabinet’s hanger rod or shelf.
