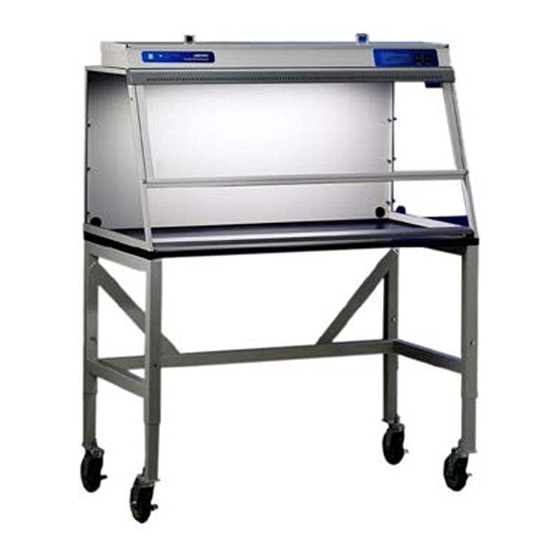

User's Manual
Purifier
Non-Ventilated
®
PCR & Tissue Culture Enclosures
Models
3951400
3951420
3952400
3952420
To receive important product updates,
complete your product registration card
online at register.labconco.com
Please read the User's Manual before operating the equipment.
Labconco Corporation
8811 Prospect Avenue
Kansas City, MO 64132-2696
800-821-5525, 816-333-8811
FAX 816-363-0130
E-MAIL
labconco@labconco.com
HOME PAGE www.labconco.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Labconco Purifier 3951400
Summary of Contents for Labconco Purifier 3951400
- Page 1 PCR & Tissue Culture Enclosures Models 3951400 3951420 3952400 3952420 To receive important product updates, complete your product registration card online at register.labconco.com Labconco Corporation 8811 Prospect Avenue Kansas City, MO 64132-2696 800-821-5525, 816-333-8811 FAX 816-363-0130 E-MAIL labconco@labconco.com HOME PAGE www.labconco.com...
- Page 2 This limited warranty covers parts and labor, but not transportation and insurance charges. In the event of a warranty claim, contact Labconco Corporation or the dealer who sold you the product. If the cause is determined to be a manufacturing fault, the dealer or Labconco Corporation will repair or replace all defective parts to restore the unit to operation.
-
Page 3: Table Of Contents
ORIGINAL INSTRUCTIONS ABLE ONTENTS CHAPTER 1: INTRODUCTION Polymerase Chain Reaction (PCR) Definition About This Manual Typographical Conventions CHAPTER 2: PREREQUISITES Support Requirements Location and Air Current Requirements Electrical Requirements Space Requirements CHAPTER 3: GETTING STARTED Unpacking Your Enclosure Installing the Enclosure on a Supporting Structure & Work Surface Connecting the Electrical Supply Sealing the Enclosure to the Work Surface CHAPTER 4: FEATURES AND SAFETY PRECAUTIONS... - Page 4 CHAPTER 8: TROUBLESHOOTING APPENDIX A: REPLACEMENT PARTS APPENDIX B: DIMENSIONS APPENDIX C: SPECIFICATIONS DECLARATION OF CONFORMITY...
-
Page 5: Chapter 1: Introduction
HAPTER NTRODUCTION ® Congratulations on your purchase of a Labconco Purifier Passive PCR Enclosure or Purifier Tissue Culture Enclosure. Your non-ventilated enclosure is designed to reduce cross-contamination in laboratory applications. The Purifier Passive PCR Enclosure and Purifier Tissue Culture Enclosure offer a UV light for disinfecting the interior and an interior switched electrical outlet. -
Page 6: About This Manual
Chapter 1: Introduction range of applications from DNA fingerprinting to medical tests to identify diseases from the infectious agent’s DNA. See also nucleic acid. The Concise Columbia Encyclopedia is licensed from Columbia University Press. Copyright © 1995 by Columbia University Press. All rights reserved. About This Manual This manual is designed to help you learn how to install, use, and maintain your non-ventilated enclosure. -
Page 7: Typographical Conventions
Chapter 1: Introduction Appendix B: Dimensions show all of the dimensions for the enclosures. Appendix C: Specifications contains the electrical requirements. Wiring diagrams are also included in this section. Typographical Conventions Recognizing the following typographical conventions will help you understand and use this manual: ... -
Page 8: Chapter 2 Prerequisites
HAPTER REREQUISITES Before you install the enclosure, carefully examine the location. You must be certain that the area is level and of solid construction. In addition, a dedicated source of electrical power should be located near the installation site to power the enclosure. -
Page 9: Electrical Requirements
Chapter 2: Prerequisites Do not position the unit so that it is difficult to operate the main disconnect device. Ne placez pas l'appareil de sorte qu'il est difficile de faire fonctionner le dispositif principal de déconnexion. Electrical Requirements Standard duplex electrical receptacles should be nearby for connecting the non- ventilated Purifier Passive PCR Enclosure or Purifier Tissue Culture Enclosure. -
Page 10: Chapter 3 Getting Started
HAPTER ETTING TARTED Now that the site for your non-ventilated Purifier PCR or Purifier Tissue Culture Enclosures is properly prepared, you are ready to unpack, inspect and install your non-ventilated enclosure. Read this chapter to learn how to: Unpack and move the enclosure. ... -
Page 11: Unpacking Your Enclosure
The front of the non-ventilated enclosure should be aligned within 1/8" of the front of the work surface. Mounting holes are provided in the Labconco accessory work surfaces to secure the enclosure. - Page 12 Chapter 3: Getting Started Work Surface and Non-Ventilated Enclosure Installation 1. Level the base cabinets and the work surface. Work surface should be placed flush with the front of the base cabinet as shown in Figure 3-1. 2. Position the work surface in its intended location and with the front of the work surface, (wide flange), towards you.
-
Page 13: Connecting The Electrical Supply
Chapter 3: Getting Started Connecting the Electrical Supply A grounded receptacle should be nearby for connecting the Purifier PCR or Purifier Tissue Culture Enclosures. Please review Chapter 2 for electrical prerequisites. All wiring for the building electrical outlets SHOULD be performed by a licensed electrician and conform to all local codes. -
Page 14: Chapter 4: Features And Safety Precautions
AFETY RECAUTIONS Features Labconco engineered the Purifier Passive PCR Enclosure and Purifier Tissue Culture Enclosure to provide a non-ventilated, circulation-free work area to reduce cross-contamination in laboratory applications. A spacious interior and convenience outlet give ample room for media preparation and equipment used for procedures. - Page 15 Chapter 4: Features and Safety Precautions 9, Internal 10, Not Shown Figure 4-1 Features 1. Ergonomic Slope and Front of 20° provides maximum visibility, and comfort, reduces glare, thereby minimizing operator fatigue. 2. Internal Depth of 23" and interior height of 22" provides necessary depth and height to support procedures and other auxiliary equipment without extending outside the non-ventilated enclosure.
-
Page 16: Safety Precautions
Chapter 4: Features and Safety Precautions 120, 240 minutes and infinitely ON. It is easily changed by selecting the time necessary on the control panel. 8. UV Sash Closure Panel provides added safety to prevent access and air currents inside the non-ventilated enclosure when the UV light is activated. The panel must be in place for the UV light to operate. -
Page 17: Chapter 5: Using Your Enclosure
HAPTER SING NCLOSURE Planning Thoroughly understand procedures and equipment required before beginning work. Arrange for minimal disruptions, such as room traffic or entry into the room while the enclosure is in use. Start-up Clean and surface disinfect the inside of the enclosure. Use UV light as required for protocol. -
Page 18: Chapter 6: Maintaining Your Enclosure
HAPTER AINTAINING NCLOSURE Now that you have an understanding of how to work in the non-ventilated enclosure, we will review the suggested maintenance schedule and common service operations. Routine Maintenance Schedule Weekly Clean the enclosure interior appropriate for the application. Monthly (or more often as required) ... -
Page 19: Fluorescent Light Replacement
Chapter 6: Maintaining Your Enclosure Fluorescent Light Replacement 1. Disconnect power. 2. Locate the two Phillips machine screws on top of the light and remove. Lift up the light assembly. 3. Rotate and remove the old fluorescent lamp. 4. Reinstall the new fluorescent lamp, light and screws in reverse order. 5. -
Page 20: Chapter 7: Accessorizing Your Enclosure
HAPTER CCESSORIZING NCLOSURE There are several ways to accessorize the enclosure for your individual requirements. These include the addition of accessory work surfaces, storage cabinets, base stands and mobile stands. 1. Work Surfaces An optional dished work surface is available. Dished work surfaces are contoured to fit the enclosure to contain spills. -
Page 21: Storage Cabinets
Chapter 7: Accessorizing Your Enclosure 2. Storage Cabinets SOLVENT ACID Size/Description Dual Doors Right Hinge Left Hinge Dual Doors Right Hinge Left Hinge 48" 9902000 9901000 36" 9902100 9901100 30" 9902200 9901200 24" 9902300 9902400 9901300 9901500 18" 9901400 9901600 12"... - Page 22 HAPTER ROUBLESHOOTING Refer to the following table if your enclosure fails to operate properly. If the suggested corrective actions do not solve your problem, contact Labconco for additional assistance. PROBLEM CAUSE CORRECTIVE ACTION Circuit breaker(s) Reset or replace circuit breaker.
- Page 23 PPENDIX EPLACEMENT ARTS The following illustrations indicate the replacement parts. Product Service 1-800-522-7658...
- Page 24 Appendix A: Replacement Parts Item Qty. Part Number Description 3906500 Glass, Side Short 3906102 Glass, Sash 4' Short 3905602 Lower Foil 4' 2.3 Ft. 6913700 Wiper, Sash 1927403 Spring, Compression Sash Latch 3906700 Latch Bracket 6916500 Latch Sash 1893206 Screw, #8-32 x .38 Phil, SS, Type F 3945200 Sash Assembly 4' 3907400...
- Page 25 Appendix A: Replacement Parts 15, Interior Light (3 Pos.) Figure A-1 Interior Figure A-2 Product Service 1-800-522-7658...
- Page 26 PPENDIX IMENSIONS See the following dimensions. Product Service 1-800-522-7658...
- Page 27 PPENDIX PECIFICATIONS This Appendix contains technical information about all the Purifier Passive PCR Enclosures and Purifier Tissue Culture Enclosures including electrical specifications and environmental conditions. Electrical Specifications 10 Amps, 115V, 60 Hz 5 Amps, 230V, 50/60 Hz The auxiliary outlet load is 8 Amps on 115V and 4 Amps on 230V Environmental Conditions ...
- Page 28 Product Service 1-800-522-7658...
