3 Basic System Operation
disarms his partition, the corridor is also disarmed in order to give the user access to his room. This is because the
common zone is active only when both partitions are armed.
Partition 1 armed

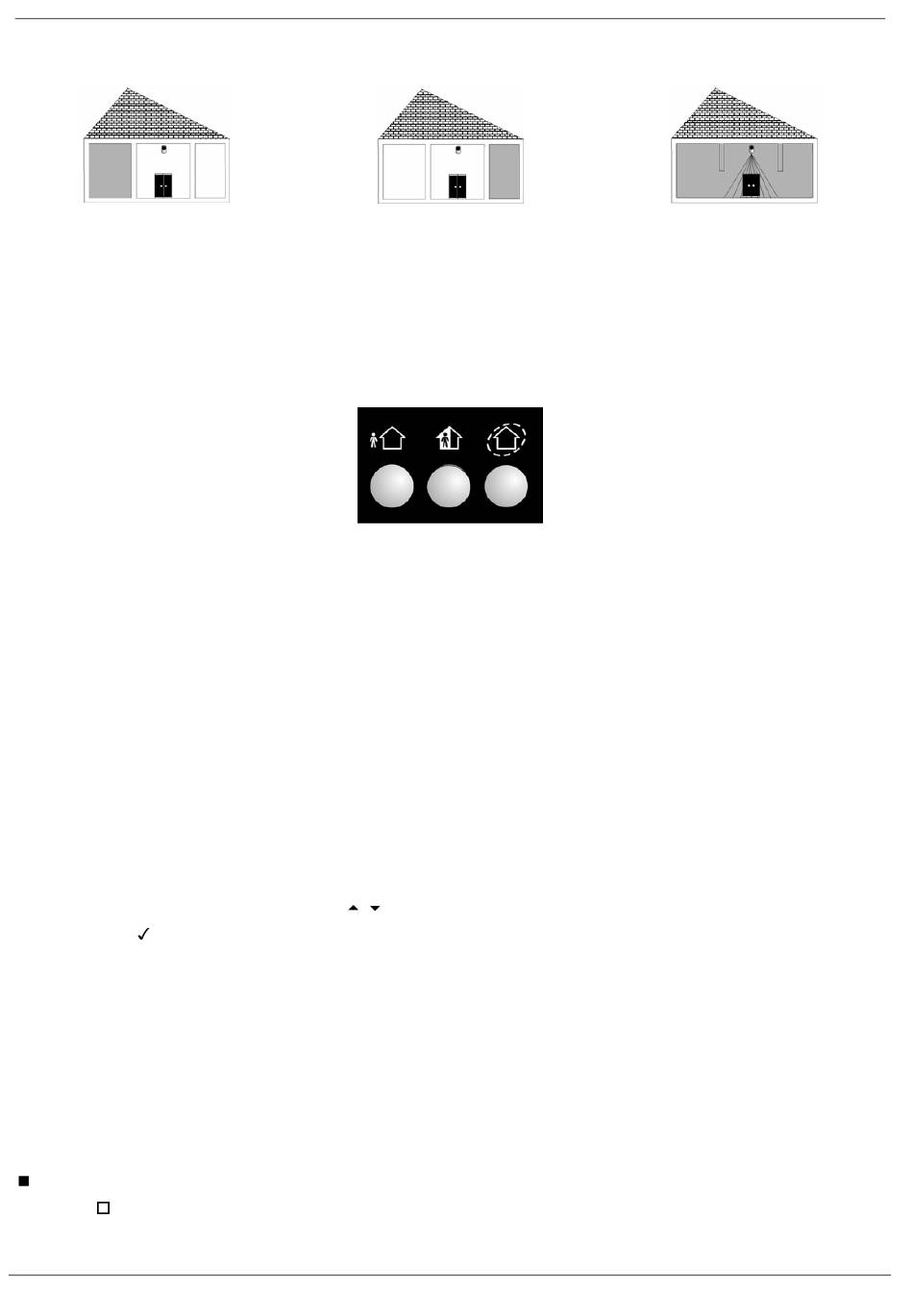

Figure 3-8: Partition Arming Modes: Corridor Example.
Each arming mode has a separate exit and entry delay.
Note: The entry delay timeout started by an Entry/Exit common zone is such as defined for Full Arming.
3.11.2. Arming Keys
The Arming keys enable you to arm the system using any of the three arming methods: Full, Partition 1, and Partition 2.
Figure 3-9: Arming Keys
3.11.3. Partition Arming
To arm a partition using the LCD Front Panel keypad:
1. Check if the system is ready to arm.
2. Press the Partition 1 arming key on the keypad to arm Partition 1.
- or -
Press the Partition 2 arming key on the keypad to arm Partition 2.
3. If One-Key Arming is disabled, enter your user code.
To arm a partition using the hardwire LCD keypad:
1. Check if the system is ready to arm.
2. Press the Part arming key on the keypad.
3. If One-Key Arming is disabled, enter your user code.
4. Use the menu navigation buttons ( / ) to choose the required arming method.
5. Press ; the exit delay begins to count down. At the end of the exit delay, the system/partition is
armed.
3.11.4. Combination Arming
The system allows you to activate a combination of two arming modes. When one user leaves, he arms his partition (1
or 2). When the second user leaves, he arms the second partition; the commons zones are activated.
Note: If the only zones open are common zones, the system is still ready to arm.
3.11.5. Disarming
When an entry/exit sensor is tripped, the entry delay counts down; each partition has its own entry delay.
To disarm the system:
Enter a valid user code.
If both partitions are armed, and your user code is assigned to both partitions, the system
prompts Select Partition. In this case, press one of the arming keys on the front panel keypad
iConnect Installation Manual
Partition 2 armed
Full / Partition 1 / Partition 2
Both partitions armed
25
