Pir Sensors (El-2600/El-2600Pi/El-2645/El-2645Pi) - Electronics Line 3000 iConnect Installation Manual

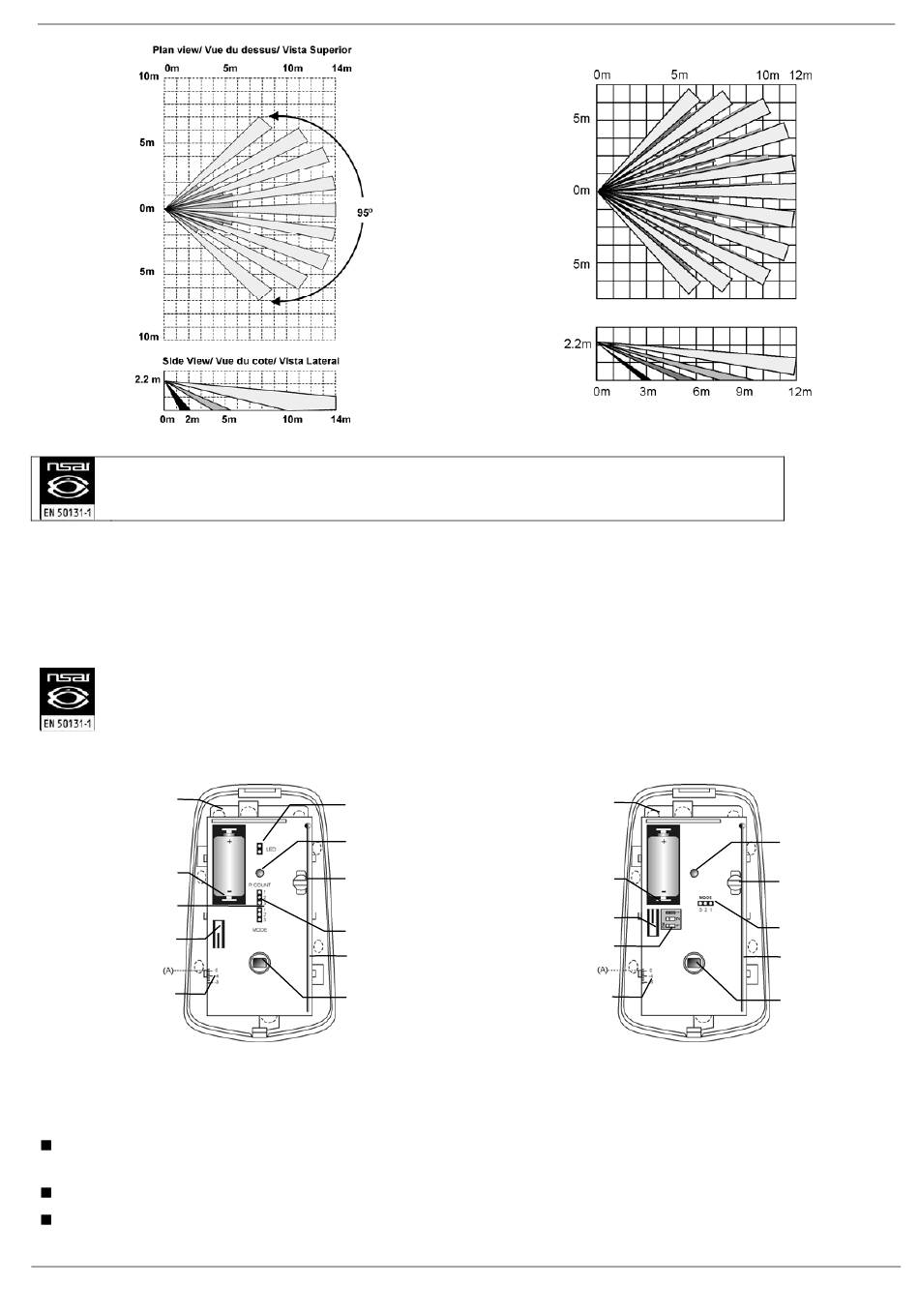

Figure B- 3: Lens Coverage Diagrams EL-2745 (left) and EL-2745PI (right)
EL-2745 complies with EN-50131 2-2 Grade 2 Class II Power Supply Type C

PIR Sensors (EL-2600/EL-2600PI/EL-2645/EL-2645PI)

The EL-2600, EL-2600PI, EL-2645 and EL-2645PI are intelligent wireless PIR sensors for use with the iConnect Control
System. All of these sensors implement a feature to combat the problem of multiple transmissions, which drastically
reduce the life of the batteries. After each transmission, there is a four-minute delay during which further transmissions
will not be sent. When batteries need replacing, the detector sends a low battery indication to the Control System.
Detectors that meet the EN-50131 standard, have a three-minute delay between
transmissions.
The EL-2600PI and EL-2645PI are designed for installations prone to nuisance alarms caused by pets or small animals.
Mounting
Hole
Battery
Holder
Mode
Jumper
Tamper
Switch
Vertical
Adjustment
Scale
Figure B- 4: PIR Sensors with Cover Removed – EL-2600/EL-
2600PI
Considerations Before Installation
Select a location from which the pattern of the detector is most likely to be crossed by a burglar, should
there be a break in.
Do not place bulky objects in front of the detector.
Avoid a location which comes in direct contact with radiators, heating/cooling ducts, mirrors and air
conditioners.
94
LED
Jumper
LED
Indicator
Easy
Lock
Pulse Count
Jumper
Antenna
Pyro
Sensor
Figure B- 5: PIR Sensors with Cover Removed – EL-2645/EL-
2645PI
Appendix B: Transmitter Installation
Plan View
Side View
Mounting
Hole
Battery
Holder
Tamper
Switch
DIP-
Switch
Vertical
Adjustment
Sc
