Magnetic Contact (El-2601) - Electronics Line 3000 iConnect Installation Manual

Appendix B: Transmitter Installation

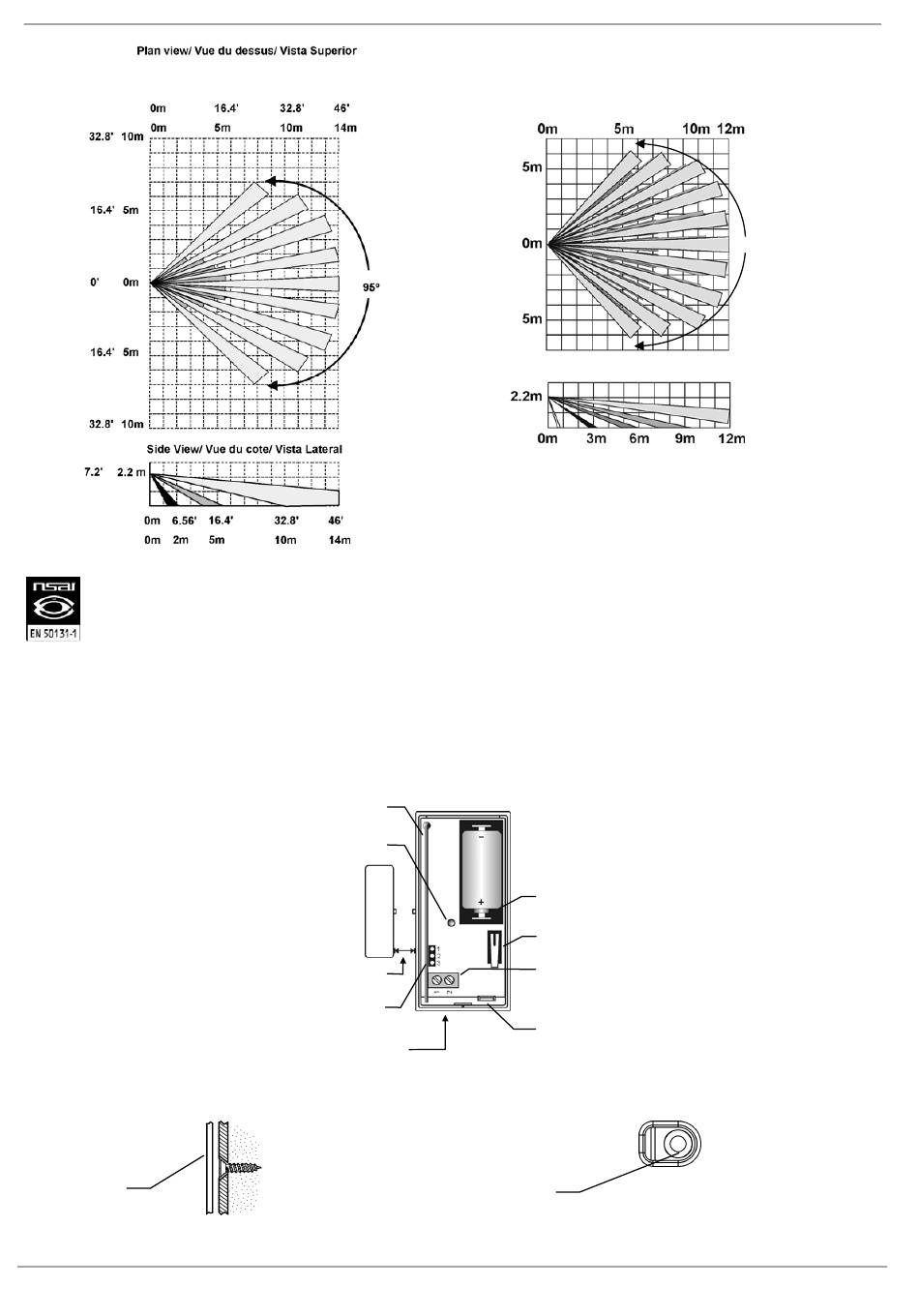

Figure B- 6: Lens Coverage Diagrams EL-2600/EL-2645 (left) and EL-2600PI/EL-2645PI (right)
EL-2645 complies with EN-50131 2-2 Grade 2 Class II Power Supply Type C

Magnetic Contact (EL-2601)

The EL-2601 is a magnetic contact designed for installation on doors and windows.
The EL-2601 implements a feature to combat the problem of multiple transmissions that drastically reduce the life of the
batteries. After each detection, the sensor initiates a three-minute delay during which transmissions will not be sent. When
batteries need replacing, the EL-2601 sends a low battery indication to the Control System.
Figure B- 7: EL-2601 (Cover Off)
PCB
Figure B- 8: Mounting Screw Position
iConnect Installation Manual
Antenna
LED
Indicator
1cm max.
Operation
Mode Jumper
Location
of wiring
knockout
Rear tamper
mounting hole
Figure B- 9: Rear Tamper Release
Plan View/ Vue du dessus
Side View/ Vue du côté
Battery
Holder
Tamper
Switch
Loop
Terminals
PCB
Release
Tab
95º
