1 Introduction
Systems operated by Battery: 6-8V, 100mA
maximum)
6. Programmable relay output (100mA max. load)
7. hardwire zone (Zone 33)
8. Status LED
9. Interphone module connector
10. Flash programming connector for main board
1.4.2. Wired Zone Module
The Wired Zone Module is a peripheral add-on module that provides eight hardwire zones to the Control System.
iConnect Control System supports one Wired Zone Module providing 8 hardwire zones (the zone range is 1 – 8). Wired
Zone Module is powered by its own separate power supply. Wired Zone Module is located in its own metal housing
equipped with a tamper.

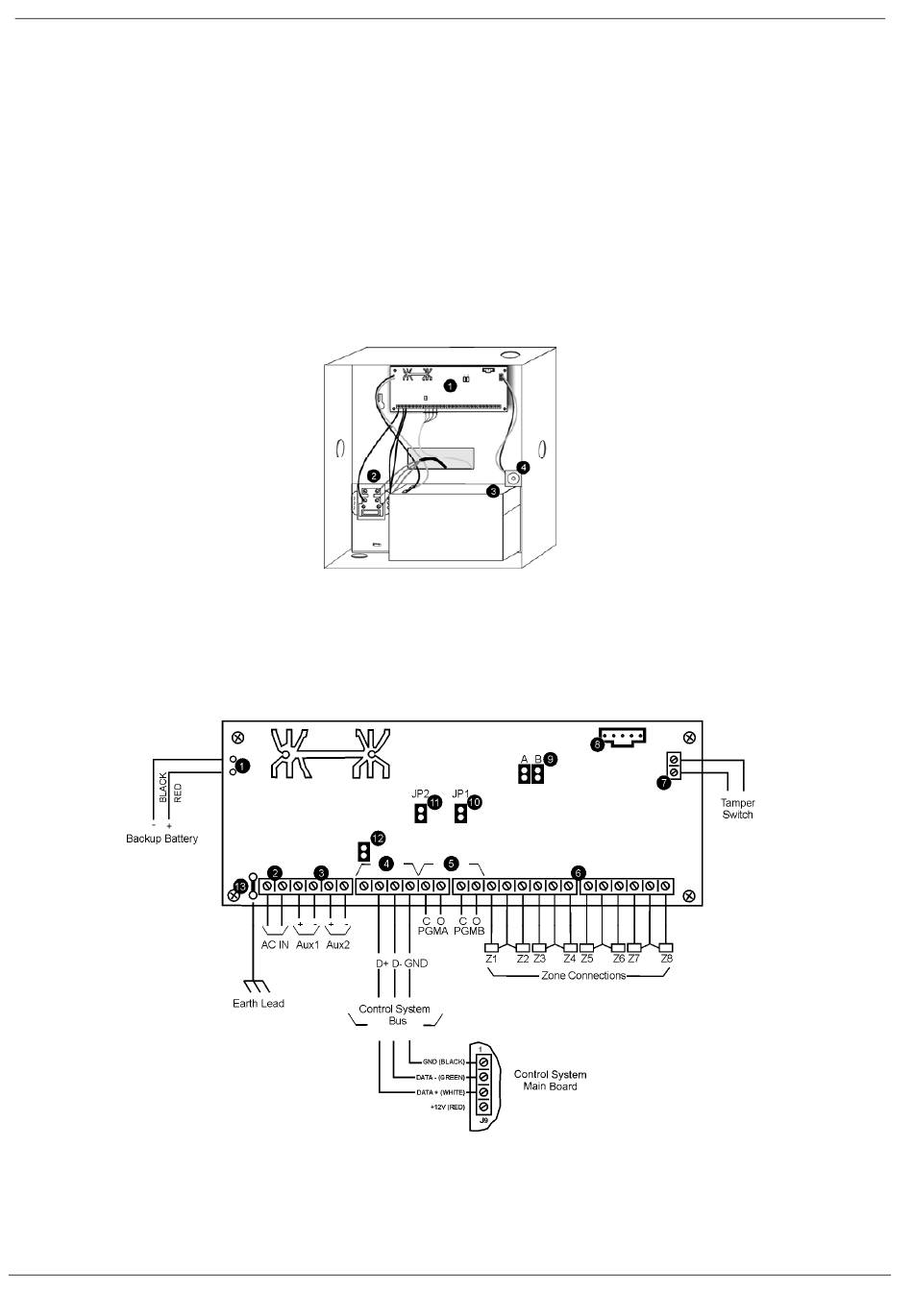

Figure 1-4: Wired Zone Module Layout
1. Wired Zone Module
2. AC Transformer
3. Backup battery
4. Metal cabinet tamper switch
Figure 1-5: Wired Zone Module
1. Backup battery leads
2. 15VAC power input (by the AC transformer)
3. Auxiliary outputs for powering detection devices (AC operated: 14VDC; battery operated: 10.5-13VDC; 400mA
max.)
iConnect Installation Manual
16. AC power terminal block
17. Home Automation module terminal block
18. AC power protection fuse
19. Backup battery protection fuse
20. Not Used
21. Backup battery connector
22. Additional backup battery connector
