Front Panel Layout (Led Top Cover) - Electronics Line 3000 iConnect Installation Manual

3 Basic System Operation
Partitioned systems
Item...
DISARMED
SYSTEM ARMED
PART 1 ARMED
PART 2 ARMED
SYSTEM ARMING
PART 1 ARMING
PART 2 ARMING
Table 3-5: Armed Status – Partitioned Systems
Item
ZONES IN ALARM
TAMPER ALARM
56 TO EXIT
11 TO DISARM
SYSTEM NOT
READY
KEYPAD LOCKED
SYSTEM TROUBLE
Table 3-6: System Status
3.5.

Front Panel Layout (LED Top Cover)

As the name suggests, the LED Top Cover uses only LEDs to inform you of the Control System status. In addition to
System Status LEDs (OK and "!"), there are three Arming Status LEDS: full, part/partition 1, and perimeter/partition 2.
The three-button keypad allows you to make a service call, record and play an audio message, and to activate an SOS
panic alarm.
Arming Status
LEDs
Service Call
Button
Message
Play Button

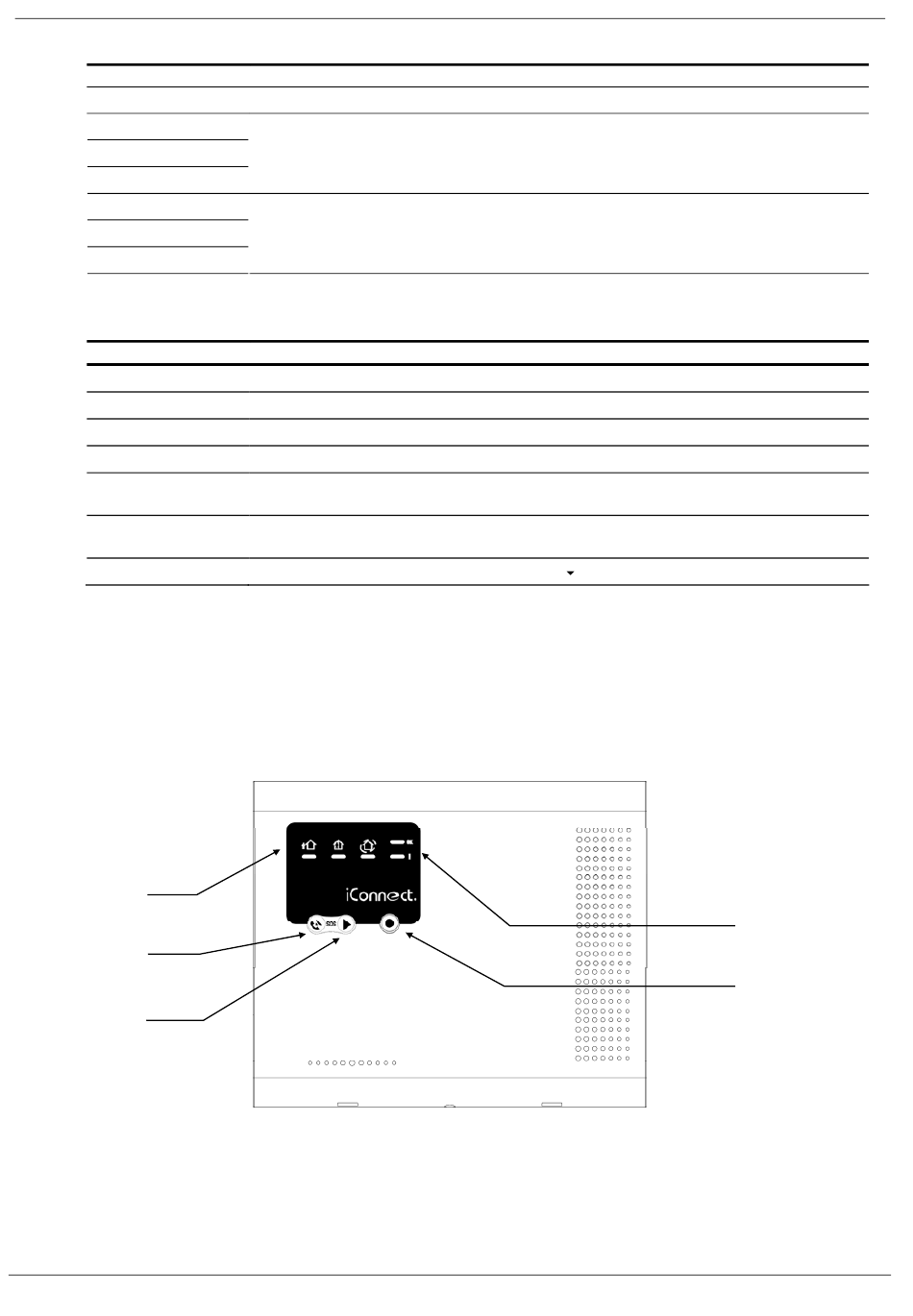

Figure 3-4: LED Top Cover
iConnect Installation Manual
Description...
The system is disarmed.
The system has been armed using the displayed arming method.
The system is in the process of arming (displayed during exit delay).
Description
Zones have been violated.
The system has been tampered with.
The exit delay is counting down (56 seconds remaining).
The entry delay is counting down (11 seconds remaining).
The system is not ready to arm, check that all doors and windows are closed.
Five unsuccessful attempts were made to enter a user code, the keypad is locked for 30
minutes.
A trouble condition has been detected, press for further details.
System
Status
LEDs
Message
Record
Button
