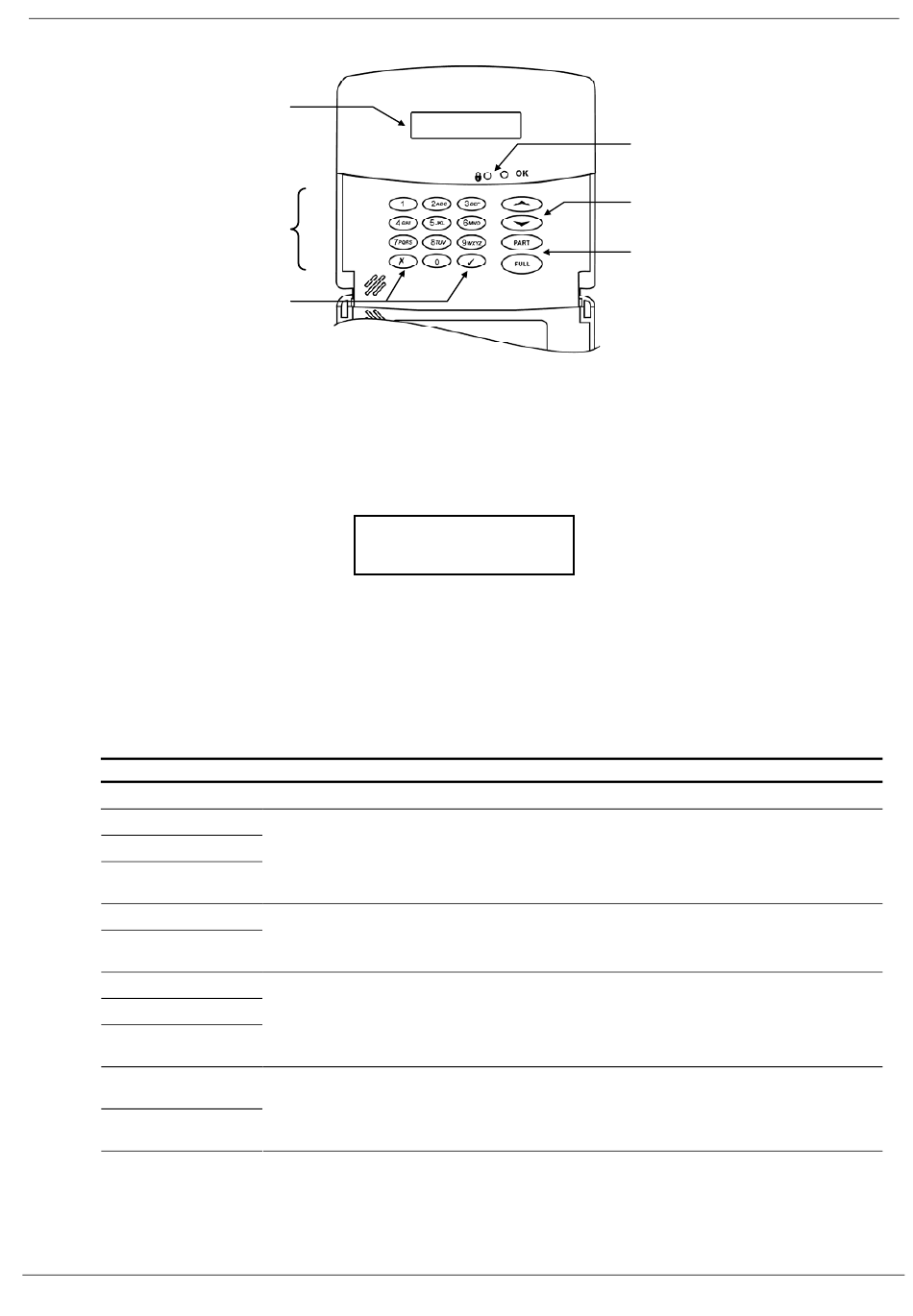

Figure 3-2 shows the layout of the hardwire LCD keypad:
Figure 3-2: Hardwire LCD keypad
3.4.

LCD Display

The LCD display provides you with a detailed interface for operation and programming.
Figure 3-3: Typical Standby Display
3.4.1. Standby Mode
Standby mode can be defined as the state the system is in when it is disarmed and not in Menu mode. In Standby
mode, the armed status, system status or banner are displayed. If system status is normal, the current time is displayed.
Unpartitioned systems
Item...
DISARMED
FULL ARMED
PART ARMED
PERIMETER
ARMED
PART ARMED INST
PERIM ARMED
INST
FULL ARMING
PART ARMING
PERIMETER
ARMING
PART ARMING
INST
PERIM ARMING
INST
Table 3-4: Armed Status – Unpartitioned Systems
18
LCD
Display
Alphanumeric
Keypad
Menu
Navigation
Keys
Description...
The system is disarmed.
The system has been armed using the displayed arming method.
The system has been armed using the displayed arming method with the Instant arm
feature activated.
The system is in the process of arming (displayed during exit delay).
The system is in the process of arming with the Instant arm feature activated.
DISARMED
11:22:08
3 Basic System Operation
System
Status
LEDs
Menu
Navigation
Keys
Arming
Keys
