Appendix B: Transmitter Installation
Areas to avoid:
• Glass airlocks and glass vestibule areas
• Noisy kitchens
• Residential car garages
• Small utility rooms
• Stairwells
For glass break protection in such applications, use shock sensors on the windows or window frames connected to an
EL-2602 universal transmitter.
Installation Procedure

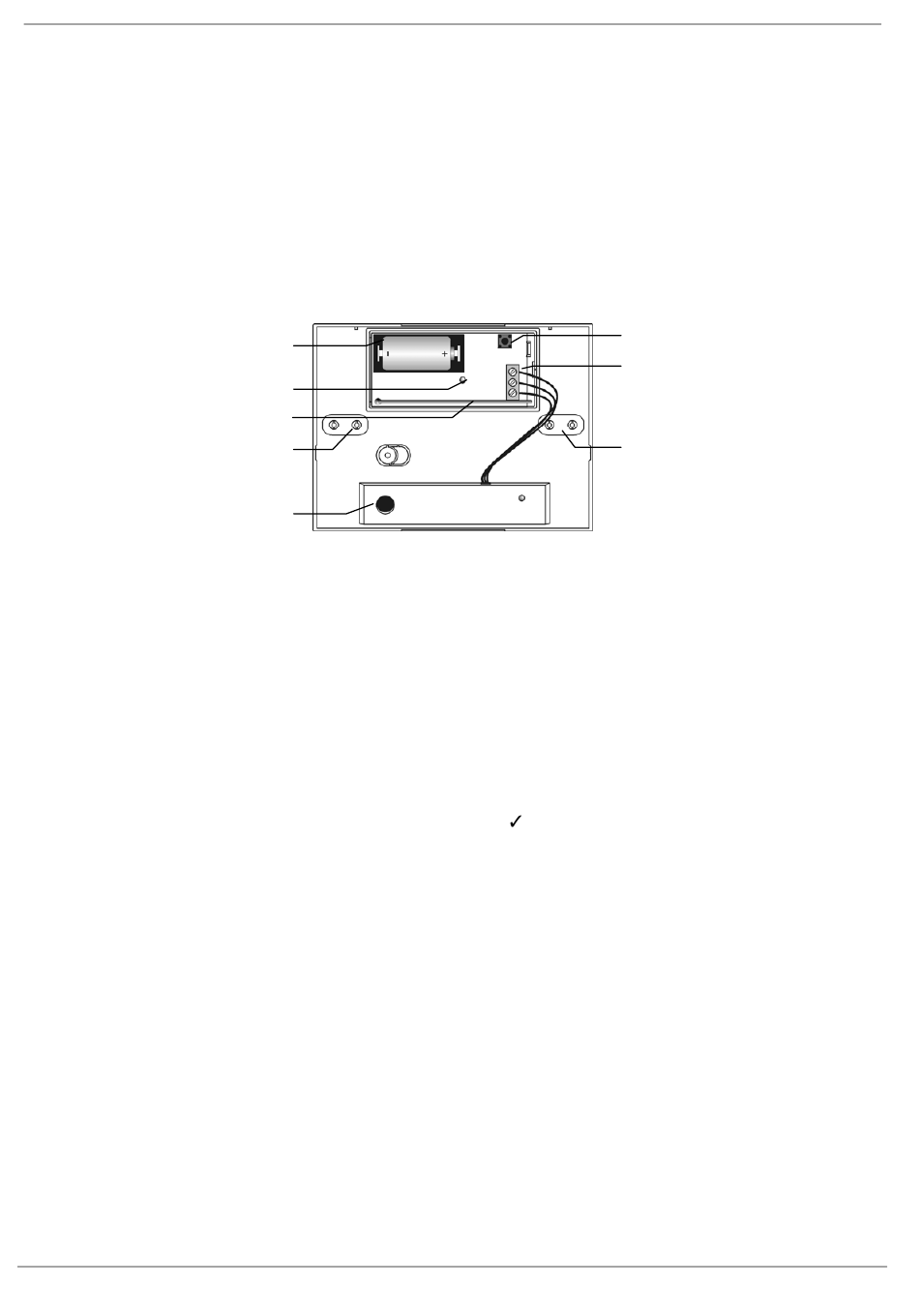

Figure B- 12: EL-2606 (Cover Off)
1. Open the housing using a small flat-head screwdriver to separate the base from the cover.
2. Remove the insulator separating the battery from the contacts on the battery holder. When you apply
power and the Tamper switch is open, the EL-2606 enters Test mode during which a transmission is
sent every few seconds. You can terminate Test mode by closing the Tamper switch. Test mode is
automatically terminated after approximately five minutes.
Note: Note: Due to the occurrence of voltage delay in lithium batteries that have been in storage, the batteries
may initially appear to be dead. In this case, leave the unit in Test mode for a few minutes until the
battery voltage level is stabilized.
3. From the Programming menu, select Devices, Zones [911].
4. Select the zone to which you want to register the transmitter; the system initiates Registration mode. When
Save? appears on the Control System's LCD display, press .
5. After registration, press the EL-2606's tamper switch to terminate Test mode.
6. Choose a suitable mounting location according to the guidelines in the previous section.
7. Before permanently mounting the unit, test the acoustic sensor and the transmitter from the exact
mounting position. For further information on testing the acoustic sensor, refer to the following section,
Testing Procedures.
8. Knock out the required mounting holes on the back cover.
9. Mount the unit to the wall using the mounting screws provided.
10. Write the number of the zone on the sticker provided and affix the sticker inside the front cover for
future reference.
11. Close the front cover making sure that it snaps shut.
Testing Procedure
The Pattern Recognition Technology™ of the EL-2606 ignores most of the sounds that could cause a false alarm
(including glass-break testers). In order to test the EL-2606, you must set the unit to Test mode. In Test mode,
processing of the upper and lower frequencies is disabled. This means that the EL-2606 is only listening for mid-
range frequencies reproduced by the glassbreak tester. It's these mid-range frequencies that determine the sensor's
range.
Note: In Normal mode, the tester will not activate the sensor unless held directly over the sensor.
iConnect Installation Manual
Battery
Holder
LED
Indicator
Antenna
Mounting
Knockout
Acoustic
Sensor
• Small bathrooms
• Other small acoustically live rooms
Tamper
Switch
Terminal
Block
Mounting
Knockout
