To program the CPID:
1.
Press
.
2.
Enter your Installer code.
3.
Enter [9573] (Programming, Communications, Internet, CPID).
4.
Enter an ID using the alphanumeric keypad. The ID length must be six up to sixteen characters. The ID must
begin with a letter.
5.
Press
.
To program the Control System's password:
1.
Press
.
2.
Enter your Installer code.
3.
Enter [9574] (Programming, Communications, Internet, CP Password).
4.
Enter a password using the alphanumeric keypad.
The password length must be six up to sixteen characters. The password must begin with a letter.
5.
Press
.
2.2.6.
Step 6 – Installing the Control System and Transmitters
Having chosen and tested the mounting location of the Control System and each transmitter, you are now ready to
permanently install the system.
To permanently install the transmitters, refer to each device's installation instructions (in Appendix B of this manual or
supplied individually with each product).
To install the Control System:
1.
Disconnect AC power from the Control System.
2.
Open the housing as explained in Step 1 – Opening the Housing.
3.
Remove the backup battery pack. If you want to install the Control System with back tamper, it is also
necessary to disconnect the flat cable connecting the Main board to the front panel keypad and remove
the Main board. Figure 2-5 shows the Control System with the Main board and the battery pack removed.
Upper
Mounting
Hole
Lower
Mounting
Hole

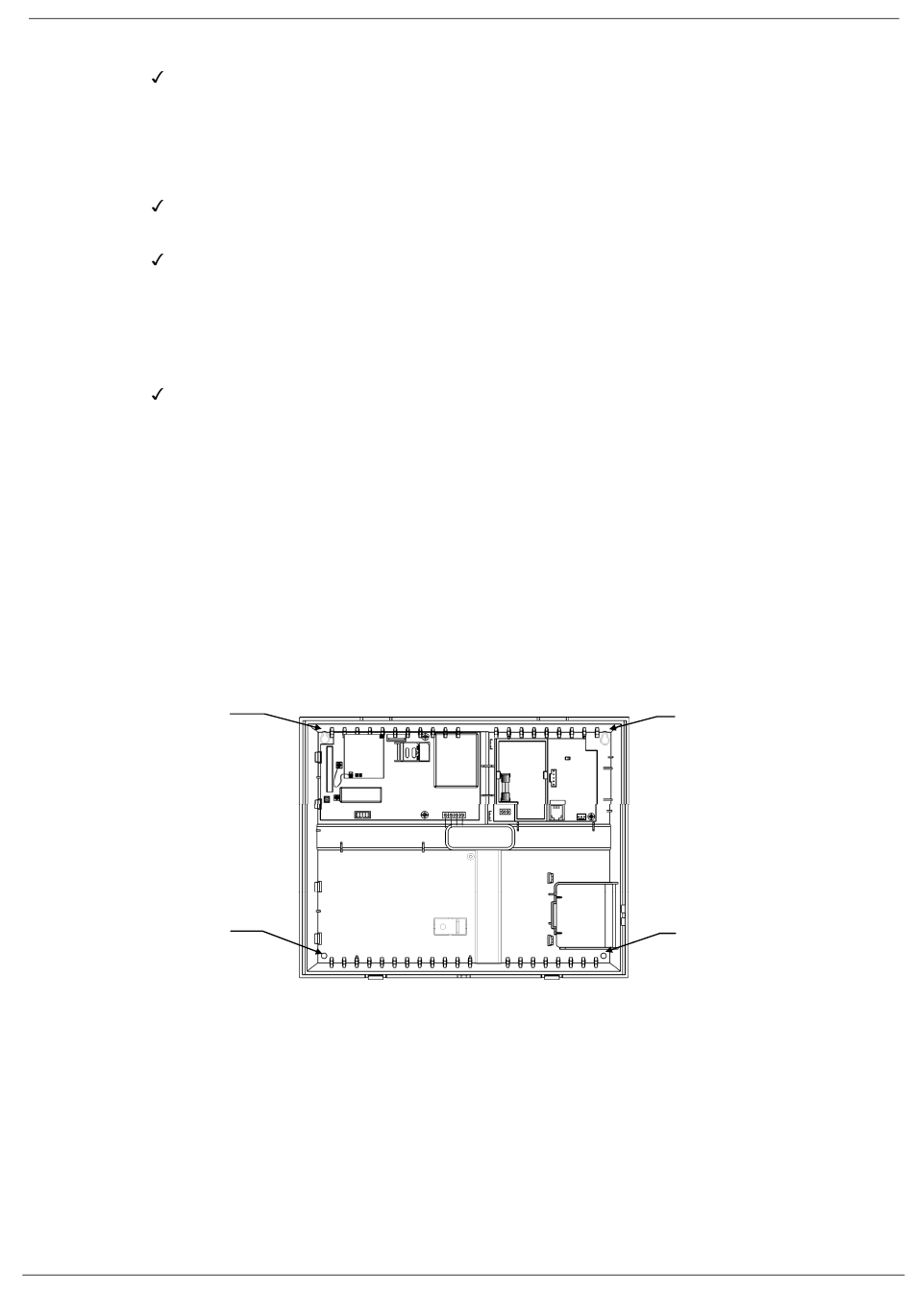

Figure 2-5: Back Cover (Main Board and Battery Pack removed)
4.
Place the Control System in position against the wall and mark the upper and lower mounting holes. If
using the back tamper, also mark the hole for the back tamper screw.
5.
Install wall anchors in the appropriate positions.
6.
Thread any required cables through the wiring hole on the back cover (e.g. AC power, HA interface,
Ethernet cable, and telephone line) and make any necessary wiring connections:
a.
Connect the power cable to the AC power input on the Main board – see p. 4, 1.4.1 The Main
Board.
Caution: High voltage! Be careful not to touch the power cable since connected!
12
2 System Installation
Upper
Mounting
Hole
Lower
Mounting
Hole
