Appendix B: Transmitter Installation

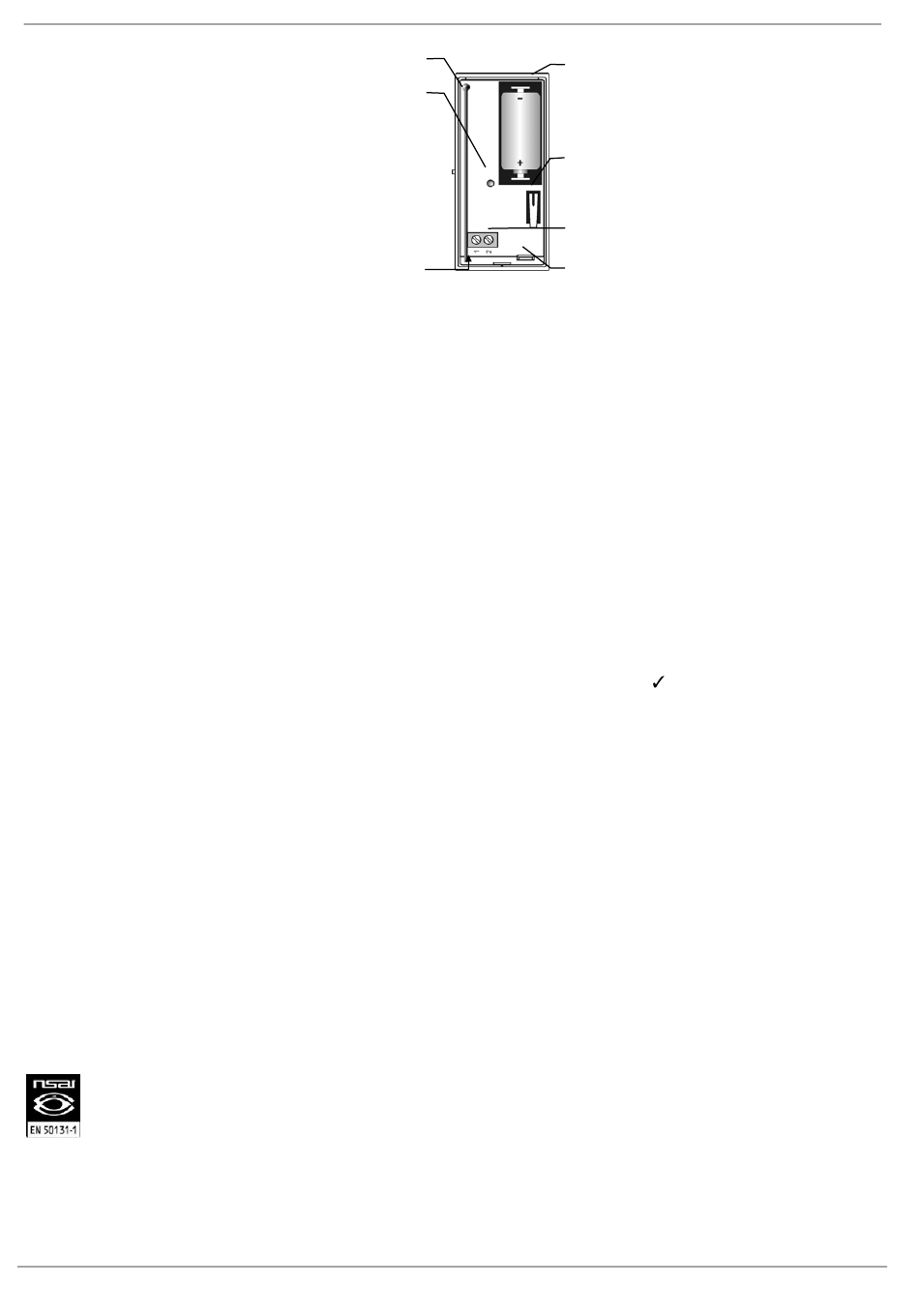

Figure B- 10: EL-2602 (Cover Off)
Installation Procedure
To install universal transmitters:
1. To open the housing, insert a small screwdriver at the bottom of the unit between the front and back
cover and twist the screwdriver to release the cover.
2. Remove the divider separating the battery from the contacts on the battery holder. When you apply power
and the Tamper switch is open, the EL-2602 enters Test mode during which a transmission is sent every
few seconds. You can terminate Test mode by closing the Tamper switch. Test mode is automatically
terminated after approximately five minutes.
Note: Due to the occurrence of voltage delay in lithium batteries that have been in storage, the batteries may
initially appear to be dead. In this case, leave the unit in Test mode for a few minutes until the battery
voltage level is stabilized.
3. From the Programming menu, select Devices, Zones [911].
4. Select the zone to which you want to register the transmitter; the system initiates Registration
mode. When Save? appears on the Control System's LCD display, press
5. After registration, press the EL-2602's tamper switch to terminate Test mode.
6. Before permanently mounting the unit, test the transmitter from the exact mounting position.
7. To remove the PCB, press the PCB release tab, carefully lift the board and slide the board away from
the back cover.
Caution: When handling the PCB, do not apply pressure on the antenna.
8. Knockout the wiring hole in the back cover.
9. Thread the wires through the wiring hole.
10. If using the rear tamper switch, insert a screw into the rear tamper mounting hole located in the center of
the back cover – see p.97 , Figure B- 9. When the detector is removed from the wall, the screw causes the
tamper release to break away from the back cover and the rear tamper switch is released.
11. Mount the back cover to the wall using two screws and replace the PCB. Use ISO 7050 (ST3.5 x 22), #6 X
¾ or similar countersunk screws so that the screw head will not touch the PCB – see p. 94, Figure B- 4.
12. Connect the terminal block as follows: 1 - Alarm; 2 - GND.
13. Test the transmitter, making certain that the LED is lit during transmissions.
14. Close the front cover of the EL-2602.
EL-2602 complies with EN-50131 2-6 Grade 2 Class II Power Supply Type C.
iConnect Installation Manual
Antenna
LED
Indicator
Location
of wiring
knockout
Battery
Holder
Tamper
Switch
Loop
Terminals
PCB
Release
Tab
.
