1 Introduction
Note: For external X10 PLI, we recommend to use the two-way TTL/CMOS interface such as XM10E module
connected to the HA module with an RJ11 cable wired as shown on Figure 1-9.

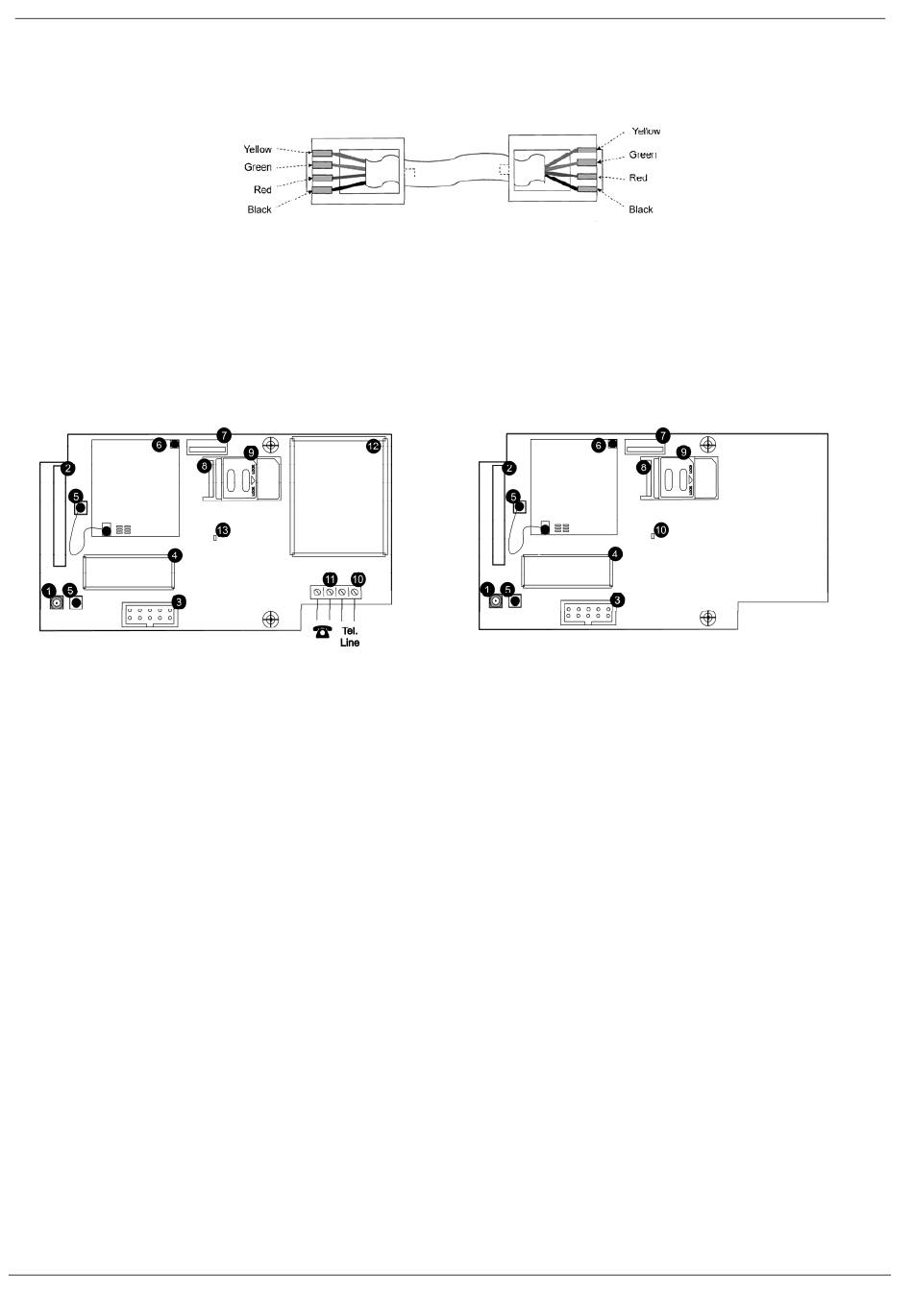

Figure 1-9: RJ11 wiring diagram
1.4.4. GPRS Communication Module
The GPRS Communication module enables the Control System to communicate to the WEB via cellular networks,
perform remote firmware update, send or receive SMS messages, and implement cellular 2-way audio communication.
This module also allows PSTN backup communication with event reporting, and Two-Way Audio (TWA) control.
GPRS Communication Module is also available without PSTN (see Figure 1-11).
Figure 1-10: GPRS Communication module
1. External antenna connector
2. Internal antenna
3. Flat cable interface connector to Main
Board
4. Metal cover
5. External and internal antenna RF
connectors to GPRS engine
6. GPRS engine
7. USB connector to PC firmware
management
8. SIM card holder
9. SIM card release
10. Telephone Line terminal block: incoming
line from telephone company
11. Telephone Line terminal block: outgoing
line to telephone
12. Metal Cover
13. Status LED
1.4.5. Ethernet module
The Ethernet module enables the Control System to communicate to the WEB via Ethernet, perform remote firmware
update, and implement PSTN backup communication with event reporting and Two-Way Audio (TWA) control.
Ethernet Communication Module is also available without PSTN (see Figure 1-13).
iConnect Installation Manual
Figure 1-11: GPRS-Only Communication module
1. External antenna connector
2. Internal antenna
3. Flat cable interface connector to Main Board
4. Metal cover
5. External and internal antenna RF connectors to
GPRS engine
6. GPRS engine
7. USB connector to PC firmware management
8. SIM card holder
9. SIM card release
10. Status LED
