3.

Basic System Operation

iConnect Control System is available in two front panel configurations: LED and LCD. Below you will find description
of the LCD front panel layout. For LED Top Cover layout see p. 19, 3.5 Front Panel Layout (LED Top Cover).
3.1.

Front Panel Layout (LCD Top Cover)

The LCD front panel provides a detailed interface for operating and programming the system. The following diagram
will familiarize you with the various elements on the front panel.
LCD
Display
Arming
Keys
Alpha-
numeric
Keypad

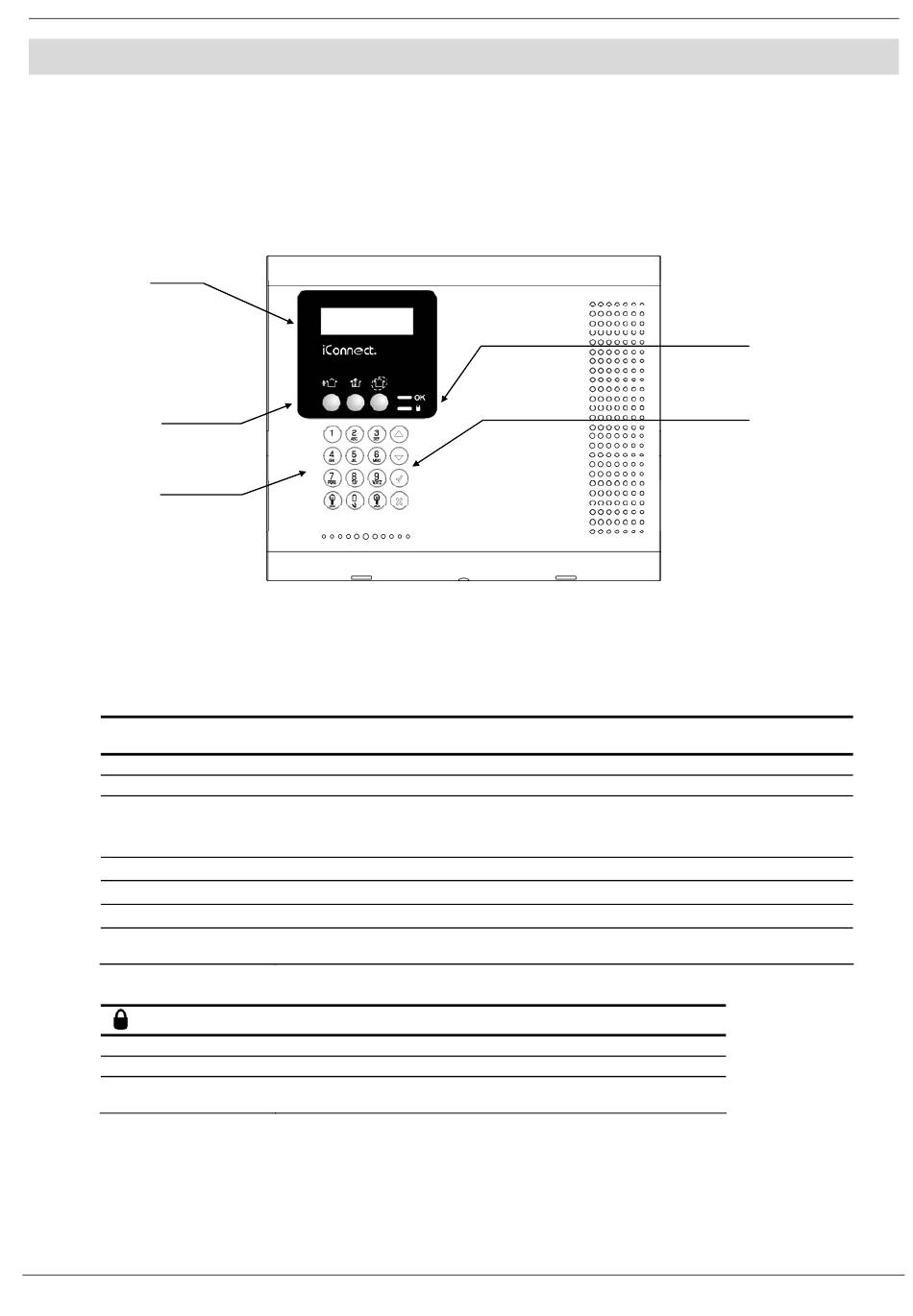

Figure 3-1: Front Panel
3.2.

Front Panel System Status LEDs (LCD Top Cover)

The two LEDs, OK and Arm Status, provide essential information on the status of the system.
OK
LED Status
Off
Green On
Green Flashing
Yellow On
Yellow Flashing (slow)
Yellow Flashing (fast)
Yellow Intermittent
On/Off
Table 3-1: OK LED Indication
LED Status
Off
Green On
Red Flashing
Table 3-2: Arm Status LED Indication
Note: Alarm indication is not displayed after a silent panic alarm.
16
Meaning
Both AC and Battery power are disconnected.
System Power Status is OK and there is System Trouble.
Open Zone. Check that the windows and doors are closed and no movement is
detected by the sensors within the protected area.
System Trouble.
Backup battery low or low battery from transmitters.
AC loss.
System Trouble in addition to AC loss/Low Battery.
Meaning
The system is disarmed.
The system is armed.
An alarm has occurred. Alarm indication is cleared the next time
you arm the system or view the relevant event in the event log.
.
3 Basic System Operation
System
Status
LEDs
Menu
Navigation
Keys
