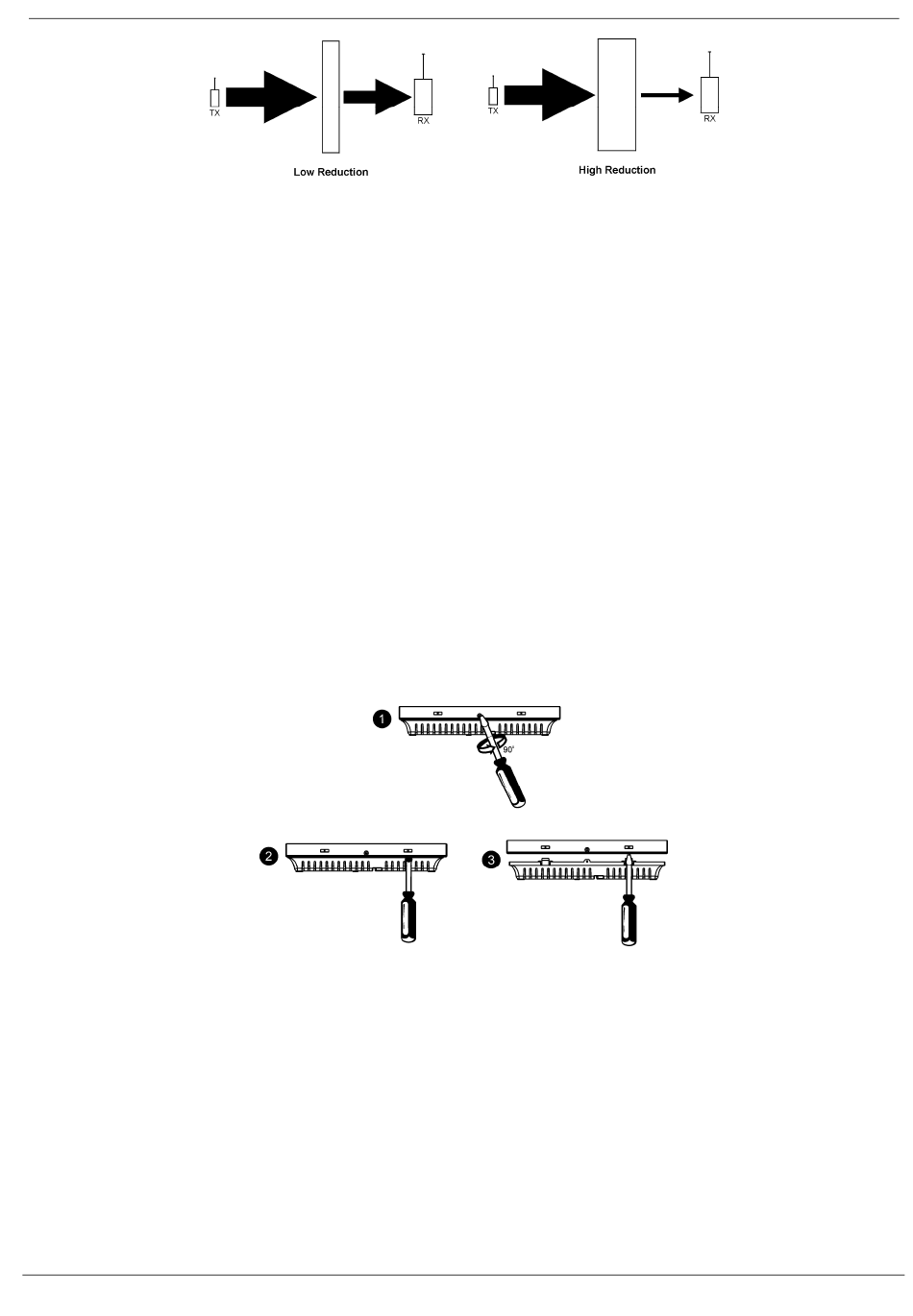

Figure 2-3: Considering Thickness of Obstacles
2.2.

Installation Procedure

After unpacking the kit and making certain that you have all the necessary equipment, it is recommended that you
install the system as follows:
STEP 1: Open the housing.
STEP 2: Temporarily power up the system.
STEP 3: Register the transmitters.
STEP 4: Test the chosen mounting location.
STEP 5: Program the relevant Internet options.
STEP 6: Permanently install the Control System and transmitters.
2.2.1. Step 1 – Opening the Housing
To open the housing:
1. Remove the housing screw located at the bottom of the front cover as shown in Figure 2-4.
2. Insert a screwdriver between the front and back panels of the housing, carefully twist it to release the
tabs.
3. Lift the front cover away from the back of the housing. You will notice that the front cover is attached
to the back with two fastening bands and the hardwire LCD keypad's flat cable.
Figure 2-4: Opening the Housing
2.2.2. Step 2 – Powering Up the System
In order to register and test transmitters, it is necessary to temporarily power up the system before installing the
Control System. At this stage, do not connect the backup battery.
Thread the power cable through the wiring hole on the back cover and connect the cable to the AC power input on the
Main board. For the exact location of the AC power input, see p. 4, 1.4.1 The Main Board. Close the front cover and
apply AC power. At this stage, ignore any trouble conditions that may appear on the LCD display (e.g. Low Battery).
2.2.3. Step 3 – Registering Transmitters
For the Control System to recognize a device, its transmitter must be registered. In general terms, transmitter
registration means sending two transmissions from a device when the Control System is in Registration mode.
